Nexperia PHPT60610PYX Transistor, -10 A PNP, -60 V, 5-Pin SOT-669
- RS庫存編號:
- 151-3076
- 製造零件編號:
- PHPT60610PYX
- 製造商:
- Nexperia

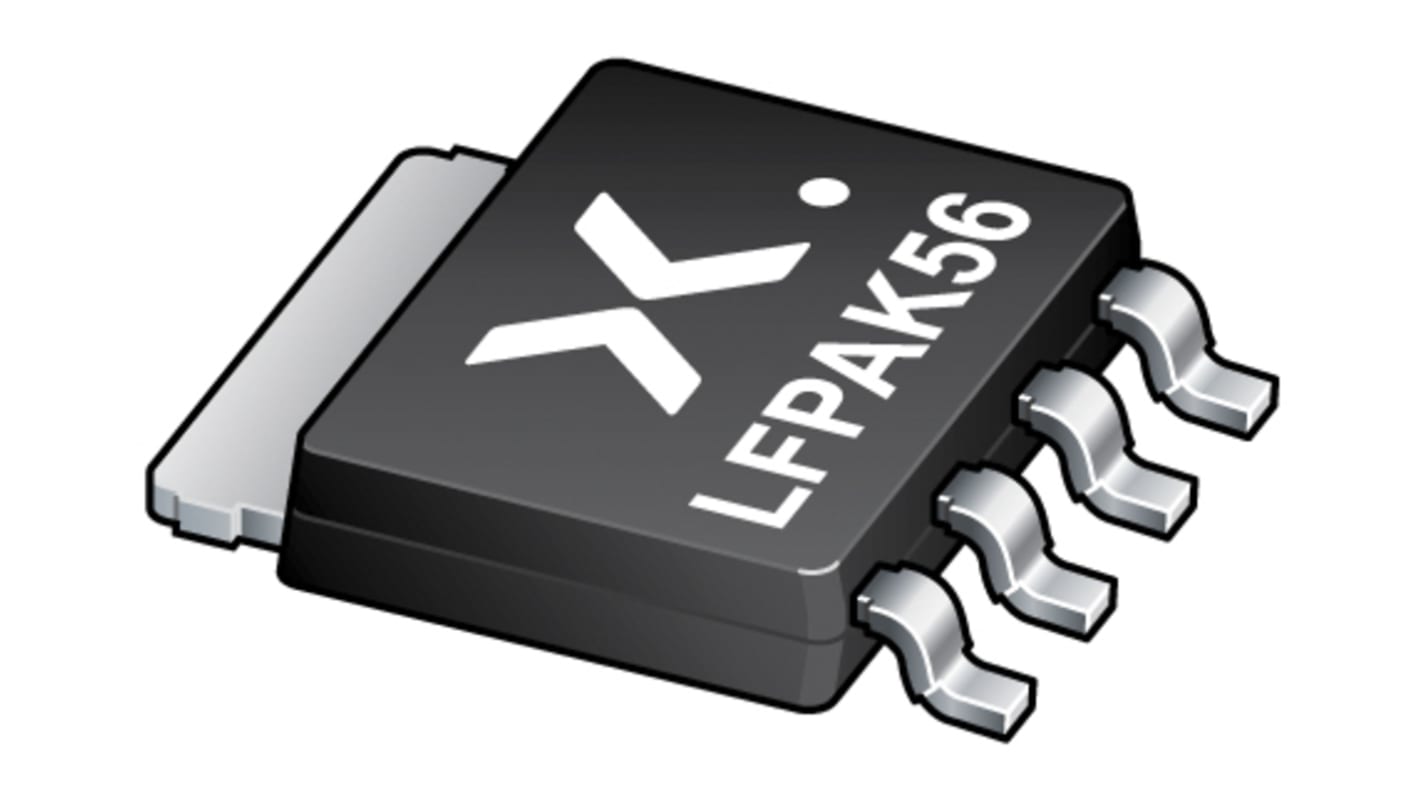

此圖片僅供參考,請參閲產品詳細資訊及規格
享受批量購買折扣
額外添加3000件可節省TWD900.00
查看批量定價選項小計(1 卷,共 1500 件)*
TWD18,000.00
(不含稅)
TWD18,900.00
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2027年2月15日 發貨
**需要更多嗎?**輸入您需要的數量,然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* | 節省 |
|---|---|---|---|
| 1500 - 1500 | TWD12.00 | TWD18,000.00 | - |
| 3000 + | TWD11.70 | TWD17,550.00 | TWD900.00 |
* 參考價格
- RS庫存編號:
- 151-3076
- 製造零件編號:
- PHPT60610PYX
- 製造商:
- Nexperia
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Nexperia | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -10A | |
| Maximum Collector Emitter Voltage Vceo | -60V | |
| Package Type | SOT-669 | |
| Mount Type | Surface | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -60V | |
| Maximum Transition Frequency ft | 85MHz | |
| Minimum Operating Temperature | -55°C | |
| Maximum Emitter Base Voltage VEBO | -8V | |
| Maximum Power Dissipation Pd | 25W | |
| Transistor Polarity | PNP | |
| Minimum DC Current Gain hFE | 120 | |
| Pin Count | 5 | |
| Maximum Operating Temperature | 175°C | |
| Length | 5mm | |
| Height | 1.05mm | |
| Width | 4.1mm | |
| Standards/Approvals | No | |
| Series | PHPT60610PYX | |
| Automotive Standard | AEC-Q101 | |
| 選取全部 | ||
|---|---|---|
品牌 Nexperia | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -10A | ||
Maximum Collector Emitter Voltage Vceo -60V | ||
Package Type SOT-669 | ||
Mount Type Surface | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -60V | ||
Maximum Transition Frequency ft 85MHz | ||
Minimum Operating Temperature -55°C | ||
Maximum Emitter Base Voltage VEBO -8V | ||
Maximum Power Dissipation Pd 25W | ||
Transistor Polarity PNP | ||
Minimum DC Current Gain hFE 120 | ||
Pin Count 5 | ||
Maximum Operating Temperature 175°C | ||
Length 5mm | ||
Height 1.05mm | ||
Width 4.1mm | ||
Standards/Approvals No | ||
Series PHPT60610PYX | ||
Automotive Standard AEC-Q101 | ||
60 V, 10 A PNP high power bipolar transistor, PNP high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package. NPN complement PHPT60610NY
High thermal power dissipation capability
High temperature applications up to 175 °C
Reduced Printed Circuit Board (PCB) requirements comparing to transistors in DPAK
High energy efficiency due to less heat generation
AEC-Q101 qualified.
