Staubli Black Female Banana Socket, 2mm Connector, 10A, 600V, Gold Plating
- RS庫存編號:
- 225-6356
- 製造零件編號:
- 65.9194-21
- 製造商:
- Staubli
105 現貨庫存，可於6工作日發貨。
單價（不含稅） 個 (每包:5個)
TWD178.40
(不含稅)
TWD187.32
(含稅)
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 45 | TWD178.40 | TWD892.00 |
| 50 - 95 | TWD171.80 | TWD859.00 |
| 100 + | TWD169.60 | TWD848.00 |
* 參考價格
- RS庫存編號:
- 225-6356
- 製造零件編號:
- 65.9194-21
- 製造商:
- Staubli
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

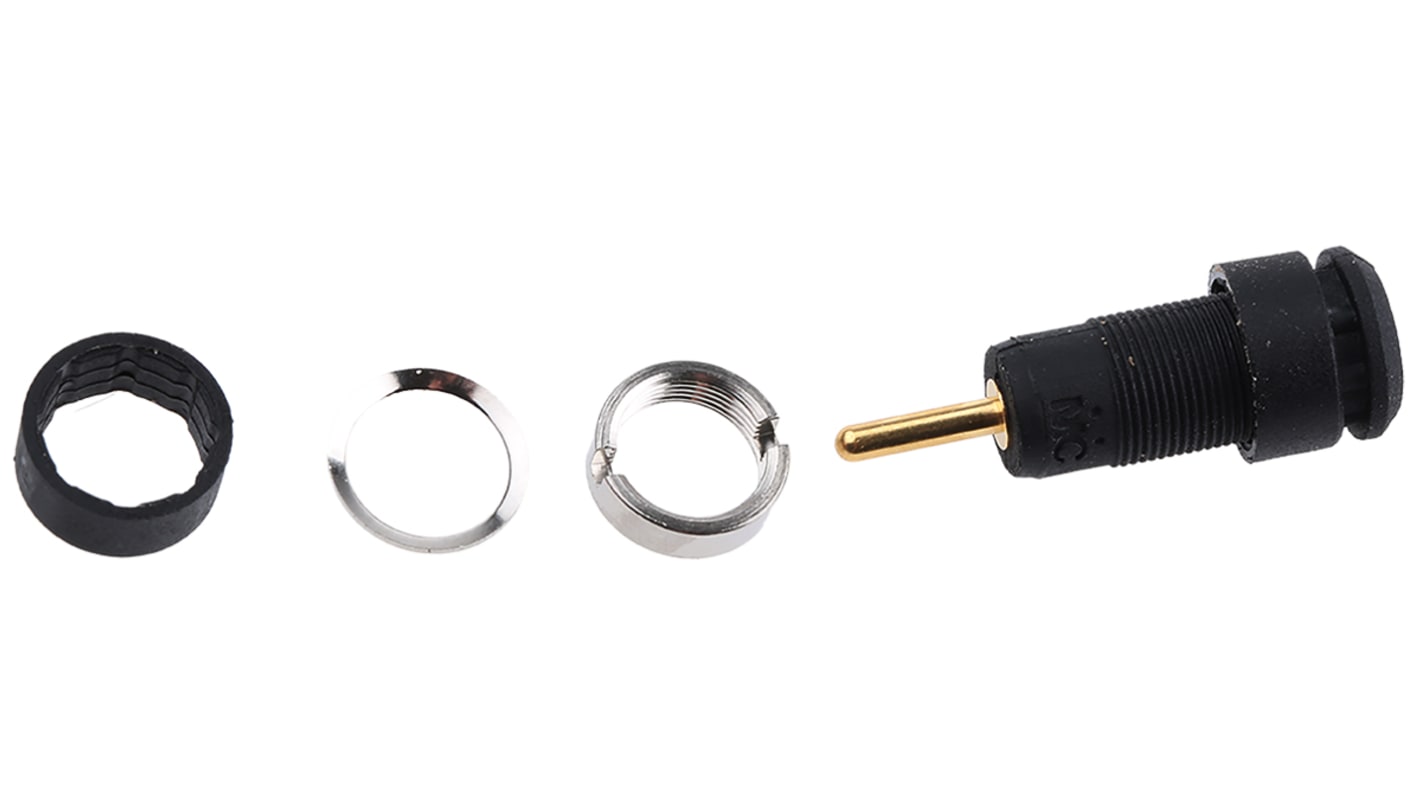

Panel Socket
From Multi-Contact, these fully insulated panel sockets accept shrouded or non-shrouded 2mm plugs. The panel sockets have a spacing sleeve which can be positioned on top of the panel to make the socket stand proud or behind where the panel thickness is less than 5mm. The sleeve may be discarded so that panels of up to 9mm are compatible.
Features and Benefits:
• Suitable for push fit if the nut and spacer sleeve are removed.
• Locking nut is included.
• Connecting terminal is a 1.9mm diameter pin.
• Rated to 600V & 10A CAT III.
• Locking nut is included.
• Connecting terminal is a 1.9mm diameter pin.
• Rated to 600V & 10A CAT III.
Standards
IEC1010-2-031
規格
屬性 | 值 |
|---|---|
| Colour | Black |
| Gender | Female |
| Voltage Rating | 600V |
| Current Rating | 10A |
| Connector Size | 2mm |
| Contact Plating | Gold |
| Length | 29mm |
| Contact Material | Brass |
| Type | Banana Socket |
