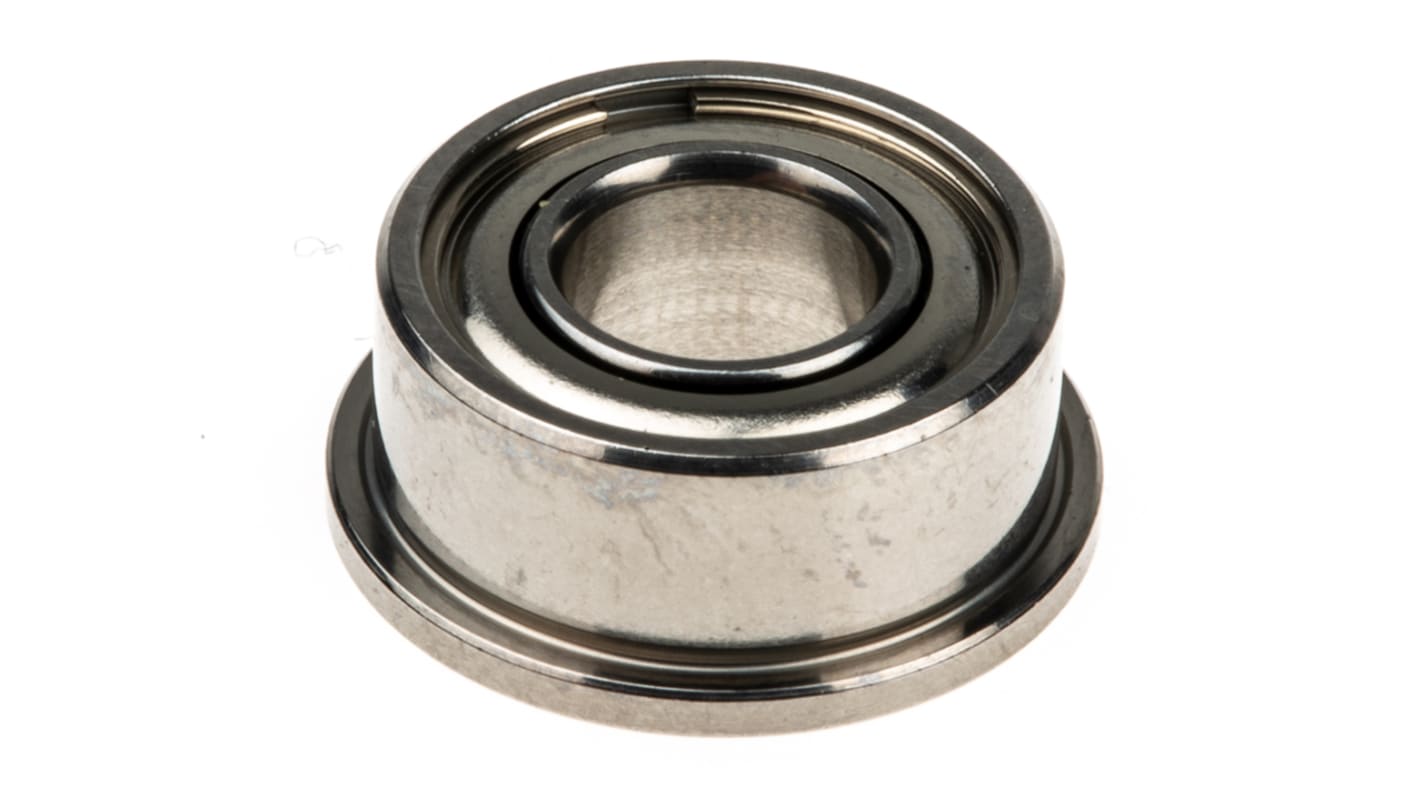

NMB DDLF1150ZZRA5P24LY121 Double Row Deep Groove Ball Bearing- Both Sides Shielded 5mm I.D, 11mm O.D
- RS庫存編號:
- 540-277
- 製造零件編號:
- DDLF1150ZZRA5P24LY121
- 製造商:
- NMB
444 現貨庫存，可於6工作日發貨。
單價（不含稅） 個 (每包:2個)
TWD279.00
(不含稅)
TWD292.95
(含稅)
單位 | 每單位 | 每包* |
|---|---|---|
| 2 - 10 | TWD279.00 | TWD558.00 |
| 12 - 48 | TWD268.00 | TWD536.00 |
| 50 + | TWD257.00 | TWD514.00 |
* 參考價格
- RS庫存編號:
- 540-277
- 製造零件編號:
- DDLF1150ZZRA5P24LY121
- 製造商:
- NMB
法例與合規
產品詳細資訊
Metric & Imperial Bearings - ABEC 5
NMB metric and imperial bearings manufactured to ABEC 5. The bearings are suitable for use with precision instruments, chart recorders, etc. Manufactured from corrosion-resistant steel, the bearings are available in two designs: plain and flanged. The metric and imperial bearings incorporate double metallic protection shields, and the metric plain bearings are also available in Chromium Steel.
規格
屬性 | 值 |
|---|---|
| Inside Diameter | 5mm |
| Outside Diameter | 11mm |
| Race Width | 5mm |
| Ball Bearing Type | Double Row Deep Groove Ball Bearing |
| Sealing Arrangement | Both Sides Shielded |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Stainless Steel |
| Cage Material | Steel |
| Number of Rows | 1 |
| Static Load Rating | 276kN |
| Dynamic Load Rating | 714N |
| Bore Type | Parallel |
| Flange Outside Diameter | 12.5mm |
| Partial Bearing Code | DDLF1150ZZ |
| Race Type | Flanged |
| Race Material | Martensitic Stainless Steel |
