STMicroelectronics STEVAL-2STPD01, USB Type-C Power Delivery Eval Board Evaluation Board for NUCLEO-G071RB STM32

查看所有Analogue Development Tools
可享批量折扣

小計（1 件）*

TWD5,358.00

(不含稅)

TWD5,625.90

(含稅)

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 1 個，準備發貨
單位
每單位
1 - 1TWD5,358.00
2 +TWD5,354.00

* 參考價格

RS庫存編號:
235-8206
製造零件編號:
STEVAL-2STPD01
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Kit Classification

Evaluation Board

For Use With

NUCLEO-G071RB STM32 Development Board

Featured Device

STM32G071RBT6, STPD01PUR

Kit Name

USB Type-C Power Delivery Eval Board

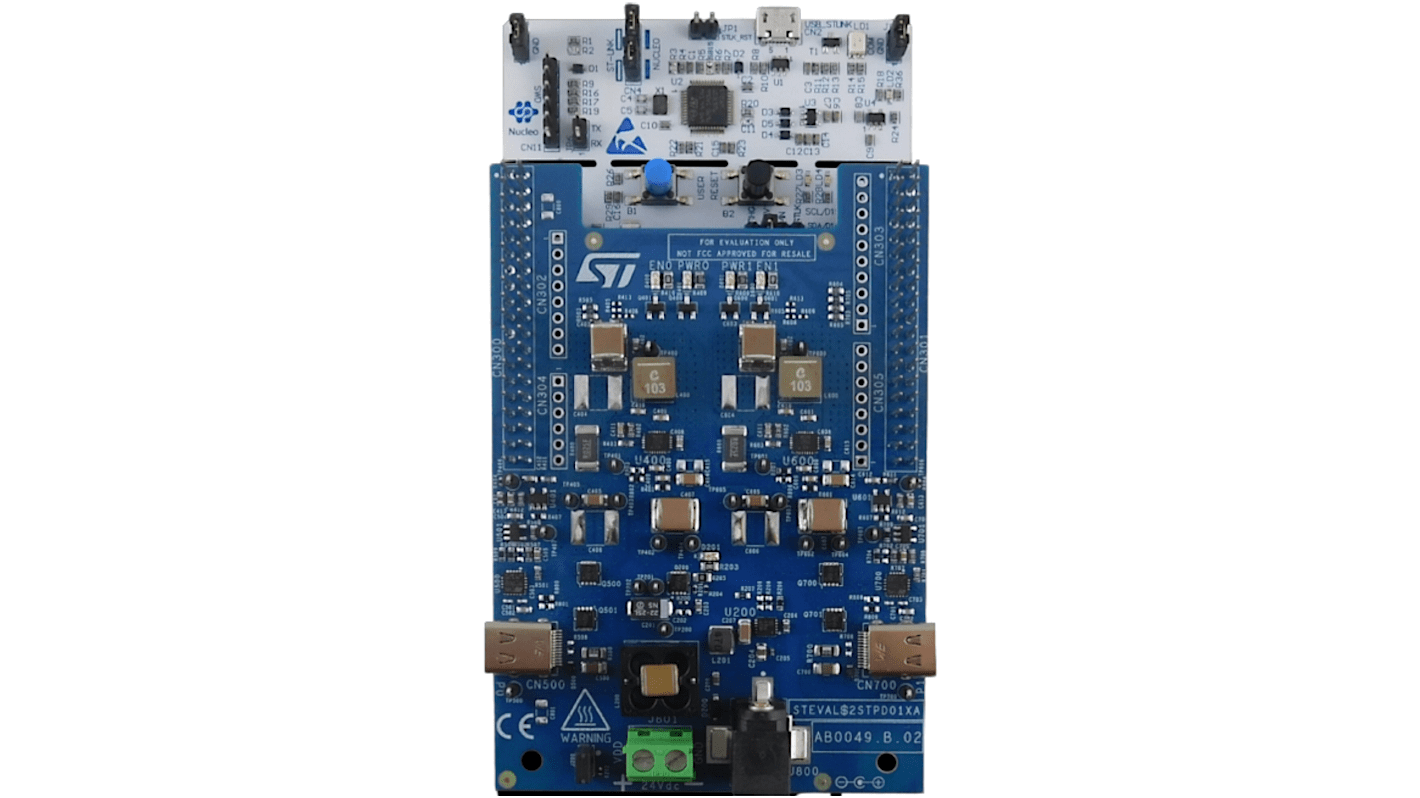

The STMicroelectronics evaluation kit composed of an expansion board containing two type-C ports and integrating two STPD01PUR programmable buck converters for USB power delivery, and the NUCLEO-G071RB STM32 Nucleo-64 development board. The kit exploits the characteristics of the STPD01PUR programmable buck regulator controlled through I²C interface, and the UCPD peripheral embedded in the STM32G071RBT6 microcontroller supported by a dedicated firmware stack to implement a USB Type-C and PD dual port source adapter with power sharing capability.

Two USB type-C and power delivery source ports
Up to four output PDOs for each port
Compliant with USB type-C 2.1 and PD 3.1 specifications
OVP, UVP, OC, short-circuit and OTP protections
System level ESD protection on CC lines as per IEC61000-4-2 level 4

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
