Huco Universal Joint 103.16.3131, Single, Plain, Bore 3/8 x 3/8in, 67.6mm Length
- RS庫存編號:
- 689-057
- 製造零件編號:
- 103.16.3131
- 製造商:
- Huco
10 現貨庫存，可於6工作日發貨。
已增加
單價（不含稅） 個 (每包:2個)
TWD1,217.00
(不含稅)
TWD1,277.85
(含稅)
| 單位 | Per unit | Per Pack* |
| 2 - 10 | TWD1,217.00 | TWD2,434.00 |
| 12 - 22 | TWD1,168.00 | TWD2,336.00 |
| 24 + | TWD1,120.00 | TWD2,240.00 |
| * 參考價格 | ||
- RS庫存編號:
- 689-057
- 製造零件編號:
- 103.16.3131
- 製造商:
- Huco
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

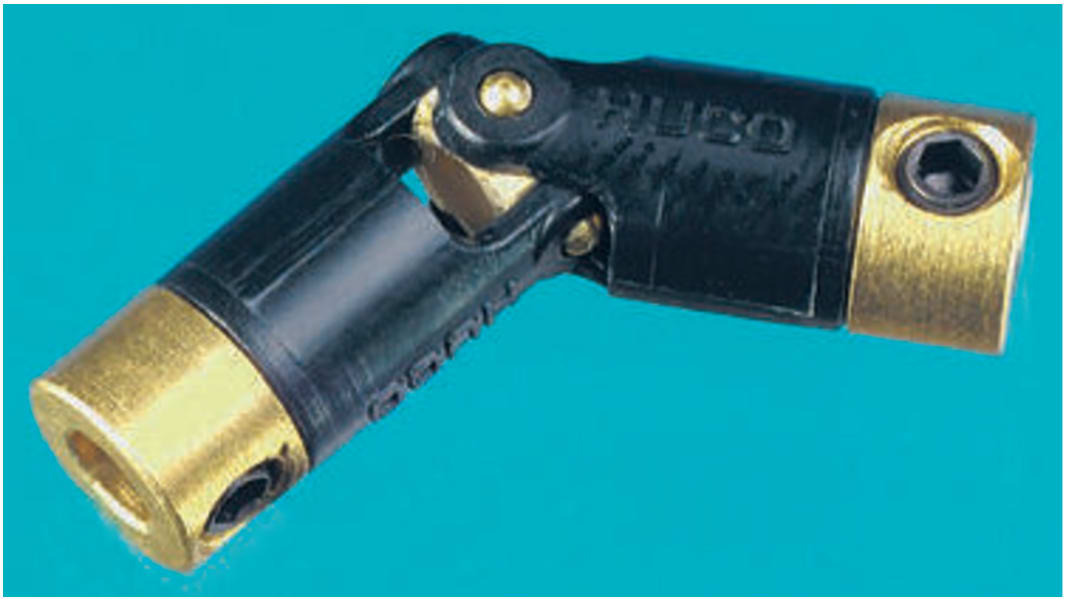

Miniature Acetal Fork Universal Joint
A comprehensive range of light duty universal joints manufactured in non-ferrous metals and Acetal, with a -40 to 85°C operating range.
Corrosion resistant construction
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types
Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps & Collars - Bore Reducing Bushes.
規格
屬性 | 值 |
|---|---|
| Bore | 3/8 x 3/8in |
| Number of Joints | Single |
| Hub Outer Diameter | 17.5mm |
| Overall Length | 67.6mm |
| Joint Type | Plain |
| Hub Type | Bored Hub |
| Maximum Working Angle | 45° |
| Peak Torque | 1.6Nm |
| Material | Brass |
| Maximum Speed | 1000rpm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
