- RS庫存編號:
- 255-7236
- 製造零件編號:
- 1210-FSA-0012
- 製造商:
- TE Connectivity
查看所有Shielding Sheets
20 現貨庫存,可於6工作日發貨。
單價(不含稅) 個
TWD10,080.00
(不含稅)
TWD10,584.00
(含稅)
單位 | Per unit |
1 - 4 | TWD10,080.00 |
5 + | TWD9,852.00 |
- RS庫存編號:
- 255-7236
- 製造零件編號:
- 1210-FSA-0012
- 製造商:
- TE Connectivity
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

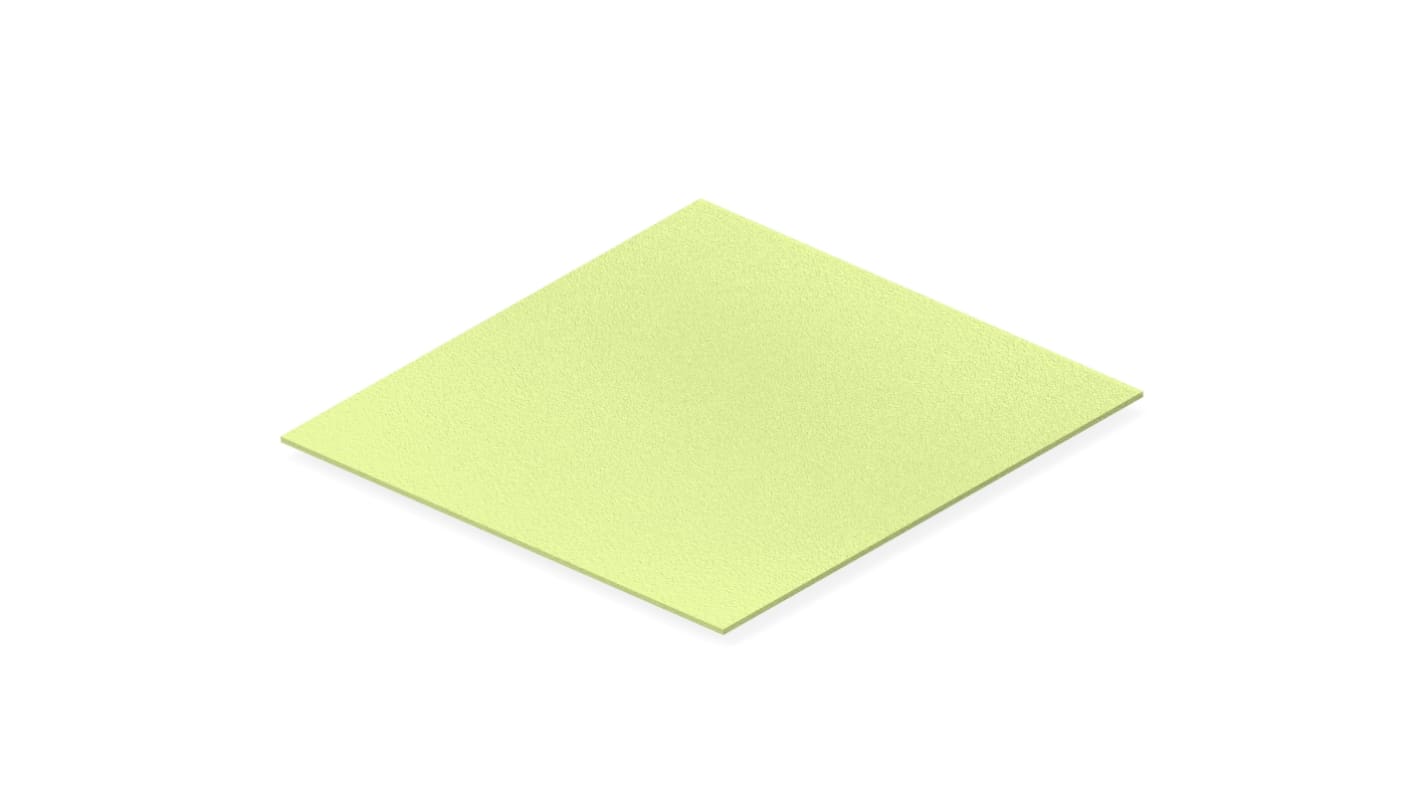

The TE Connectivity shielding sheet is used to reduce electromagnetic interference.It is a practice of reducing the electromagnetic field in a space with the help of barriers made up of conductive or magnetic materials.The conductive elastomers are fully cured silicones or fluorosilicone loaded with a variety of highly conductive particles providing superior EMI/RFI shielding performance combined with excellent environmental sealing. Sheet size-150mm sq x 1.2mm thick.
Conductive sheet
The sheet consist of a fluorosilicone as a binding material and silver plated aluminum as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.012 Ω.cm
Closing Force is 15 N/cm²
The sheet consist of a fluorosilicone as a binding material and silver plated aluminum as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.012 Ω.cm
Closing Force is 15 N/cm²
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
屬性 | 值 |
Material | Fluorosilicone |
Fixing Method | Surface Mount |
Thickness | 1.2mm |
Series | Kemtron 1210 |
Length | 150mm |
Width | 150mm |
