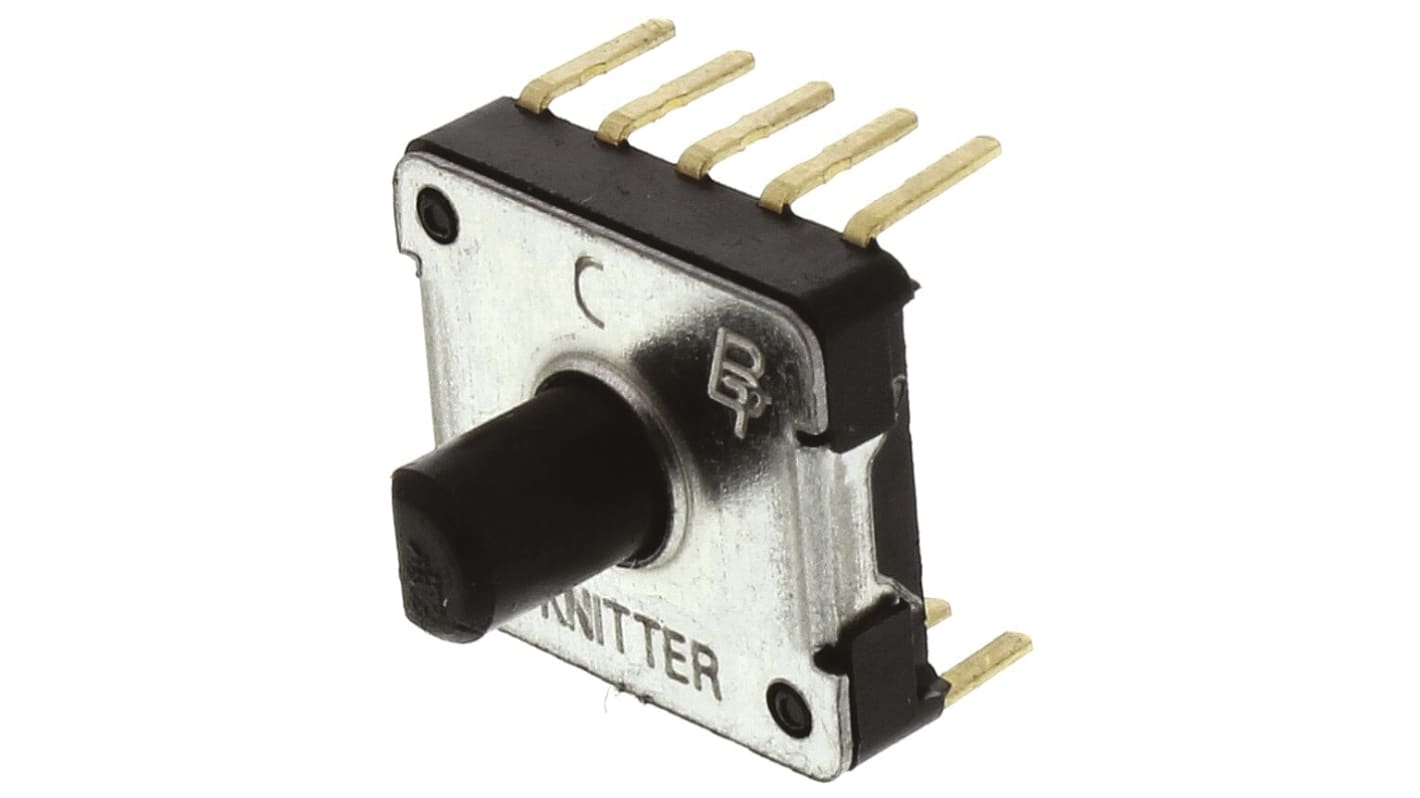

KNITTER-SWITCH, 9 Position SP9T Rotary Switch, 100 mA @ 5 V dc, Through Hole
- RS庫存編號:
- 711-8410
- 製造零件編號:
- MRS 12V-19
- 製造商:
- KNITTER-SWITCH
查看所有Rotary Switches
- RS庫存編號:
- 711-8410
- 製造零件編號:
- MRS 12V-19
- 製造商:
- KNITTER-SWITCH
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- KR
產品詳細資訊
Miniature Rotary Switches - MRS Series
PCB mounting
Non-shorting contact timing
Contact rating of 16 Vdc, 100 mA
9 positions
40° angle between 2 positions
Operating force: 250 ± 100 gf. cm
Non-shorting contact timing
Contact rating of 16 Vdc, 100 mA
9 positions
40° angle between 2 positions
Operating force: 250 ± 100 gf. cm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
規格
| 屬性 | 值 |
| Contact Configuration | SP9T |
| Contact Current Rating | 100 mA @ 5 V dc |
| Number of Switch Positions | 9 |
| Number of Contacts | 1 |
| Voltage Rating | 16V dc |
| Depth | 11.4mm |
| Width | 13mm |
| Dimensions | 13 x 11.4 x 9.8mm |
| Mounting Type | PCB |
| Mounting Hole Size | 1 mm |
| Terminal Type | Through Hole |
| Case Material | Glass Fibre Reinforced PBT |
| Minimum Operating Temperature | -20°C |
| Height | 9.8mm |
| Contact Material | Gold |
| Maximum Operating Temperature | +80°C |
| Mechanical Life | 10000Művelet |
