可享批量折扣
小計 50 件 (按連續帶提供)*
TWD530.00
(不含稅)
TWD556.50
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 5,340 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 50 + | TWD10.60 |
* 參考價格

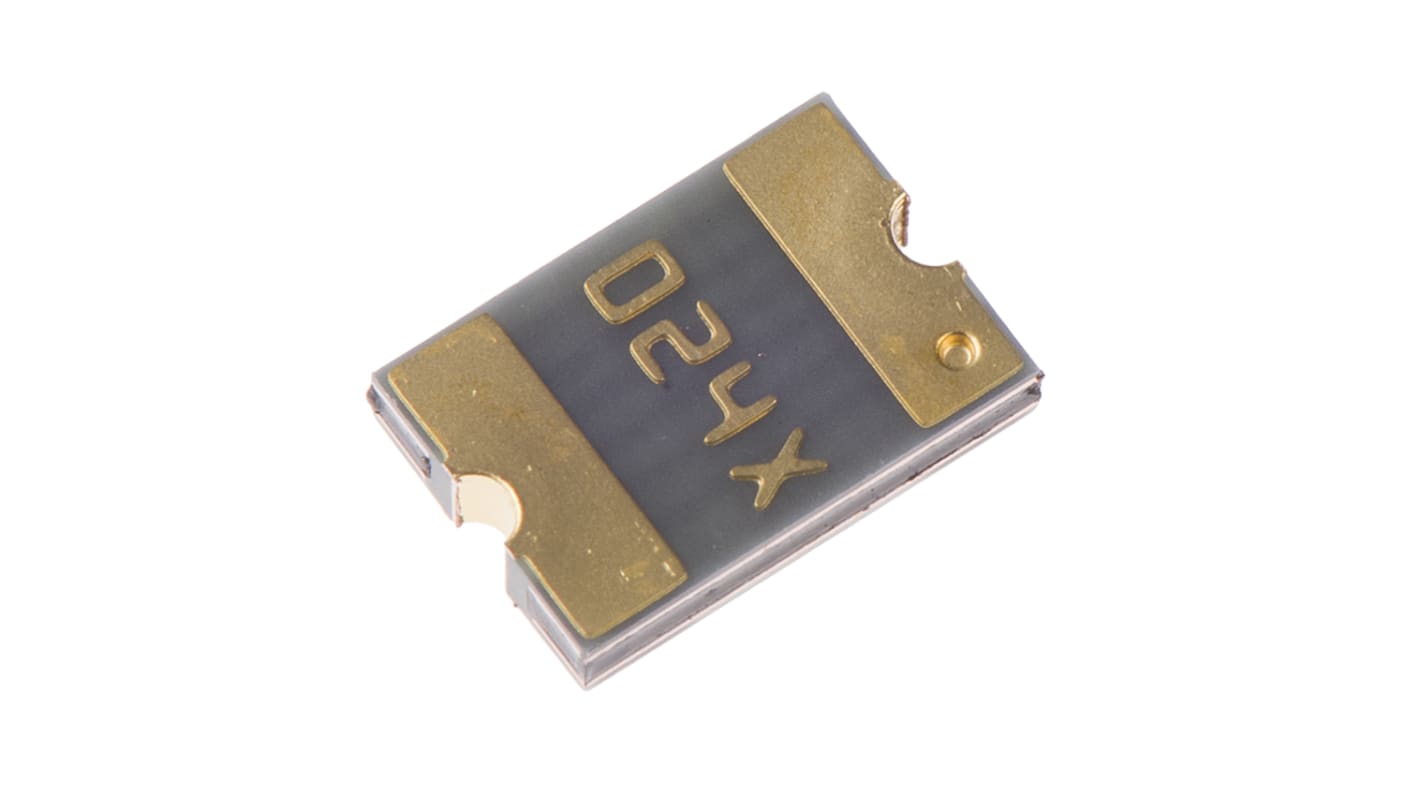

- RS庫存編號:
- 647-8140P
- 製造零件編號:
- MF-MSMF020-2
- 製造商:
- Bourns
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Bourns | |
| Trip Current | 0.4A | |
| Product Type | Resettable Fuse | |
| Voltage | 30V | |
| Time to Trip | 0.1s | |
| Current Rating | 80A | |
| Hold Current | 0.2A | |
| Length | 4.73mm | |
| Height | 1.1mm | |
| Width | 3.41mm | |
| Terminal Material | Electroless Nickel Immersion Gold Plated | |
| Minimum Resistance | 0.4Ω | |
| Maximum Resistance | 6Ω | |
| Minimum Operating Temperature | 85°C | |
| Power Dissipation | 0.8W | |
| Maximum Operating Temperature | -40°C | |
| Standards/Approvals | UL, RoHS | |
| Package Size | 1812 | |
| Series | MF-MSMF | |
| Package Type | Reel | |
| 選取全部 | ||
|---|---|---|
品牌 Bourns | ||
Trip Current 0.4A | ||
Product Type Resettable Fuse | ||
Voltage 30V | ||
Time to Trip 0.1s | ||
Current Rating 80A | ||
Hold Current 0.2A | ||
Length 4.73mm | ||
Height 1.1mm | ||
Width 3.41mm | ||
Terminal Material Electroless Nickel Immersion Gold Plated | ||
Minimum Resistance 0.4Ω | ||
Maximum Resistance 6Ω | ||
Minimum Operating Temperature 85°C | ||
Power Dissipation 0.8W | ||
Maximum Operating Temperature -40°C | ||
Standards/Approvals UL, RoHS | ||
Package Size 1812 | ||
Series MF-MSMF | ||
Package Type Reel | ||
MF-MSMF Series
Compliant with AEC-Q200 Rev-C- Stress Test Qualification for Passive Components in Automotive Applications
100 % electrically compatible with all previous generations of 1812 SMT devices
Compatible with Pb and Pb-free solder reflow profiles
Surface mount packaging for automated assembly
Surface Mount Technology
Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.
Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required
Main applications
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
