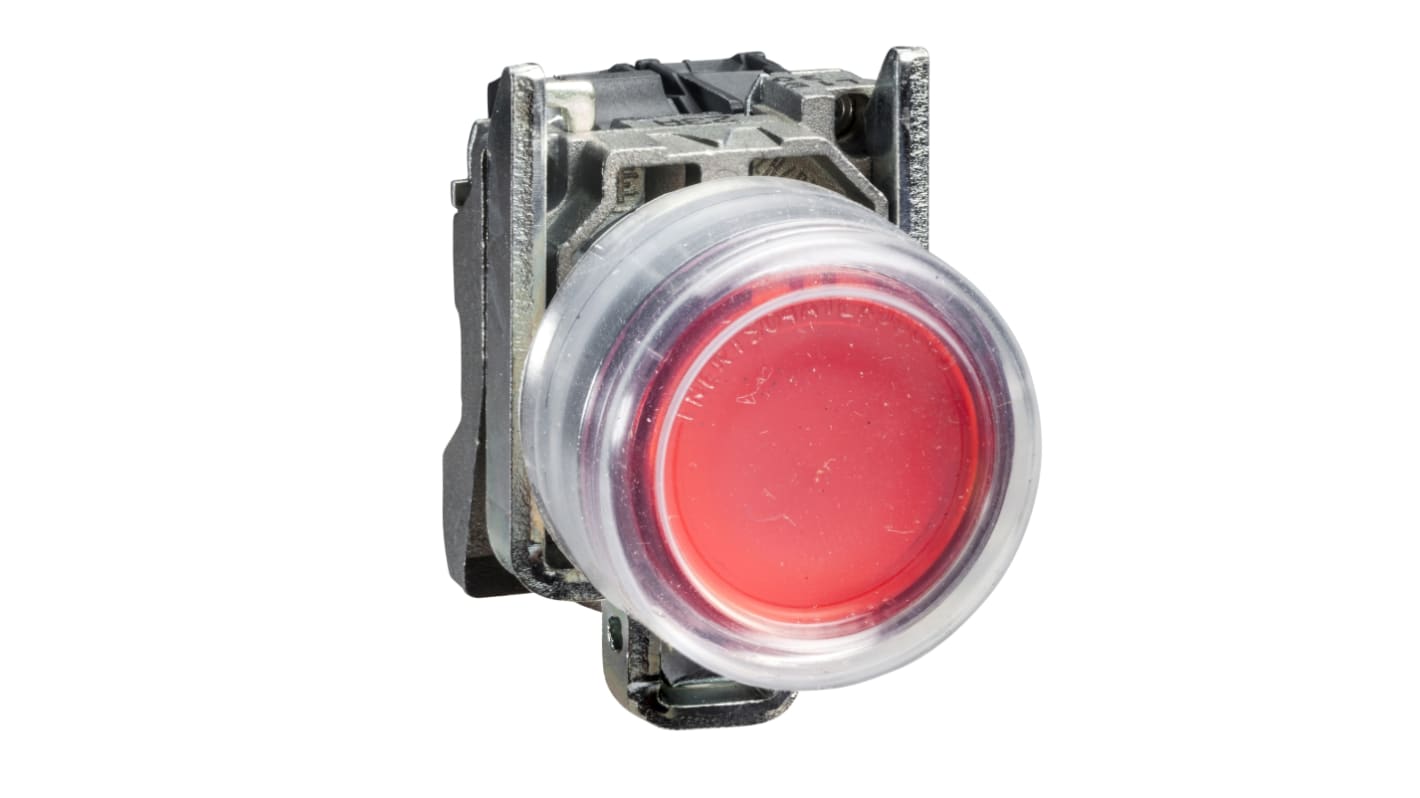

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPST, Red LED, IP67,

RS庫存編號:: 330-8802
Distrelec 貨號:: 303-02-513
製造零件編號:: XB4BP42
製造商:: Schneider Electric

Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel, 22 mm Cutout, SPST, Red LED, IP67,

小計（1 件）*

TWD674.00

(不含稅)

TWD707.70

添加 2 件件可免費送貨

下方訂單 TWD1,300.00（不含稅）成本 TWD500.00。

有庫存

11 件準備從其他地點送貨
加上 58 件從 2026年3月20日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD674.00

* 參考價格

RS庫存編號:: 330-8802
Distrelec 貨號:: 303-02-513
製造零件編號:: XB4BP42
製造商:: Schneider Electric

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schneider Electric
	Actuator Colour	Red
	Product Type	Push Button Switch
	Switch Operation	Spring Return
	Illuminated	No
	Panel Cutout Size	22 mm
	Series	Harmony XB4
	Mount Type	Panel
	Contact Configuration	SPST
	Terminal Type	Screw
	LED Colour	Red
	IP Rating	IP67, IP69K, IP66
	Minimum Operating Temperature	-40°C
	Actuator Style	Round
	Maximum Operating Temperature	70°C
	Width	30 mm
	Length	61mm
	Standards/Approvals	No
	Height	47mm
	Legend	Blank

	選取全部
	品牌 Schneider Electric
	Actuator Colour Red
	Product Type Push Button Switch
	Switch Operation Spring Return
	Illuminated No
	Panel Cutout Size 22 mm
	Series Harmony XB4
	Mount Type Panel
	Contact Configuration SPST
	Terminal Type Screw
	LED Colour Red
	IP Rating IP67, IP69K, IP66
	Minimum Operating Temperature -40°C
	Actuator Style Round
	Maximum Operating Temperature 70°C
	Width 30 mm
	Length 61mm
	Standards/Approvals No
	Height 47mm
	Legend Blank

登入下載 CAD 模型

COO (Country of Origin):: FR

Schneider Electric Harmony XB4 Series Push Button, 22mm Panel Cut Out Diameter, Panel Mount - XB4BP42

This push button switch is designed for integration into various control panels. With a panel mount configuration and a cut out diameter of 22mm, this component ensures secure installation. The device operates in temperatures ranging from -40°C to +70°C, making it a durable choice for various environments. Its high ratings of IP66, IP67, and IP69K signify resistance to dust and high-pressure water, marking it as a waterproof push button.

Features & Benefits

• SPST configuration enables single-pole switching

• Red projecting operator enhances visibility in low-light settings

• Chromium-plated metal bezel provides durability and protection

• Screw clamp terminals simplify wiring and enhance reliability

• Mechanical durability rated at 10 million cycles ensures longevity

• High-temperature resistance allows use in extreme environments

Applications

• Used in industrial machinery control panels

• Suitable for automation systems requiring robust interfaces

• Ideal for outdoor settings needing waterproof solutions

• Utilised in electronic equipment panels for ease of use

Can it withstand low temperatures?

Yes, it functions effectively at -40°C.

Will it operate in wet conditions?

Yes, it is designed to be waterproof with IP66 and IP67 ratings.

Is it easy to install?

Yes, it features screw clamp terminals for ease of wiring.

Can it handle high voltages?

Yes, it supports up to 600V AC and DC.

Is it compatible with different cable sizes?

Yes, it accommodates various cable dimensions as specified.

Approvals

UL; CSA
