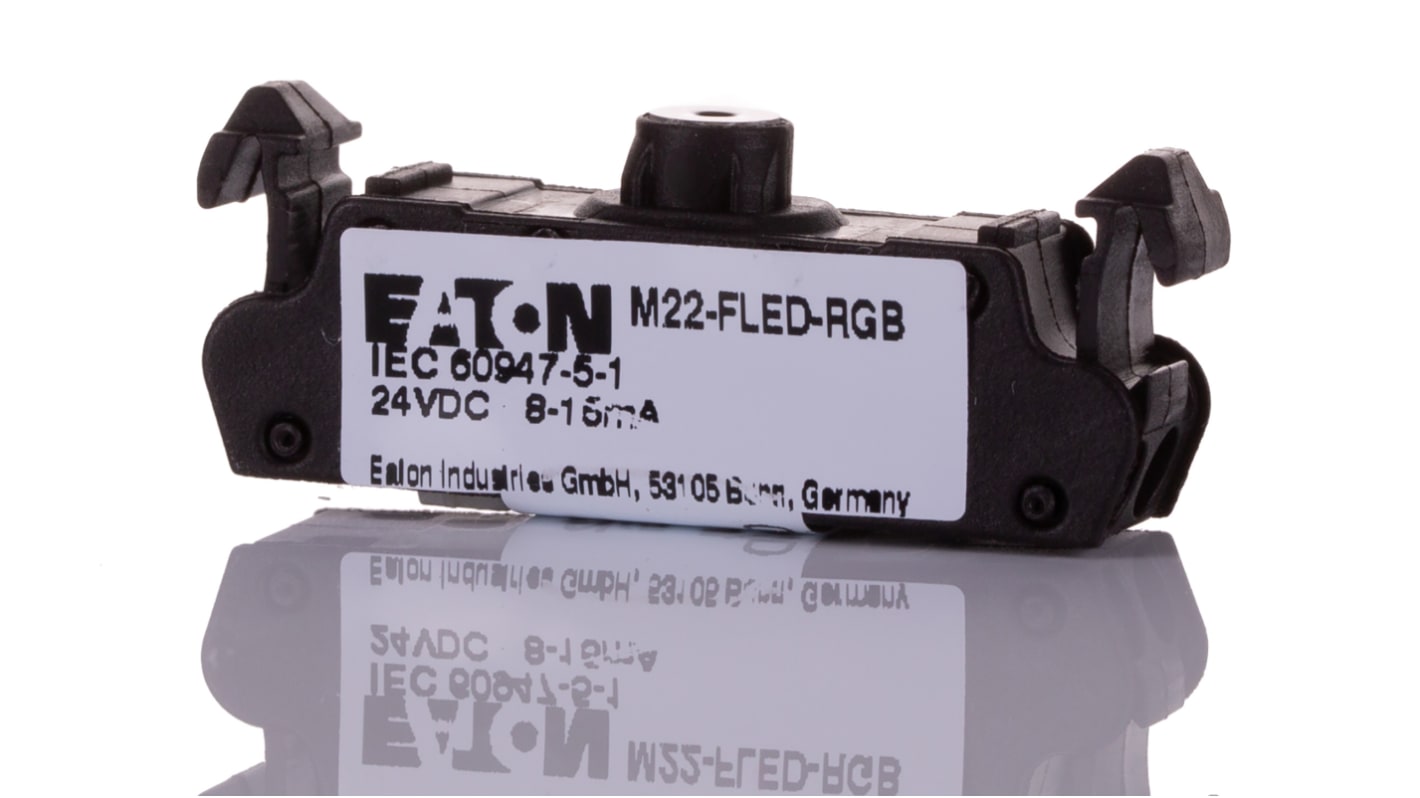

Eaton RMQ Titan M22 Series Light Block, 24 V dc, Blue, Green, Red Light

RS庫存編號:: 124-5198
Distrelec 貨號:: 300-96-755
製造零件編號:: 180800 M22-FLED-RGB
製造商:: Eaton

Eaton RMQ Titan M22 Series Light Block, 24 V dc, Blue, Green, Red Light

小計（1 件）*

TWD969.00

(不含稅)

TWD1,017.45

訂單超過 $1,300.00 免費送貨

有庫存

17 件準備從其他地點送貨
加上 60 件從 2026年3月17日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	TWD969.00

* 參考價格

RS庫存編號:: 124-5198
Distrelec 貨號:: 300-96-755
製造零件編號:: 180800 M22-FLED-RGB
製造商:: Eaton

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Eaton
	Product Type	LED Block
	Block Type	Light Block
	Voltage	24 V dc
	Illumination Colour	Blue, Green, Red
	Series	RMQ Titan M22
	Illumination Type	LED
	LED Included	Yes
	Current Rating	8 to 15 mA
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	UL 508, IEC/EN 60947-5, IEC 60947-5-1, CSA-C22.2 No. 14-05, CE marking, CSA-C22.2 No. 94-91
	Width	10 mm
	Height	38mm
	Length	14.6mm

	選取全部
	品牌 Eaton
	Product Type LED Block
	Block Type Light Block
	Voltage 24 V dc
	Illumination Colour Blue, Green, Red
	Series RMQ Titan M22
	Illumination Type LED
	LED Included Yes
	Current Rating 8 to 15 mA
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Standards/Approvals UL 508, IEC/EN 60947-5, IEC 60947-5-1, CSA-C22.2 No. 14-05, CE marking, CSA-C22.2 No. 94-91
	Width 10 mm
	Height 38mm
	Length 14.6mm

COO (Country of Origin):: DE

Eaton RMQ Titan LED Block, 24V DC Operational Voltage, 0.36W Power Consumption - RMQ-Titan / M22 Series - 180800 M22-FLED-RGB

Use this LED block from Eaton along with a contact block to illuminate industrial devices. Its push-in connection means it's quick and easy to install without the need for specialist tools, and it mounts to the rear of your actuator for use in applications where space is limited. A voltage rating of 24V DC makes this LED block a good choice for low-voltage applications. It has a withstand voltage of 4000V AC, which means your equipment is protected in the event of a power surge.

• Low power consumption of 0.36W for energy efficiency

• Mechanical lifespan of 100,000 hours for reliable use over long periods

• Multicoloured LED indicator lights for fast troubleshooting and maintenance

• IP20 rating means it's touch-proof and protected from objects larger than 12mm

• Compact dimensions of 38 (H) x 10mm (D) for use in settings where space is limited

What's the operating temperature range of this LED block?

This block has a broad operating temperature range of -25°C to +70°C, so it's suitable for use in harsh industrial settings.

Flat Compact LED Blocks

Eaton RMQ-Titan 22 mm range of flat compact LED blocks. The compact LED blocks provide greater flexibility and more space than standard RMQ LED elements. Designed to allow quick assembly of panel mount indicators and control components with a reduced mounting depth to less than 30 mm.

IP20 degree of ingress protection

Fixes to the rear of the actuator

Push-in tool-less terminals

Single, dual and multi colour options available

Note

Eaton formerly known as Moeller
