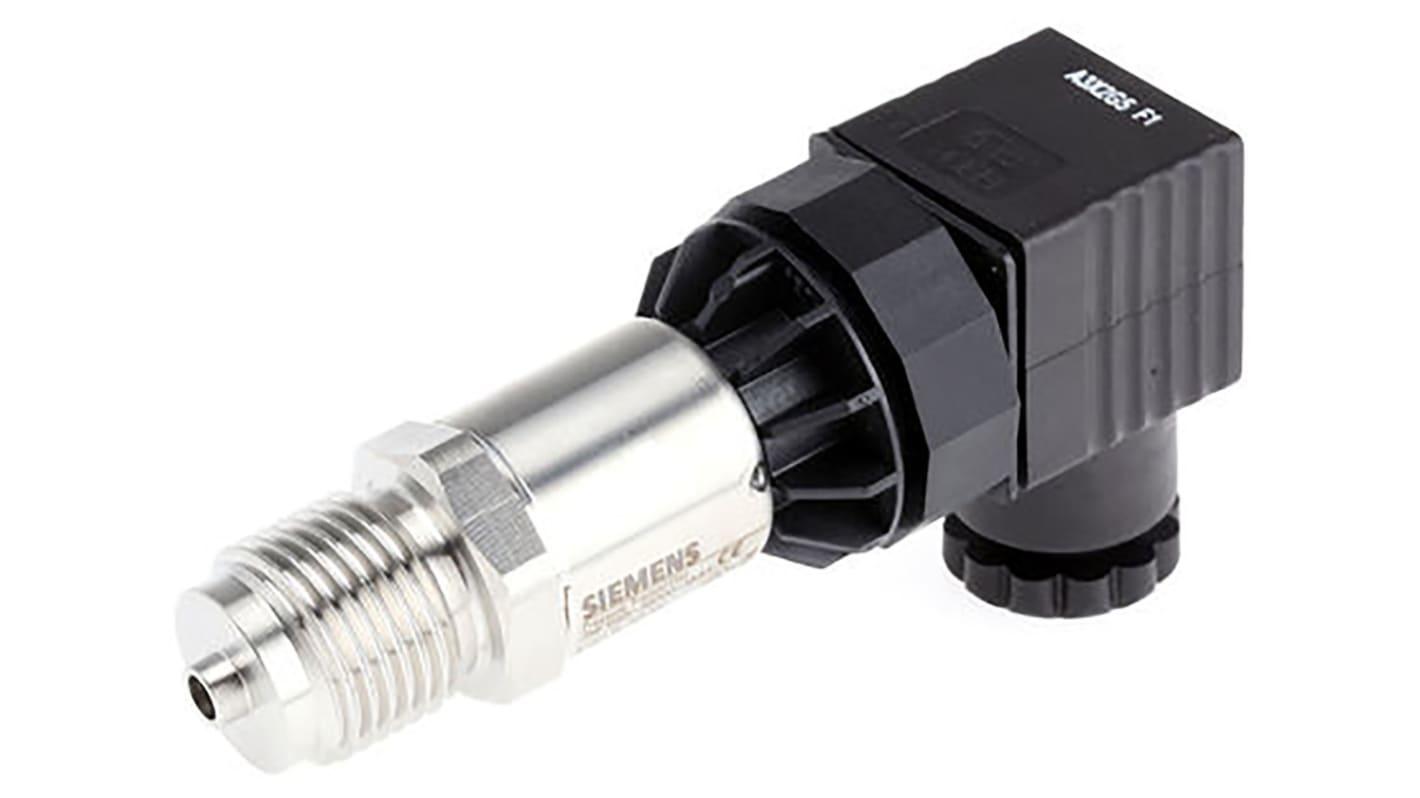

Siemens SITRANS P200 Series Pressure Transmitters
Siemens SITRANS P200 pressure transmitter measures the gauge and absolute pressure of liquids, gases and vapours. Featuring a ceramic measuring cell with a thin-film resistance bridge that the operating pressure is transmitted through. The P200 pressure sensors consist of a piezoresistive measuring cell with a diaphragm installed in a stainless steel enclosure.
High measuring accuracy
Rugged stainless steel enclosure
High overload withstand capability
For aggressive and non-aggressive media
For measuring the pressure of liquids, gases and vapours
Compact design
Rugged stainless steel enclosure
High overload withstand capability
For aggressive and non-aggressive media
For measuring the pressure of liquids, gases and vapours
Compact design
規格
| 屬性 | 值 |
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 4bar |
| Accuracy | 0.25 % |
| Output Type | Analogue |
| Media Measured | Aggressive Media, Gas, Liquid, Non-Aggressive Media, Vapour |
| Process Connection | G1/2 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | DIN EN 175301 Connector, M16 |
| Response Time | <5 ms |
| Maximum Current | 20 mA |
| Supply Voltage | 7 → 33 V dc |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| IP Rating | IP65, IP67 |
| Mounting Type | Threaded |
