RS PRO, I/O Extension Module - 8 Inputs, 4 Outputs, Digital, Relay, For Use With RS PRO Logic Modules, ModBus
- RS庫存編號:
- 917-6386
- 製造商:
- RS PRO
查看此類別
11 現貨庫存，可於6工作日發貨。
單價（不含稅） 個
原價 TWD1,964.00
您付款
TWD1,503.00
(不含稅)
TWD1,578.15
(含稅)
| 單位 | Per unit |
| 1 - 4 | TWD1,503.00 |
| 5 + | TWD1,237.00 |
- RS庫存編號:
- 917-6386
- 製造商:
- RS PRO
- COO (Country of Origin):
- IN
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IN
產品詳細資訊

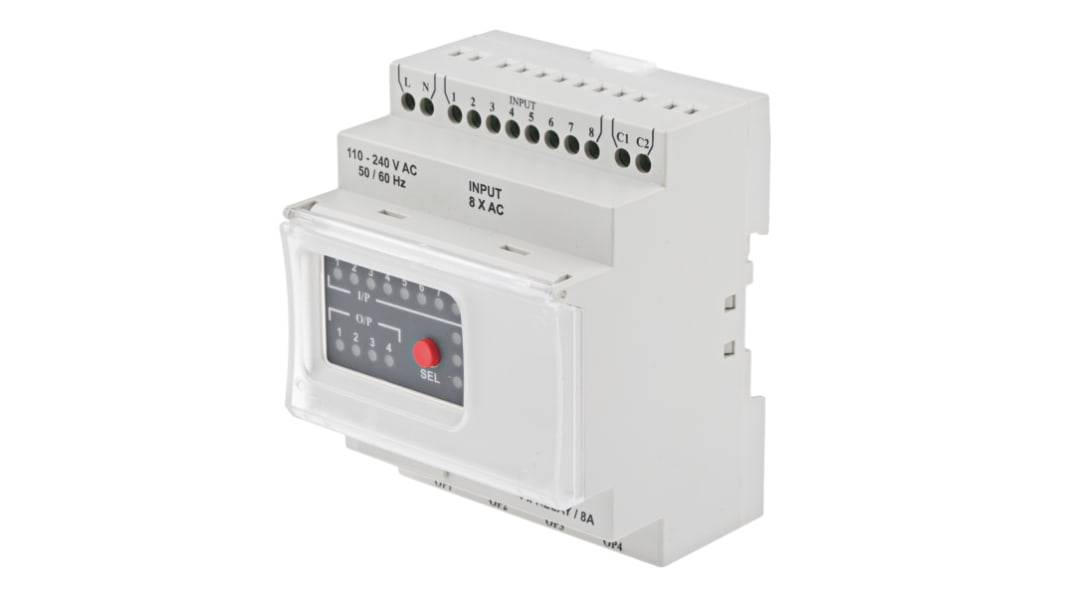

RS PRO I/O Expansion Module (8 Input/ 4 Output)
An expansion input/output (I/O) module for controlling automated processes in both industrial and commercial environments for use with RS PRO Logic Controllers
Designed for use where various types of input need to be considered such as temperature, pressure and flow rate. This module doesn't require special or complicated wiring, its quick to install and easy to manage and can expand through a daisy chain fashion to support up to 48 I/O (32 digital input and 16 relay input).
With an operating temperature range of -10°C to +55°C the I/O module is suitable for a wide range of environments, from cold storage units to power plants.
Features and Benefits
- Expansion Module with Relay Output
- 8 inputs, 4 outputs
- Maximum of 3 expansion modules on one Logic Module (48 I/O)
- DIN rail mounting
Applications
- HVAC Controls
- Machine Controls involving Motor, Pump and Valve
- Vehicle Control Monitoring
- Baggage handling
- Conveyor systems and Elevators
- Exhaust and Filtering Systems
- Water-treatment plants
- Printing and Packaging Machines
- Interior and Exterior Lighting Control
- Door, Gate, Shutter, Sun blinds and Awning control
- Irrigation Control Systems
- Automation of Compressors and Pumps for Air Conditioning requirements
Software
RS Pro Logic Module software is available as a free download via the following link:
http://auto.designspark.info/exe/RS_Logic_Module.zip
The free logic module software provides a user friendly interface that allows easy programming, simulation and debugging on a PC.
Why RS PRO?
Looking to reduce costs but keep the same quality?
With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.
Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.
規格
| 屬性 | 值 |
| Number of Inputs | 8 |
| Output Type | Digital, Relay |
| For Use With | RS PRO Logic Modules |
| Supply Voltage | 110 → 240 V ac |
| Input Type | Digital |
| Number of Outputs | 4 |
| Network Type | ModBus |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -10°C |
| Programming Interface | Computer |
| Number of Communication Ports | 1 |
| Output Current | 8 A |
| Programming Language Used | Ladder Programming |
| Mounting Type | DIN Rail |
| Width | 72mm |
| Length | 90mm |
| Depth | 65mm |
| Program Capacity | 250 lines |
| Dimensions | 72 x 90 x 65 mm |
| Standards Met | CE Certified' cULus |
| Communication Port Type | Serial |
