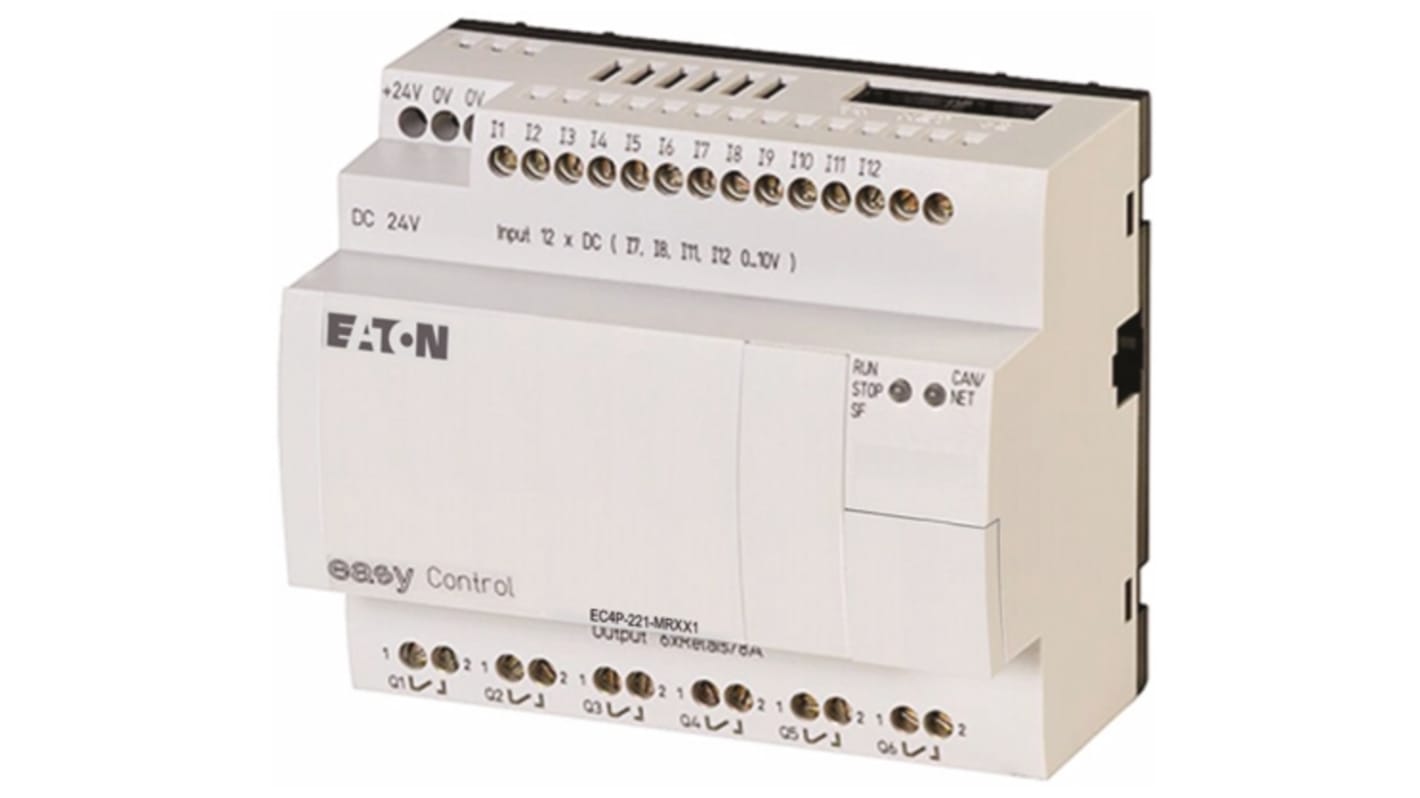

Eaton Easy Series Logic Module for Use with easyControl, 24 V dc Supply, Relay Output, 12-Input, Analogue, Digital Input
- RS庫存編號:
- 133-260
- 製造零件編號:
- 106394 EC4P-221-MRXX1
- 製造商:
- Eaton
小計（1 件）*
TWD18,595.00
(不含稅)
TWD19,524.75
(含稅)
訂單超過 $1,300.00 免費送貨
暫時缺貨
- 從 2026年2月09日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD18,595.00 |
* 參考價格
- RS庫存編號:
- 133-260
- 製造零件編號:
- 106394 EC4P-221-MRXX1
- 製造商:
- Eaton
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Eaton | |
| Manufacturer Series | Easy | |
| Number of Inputs | 12 | |
| Output Type | Relay | |
| For Use With | easyControl | |
| Supply Voltage | 24 V dc | |
| Input Type | Analogue, Digital | |
| Number of Outputs | 6 | |
| Network Type | CANOpen, EasyNet | |
| Output Current | 10 A | |
| Minimum Operating Temperature | -25°C | |
| Display Included | Yes | |
| Mounting Type | DIN Rail | |
| Width | 107.5mm | |
| Length | 110mm | |
| Communication Port Type | RJ45 | |
| Number of Communication Ports | 2 | |
| Depth | 79mm | |
| Program Capacity | 256 kB | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 110 x 107.5 x 79 mm | |
| 選取全部 | ||
|---|---|---|
品牌 Eaton | ||
Manufacturer Series Easy | ||
Number of Inputs 12 | ||
Output Type Relay | ||
For Use With easyControl | ||
Supply Voltage 24 V dc | ||
Input Type Analogue, Digital | ||
Number of Outputs 6 | ||
Network Type CANOpen, EasyNet | ||
Output Current 10 A | ||
Minimum Operating Temperature -25°C | ||
Display Included Yes | ||
Mounting Type DIN Rail | ||
Width 107.5mm | ||
Length 110mm | ||
Communication Port Type RJ45 | ||
Number of Communication Ports 2 | ||
Depth 79mm | ||
Program Capacity 256 kB | ||
Maximum Operating Temperature +55°C | ||
Dimensions 110 x 107.5 x 79 mm | ||
- COO (Country of Origin):
- DE
Easy Control - High Performance Easy
The Easy Control EC4P brings a new level of capability to the Easy range. Combining the simplicity of the Easy system using local expansion and in-built networking facilities, with the power of internationally recognised programming standards.Offering both Easy-net and CanOpen interfaces, the EC4P can be used with the standard Easy system as well as in combination with wider automation systems and PLCs.,Utilising the IEC1131-3 based programming software, the Easysoft CoDeSys package enables multiple programming language support as well as features such as off-line simulation and graphical test functions to be realised.
Local expansion using the Easy I/O expansion units
Network up to 8 units over 1000m
High-level network interfaces for: Profibus, CanOpen, DeviceNet, Ethernet
Programmable using IEC1131-3 CoDeSys software
Memory cards available
Network up to 8 units over 1000m
High-level network interfaces for: Profibus, CanOpen, DeviceNet, Ethernet
Programmable using IEC1131-3 CoDeSys software
Memory cards available
Note
Eaton formerly known as Moeller
Note
(Figures in brackets in Onboard I/O and Outputs columns are for Transistor output types)
