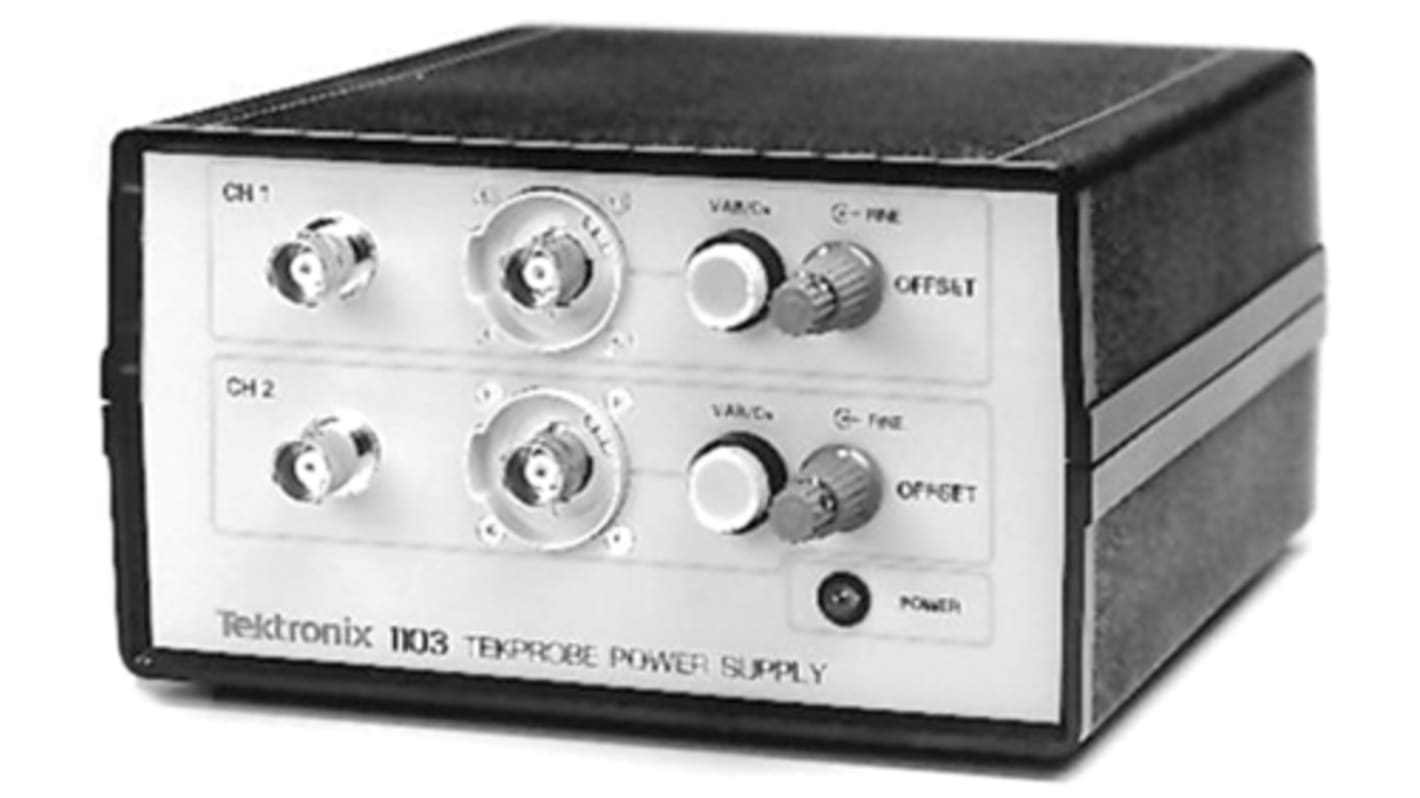

Tektronix Oscilloscope Battery Power Supply 1103, For Use With ADA400A, P5205, P5210, P6205, P6243, P6245, P6246,
- RS庫存編號:
- 796-6733
- 製造零件編號:
- 1103
- 製造商:
- Tektronix
1 在6 工作日內發貨 (海外庫存)
1 在6 工作日內發貨 (海外庫存)
已增加
單價(不含稅) 個
原價 TWD156,330.00
您付款
TWD123,013.00
(不含稅)
TWD129,163.65
(含稅)
單位 | Per unit |
1 + | TWD123,013.00 |
- RS庫存編號:
- 796-6733
- 製造零件編號:
- 1103
- 製造商:
- Tektronix
產品概覽和技術數據資料表
法例與合規
豁免
- COO (Country of Origin):
- CN
產品詳細資訊
Probe power supply
Device capable of powering two probes at the same time
Short circuit protection
BNC interface
Output: pin 1 n.c., pin 2 n.c., pin 3 +5 V, pin 4 +15 V, pin 5 offset +/-1 V, pin 6 -5 V, pin 7 -15 V
Power consumption: <35 W
For use with the following probes: P6205, P6243, P6245, P6246, P6247, P6248, P6249, P6330, P6701B, P6703B, P5205, P5210, ADA400A, TCP202
BNC interface
Output: pin 1 n.c., pin 2 n.c., pin 3 +5 V, pin 4 +15 V, pin 5 offset +/-1 V, pin 6 -5 V, pin 7 -15 V
Power consumption: <35 W
For use with the following probes: P6205, P6243, P6245, P6246, P6247, P6248, P6249, P6330, P6701B, P6703B, P5205, P5210, ADA400A, TCP202
Approvals
ISO9001
規格
屬性 | 值 |
---|---|
Accessory Type | Power Supply |
For Use With | ADA400A, P5205, P5210, P6205, P6243, P6245, P6246, P6247, P6248, P6249, P6330, P6701B, P6703B, TCP202 on other than TekProbe BNC Interfaced Scopes |
Model Number p | 1103 |
