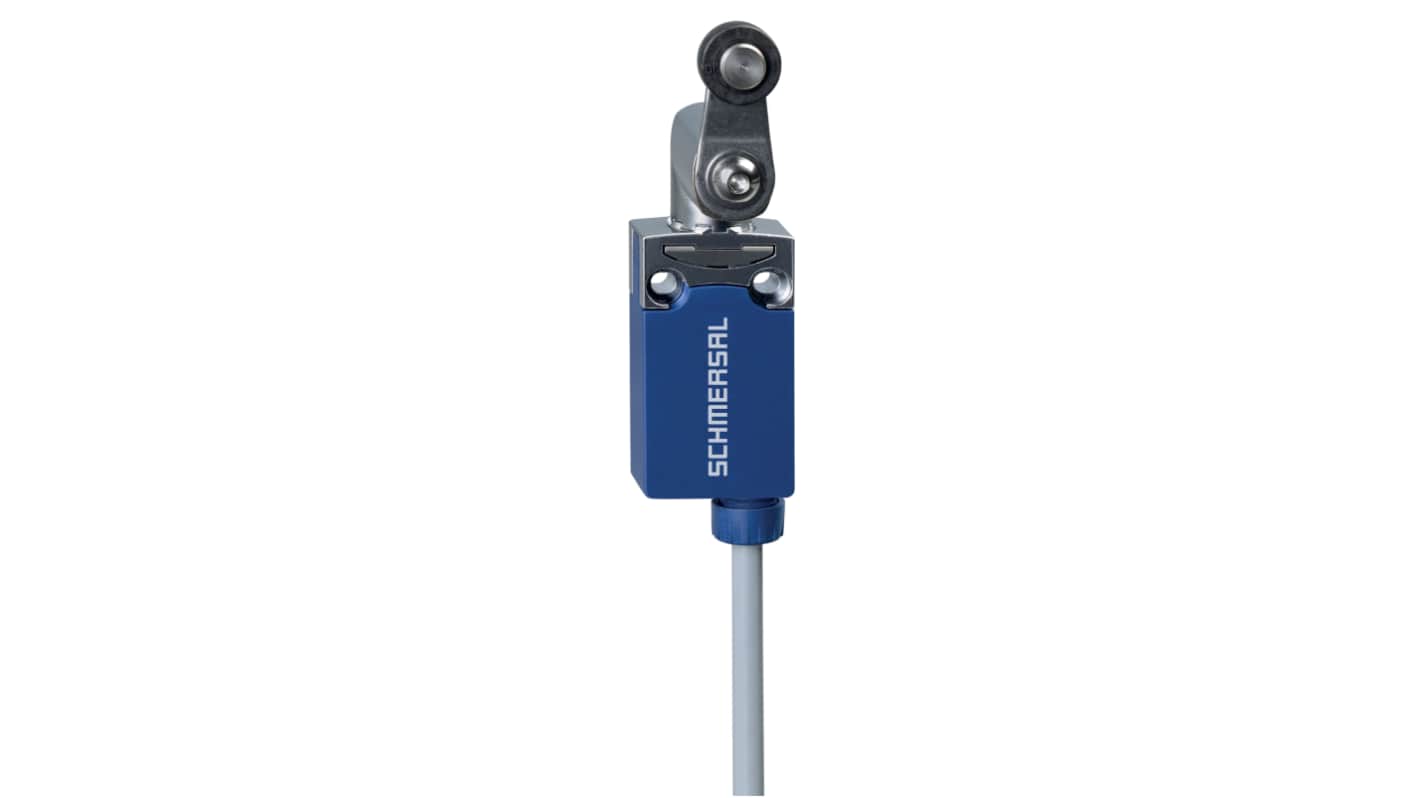

Schmersal PS116 Series Roller Lever Switch, 1 NO/2 NC, IP66, IP67, Plastic Housing, 240V ac

RS庫存編號:: 335-778
製造零件編號:: PS116-T12-L200-H200
製造商:: Schmersal

Schmersal PS116 Series Roller Lever Switch, 1 NO/2 NC, IP66, IP67, Plastic Housing, 240V ac

小計（1 件）*

TWD3,182.00

(不含稅)

TWD3,341.10

庫存資訊目前無法存取 - 請稍後再回來查看

單位	每單位
1 +	TWD3,182.00

* 參考價格

RS庫存編號:: 335-778
製造零件編號:: PS116-T12-L200-H200
製造商:: Schmersal

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Schmersal
	Actuator Type	Roller Lever
	Product Type	Switch
	IP Rating	IP66, IP67
	Contact Configuration	1 NO/2 NC
	Housing Material	Plastic
	Contact Type	Slow Action
	Terminal Type	Pre-Wired
	Series	PS116
	Switching AC Voltage	240V ac
	Width	31mm
	Depth	101mm
	Length	16.6mm
	Standards/Approvals	cULus CCC
	Hazardous Area Certification	NO
	Mechanical Life	10000000Operations
	Conduit Entry	1 x M20 x 1.5

	選取全部
	品牌 Schmersal
	Actuator Type Roller Lever
	Product Type Switch
	IP Rating IP66, IP67
	Contact Configuration 1 NO/2 NC
	Housing Material Plastic
	Contact Type Slow Action
	Terminal Type Pre-Wired
	Series PS116
	Switching AC Voltage 240V ac
	Width 31mm
	Depth 101mm
	Length 16.6mm
	Standards/Approvals cULus CCC
	Hazardous Area Certification NO
	Mechanical Life 10000000Operations
	Conduit Entry 1 x M20 x 1.5

Datasheet - PS116-T12-L200-H200

The Schmersal Position switches feature a pre-wired cable at the bottom, measuring 2 meters. They are equipped with slow action, including 1 normally open contact (NO) and 2 openers (NC). The switches use quick connection technology, with connection terminals rotated by 45°, and include a cable entry of 1 x M20 x 1.5. They are housed in a thermoplastic, symmetric enclosure.

Lever angle adjustable in 15° steps

Protection class IP66, IP67

Actuator heads can be repositioned by 8 x 45°

Schmersal PS116 Series Roller Lever Switch, 1 NO/2 NC, IP66, IP67, Plastic Housing, 240V ac
