Socomec 3-Pole DIN Rail, Quick Connect, Wall Switch Disconnector -, IP65, 1600A, 20 A, 23 kW
- RS庫存編號:
- 252-3489
- 製造零件編號:
- 30325106
- 製造商:
- Socomec
不可供應
RS 不再對此產品進貨。
- RS庫存編號:
- 252-3489
- 製造零件編號:
- 30325106
- 製造商:
- Socomec
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Socomec | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| Mount Type | DIN Rail, Quick Connect, Wall | |
| IP Rating | IP65 | |
| Handle Colour | Grey, Red, Black | |
| Series | 3032 | |
| Switching Current | 1600, 20A | |
| Terminal Type | Shrouds Terminal | |
| Switching AC Voltage | 690V ac | |
| Switching Power | 23kW | |
| Standards/Approvals | BS 5448, BS 89, DIN 43780, IEC 60051-1, IEC 60414, IEC 60947-3, NF C 42-010, NF EN 60051-1, UL 60947-4-1, VDE 0410 | |
| Hazardous Area Certification | NO | |
| 選取全部 | ||
|---|---|---|
品牌 Socomec | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
Mount Type DIN Rail, Quick Connect, Wall | ||
IP Rating IP65 | ||
Handle Colour Grey, Red, Black | ||
Series 3032 | ||
Switching Current 1600, 20A | ||
Terminal Type Shrouds Terminal | ||
Switching AC Voltage 690V ac | ||
Switching Power 23kW | ||
Standards/Approvals BS 5448, BS 89, DIN 43780, IEC 60051-1, IEC 60414, IEC 60947-3, NF C 42-010, NF EN 60051-1, UL 60947-4-1, VDE 0410 | ||
Hazardous Area Certification NO | ||

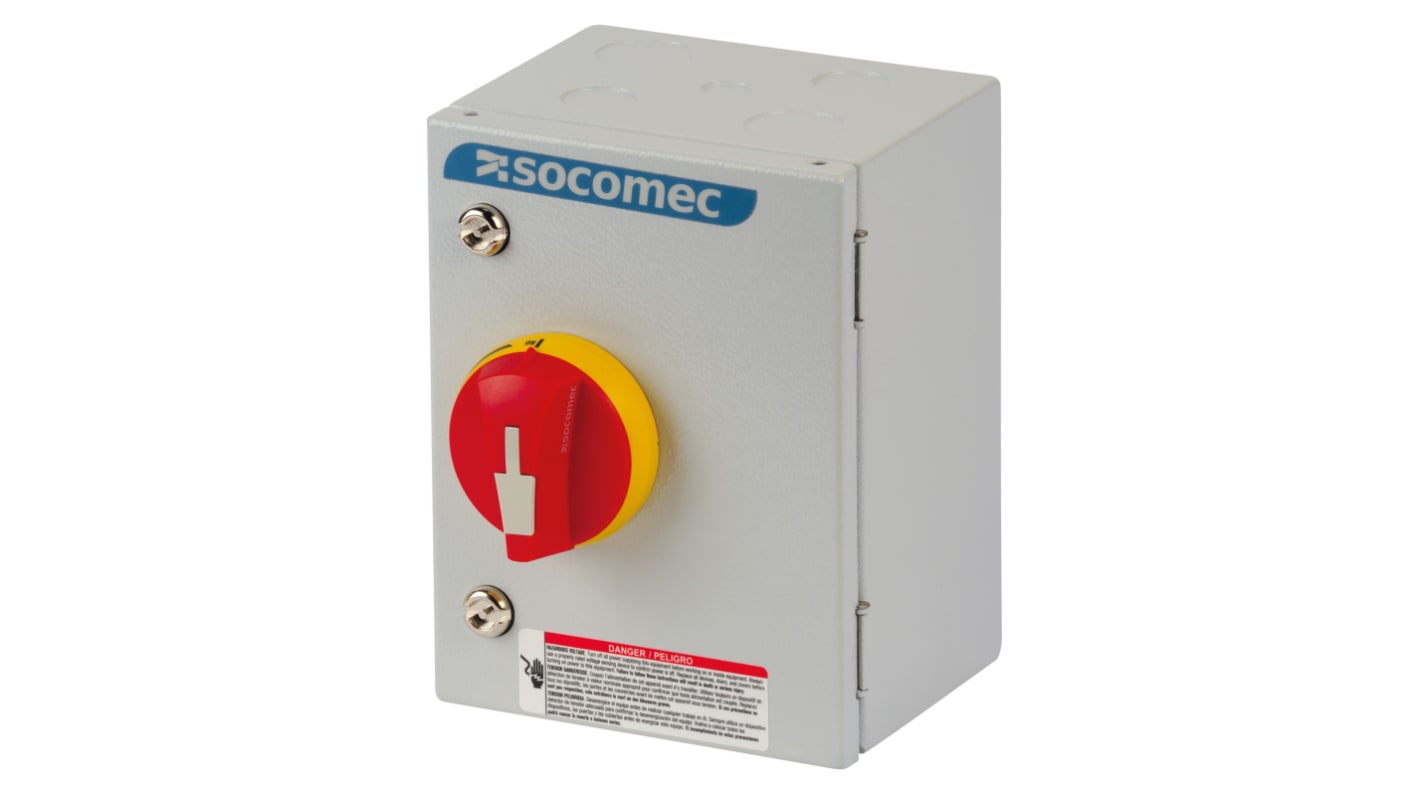

The Socomec load break switch in metallic enclosure. It ensures the on load breaking and making of circuits and safely isolate all low voltage electrical circuits by providing protection against contact with live parts and environmental elements, such as dust, water and other hazards. It also enables the shutdown and isolation of the power supply as close to the equipment as possible.
Secures transfer for mechanical or electrical work
Triple lock in OFF position
Painted steel enclosure
Door latch system or screw on
Pre drilled cable in holes at top and bottom
Red or yellow Handle
