Festo, 12kg 150 mm, 5428810 107mm/s
- RS庫存編號:
- 194-958
- 製造零件編號:
- EPCC-BS-25-150-2P-A
- 製造商:
- Festo
小計（1 件）*
TWD17,111.00
(不含稅)
TWD17,966.55
(含稅)
訂單超過 $1,300.00 免費送貨
製造商存貨
- 準備從 2026年5月22日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | TWD17,111.00 |
* 參考價格
- RS庫存編號:
- 194-958
- 製造零件編號:
- EPCC-BS-25-150-2P-A
- 製造商:
- Festo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Festo | |
| Product Type | Electrical Linear Actuator | |
| Stroke Length | 150mm | |
| Maximum Load | 12kg | |
| Maximum Speed | 107mm/s | |
| Series | EPCC | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Spindle Type | Ball Screw Drive | |
| Piston Rod Thread | M6 | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | VDMA464 | |
| 選取全部 | ||
|---|---|---|
品牌 Festo | ||
Product Type Electrical Linear Actuator | ||
Stroke Length 150mm | ||
Maximum Load 12kg | ||
Maximum Speed 107mm/s | ||
Series EPCC | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Spindle Type Ball Screw Drive | ||
Piston Rod Thread M6 | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals VDMA464 | ||
- COO (Country of Origin):
- CN

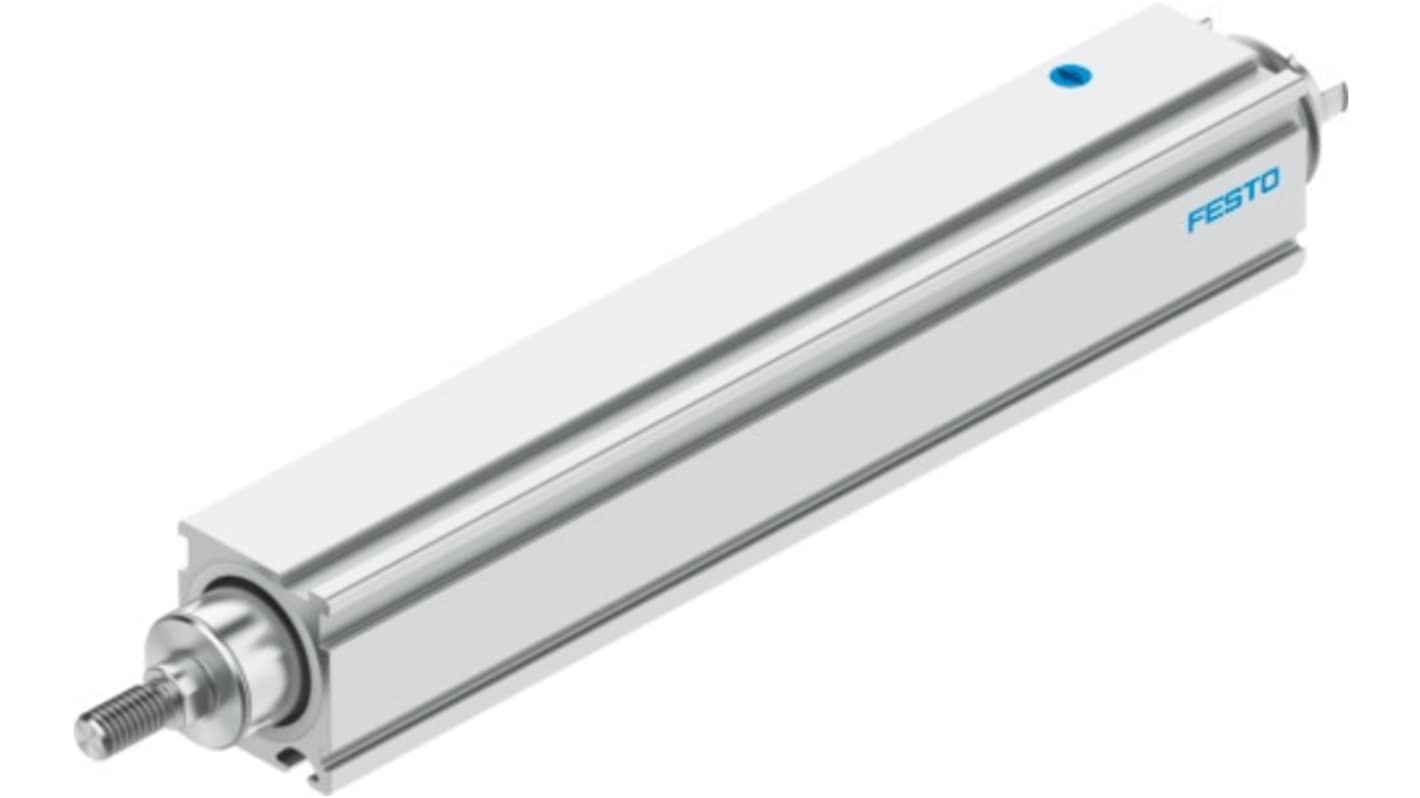

The Festo Electric Cylinder is engineered to provide exceptional performance in various automated applications. Designed with a ball screw drive and a stepper motor, it ensures precise positioning and efficient operation. Its robust construction features a high alloy stainless steel piston rod and anodised aluminium housing, making it suitable for demanding environments, including cleanrooms and those with specific material compliance needs. With considerations for duty cycles and longevity, this electric cylinder is an ideal choice for businesses seeking reliability and automation excellence.
Offers precise control through its advanced proximity switch position detection
Engineered for longevity with a maintenance free life time lubrication system
Provides flexibility with an optional mounting position adaptable to various setups
Designed for effective load carrying capable of handling both horizontal and vertical forces
Complies with environmental standards making it suitable for sensitive applications
Enables smooth operation with minimal backlash in all directions
