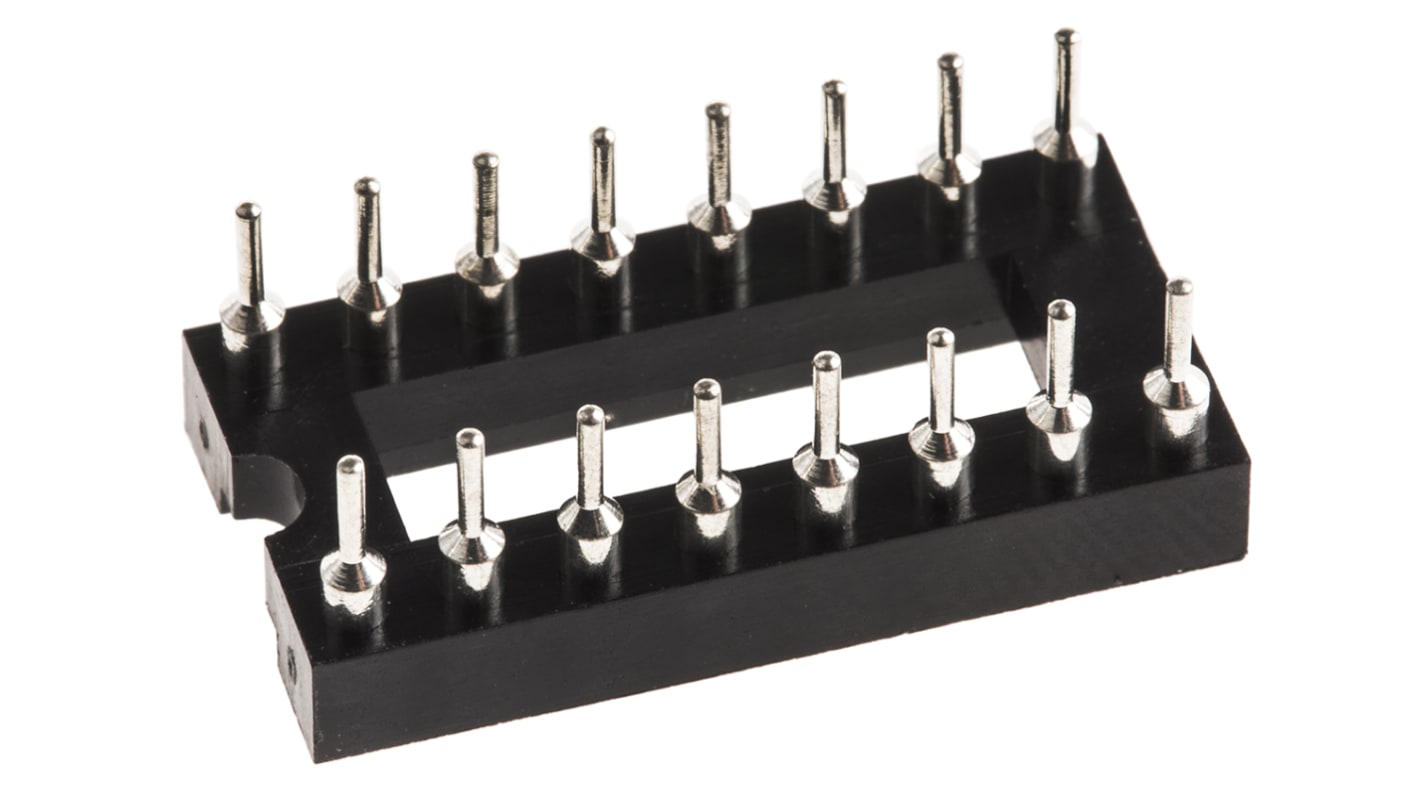

    ASSMANN WSW 2.54mm Pitch Vertical 16 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A

    RS庫存編號:
    674-2485P
    製造零件編號:
    AR 16 HZL-TT
    製造商:
    ASSMANN WSW
    ASSMANN WSW
    查看所有DIL Sockets
    3050 現貨庫存,可於6工作日發貨。
    Add to Basket
    單位

    已增加

    單價(不含稅) 個 (以每管裝提供)

    TWD32.10

    (不含稅)

    TWD33.70

    (含稅)

    單位Per unit
    500 - 2490TWD32.10
    2500 +TWD30.80
    包裝方式:
    RS庫存編號:
    674-2485P
    製造零件編號:
    AR 16 HZL-TT
    製造商:
    ASSMANN WSW

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

    Assmann 2.54mm Open Frame IC DIP Sockets with Turned Pin Contacts


    A range of open frame IC DIP sockets with a 2.54mm pitch. These 2.54mm PCB through hole mount IC DIP sockets have a black UL94V-0 PBT insulator and tin plated turned pin contacts.



    規格

    屬性
    Number of Contacts16
    Mounting TypeThrough Hole
    Pin TypeTurned
    Pitch2.54mm
    Row Width7.62mm
    Frame TypeOpen Frame
    Termination MethodSolder
    Contact PlatingTin
    Current Rating3A
    OrientationVertical
    Length20.32mm
    Width10.16mm
    Depth3mm
    Dimensions20.32 x 10.16 x 3mm
    Maximum Operating Temperature+105°C
    Housing MaterialPBT
    Contact MaterialBrass, Phosphor Bronze
    Minimum Operating Temperature-40°C
    Voltage Rating100 V ac
