    Wurth Elektronik, WR-DC Right Angle DC Socket Rated At 5.0A, 24.0 V, PCB Mount, length 9.0mm, Gold, Tin

    Wurth Elektronik
    RS庫存編號:
    122-4882
    製造零件編號:
    694108106102
    製造商:
    Wurth Elektronik

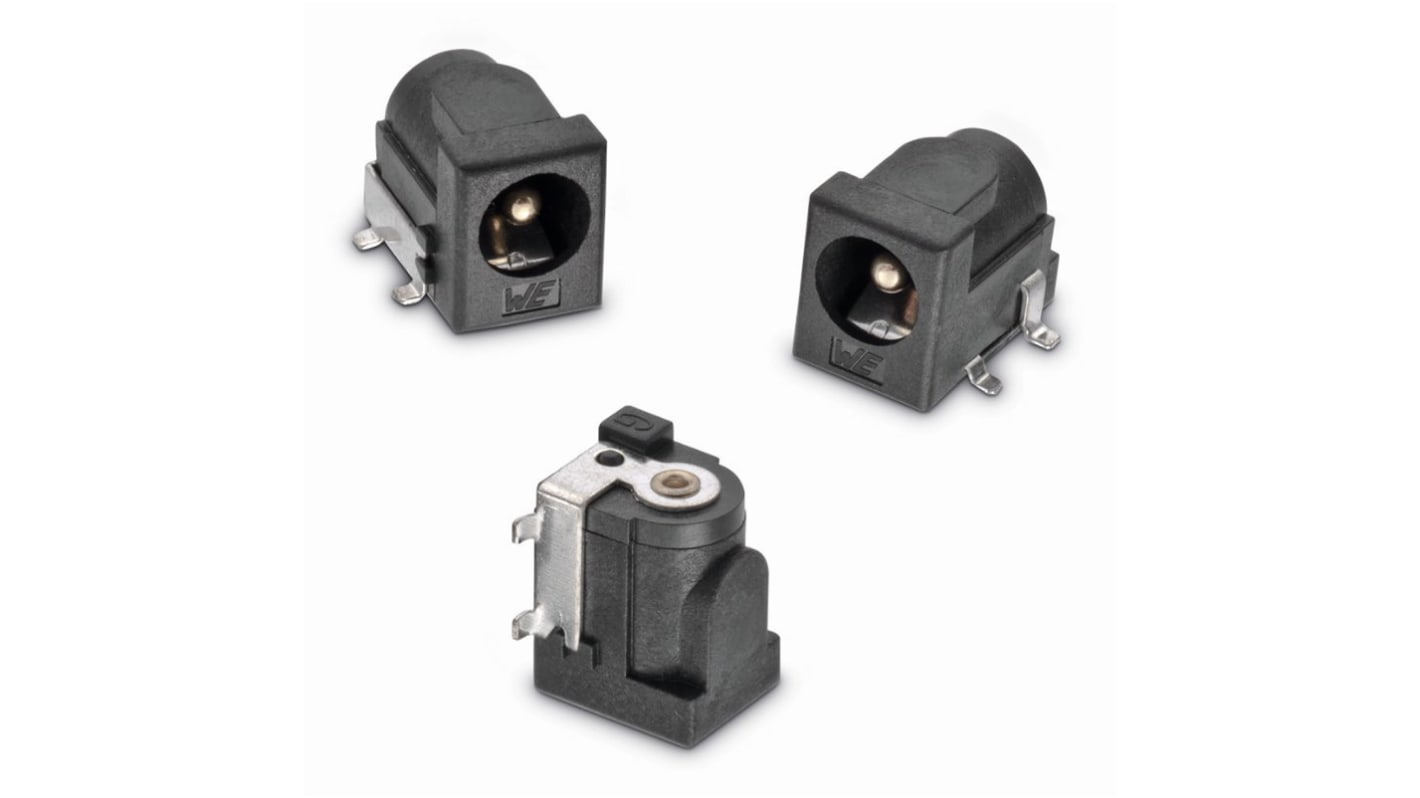

    此圖片僅供參考,請參閲產品詳細資訊及規格

    查看所有DC Power Connectors
    本地庫存暫不足,貨期請向RS查詢
    Add to Basket
    單位

    已增加

    單價(不含稅) /個 (每包:5個)

    TWD52.40

    (不含稅)

    TWD55.02

    (含稅)

    單位Per unitPer Pack*
    5 - 60TWD52.40TWD262.00
    65 - 120TWD51.20TWD256.00
    125 +TWD50.60TWD253.00
    * 參考價格
    RS庫存編號:
    122-4882
    製造零件編號:
    694108106102
    製造商:
    Wurth Elektronik

    產品概覽和技術數據資料表


    法例與合規


    產品詳細資訊

    Wurth WR-DC SMT Mount DC Power Jacks - 6.4 mm Barrel Diameter


    PCB SMT mount DC power jacks or barrel connectors with a 6.4mm barrel diameter. These SMT mount right angle DC power jacks have an internal normally closed single switch and internal pin diameters of 2.05 mm and 2.55 mm. The stamped contacts of these DC power jacks are gold plated and the housings are made from black UL94-V0 PA9T. Board guides are incorporated into the bottom of the housing to aid positioning on the PCB. Stock numbers 122-4878 and 122-4882 also have four soldering pads.

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Plugs & Sockets


    Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

    規格

    屬性
    DC Power Connector TypeDC Socket
    Current Rating5.0A
    Body OrientationRight Angle
    Voltage Rating24.0 V
    Length9.0mm
    Width16.0mm
    Mounting TypePCB Mount
    Pin Diameter1.4mm
    Contact PlatingGold, Tin
    Contact MaterialCopper Alloy
    SeriesWR-DC
