Ruland Jaw Coupling, 51mm Outside Diameter, 14mm Bore, 61mm Length Coupler

查看所有Flexible Couplings
可享批量折扣

小計（1 件）*

TWD3,123.00

(不含稅)

TWD3,279.15

(含稅)

Add to Basket
選擇或輸入數量
有庫存
  • 14 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4TWD3,123.00
5 - 9TWD3,029.00
10 +TWD2,935.00

* 參考價格

RS庫存編號:
174-7252
製造零件編號:
MJCC51-14-A
製造商:
Ruland
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Ruland

Coupling Types

Jaw Coupling

Bore

14mm

Outside Diameter

51mm

Length

61mm

COO (Country of Origin):
US

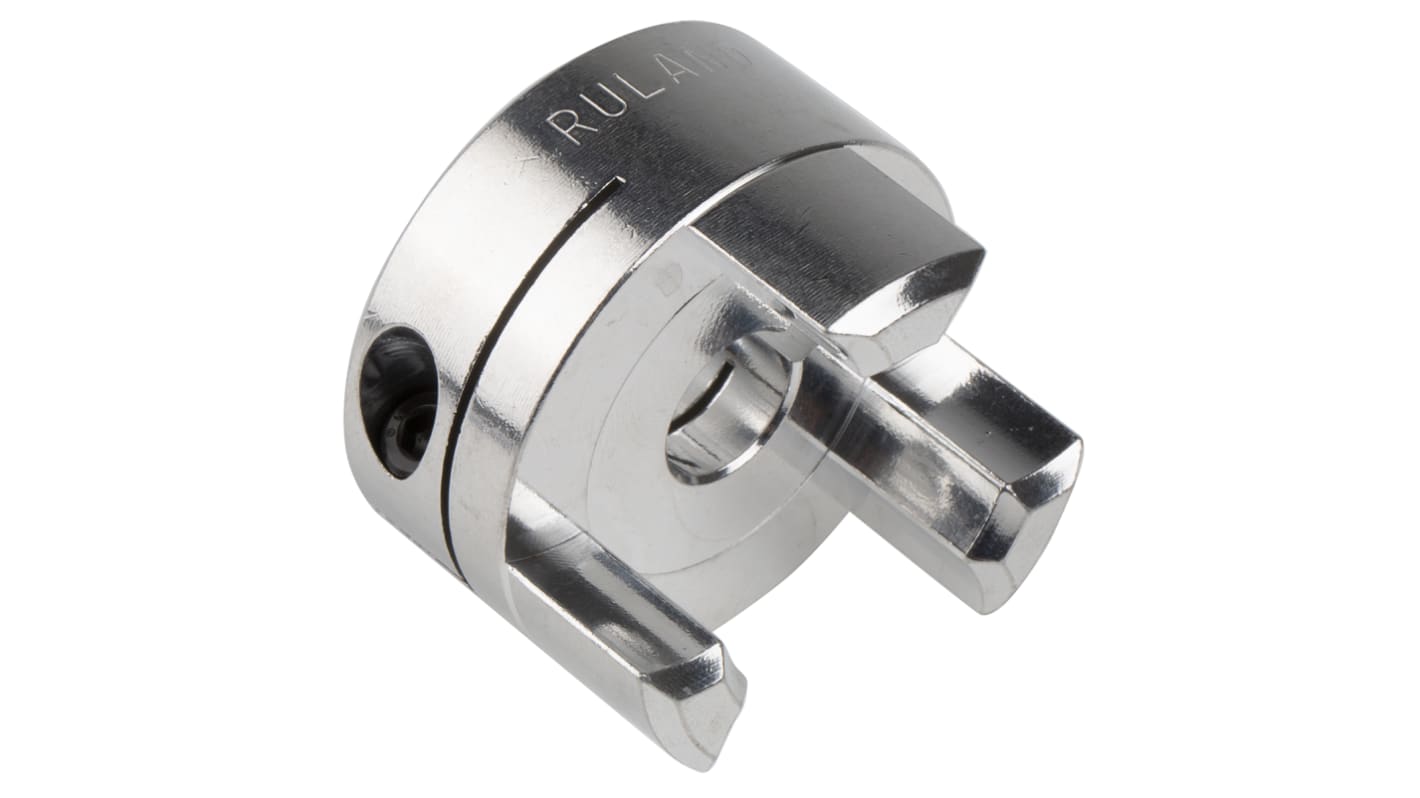

Ruland Coupling


The Ruland jaw coupling hub has a 51mm OD, 14mm bore, 5mm keyway and 20.8mm length with clamp fastening. This is readily accommodated by any combination of axial motion, angular and parallel misalignment. It comprises of a three-piece design consisting of two aluminium hubs and an elastomeric insert, called the spider. This design allows a highly customizable coupling that easily combines clamp or set screw hubs. Its balanced design reduces vibrations at high speed. This product has a key bore.

Features and Benefits


• Zero backlash
• Hardware is metric and test exceeds DIN standard for high torque capabilities
• Dampening characteristics of the spider increase system performance and minimize component wear
• Maximum speed of 8000rpm
• Temperature ranges between -23°C and 82°C
• Low inertia coupling
• Lightweight
• Made from aluminium

Applications


• Stepper and servo drives
• Encoders

Certifications


• REACH certification
• Conflict Minerals compliant
• DIN 912 12.9
• ISO9001:2015
