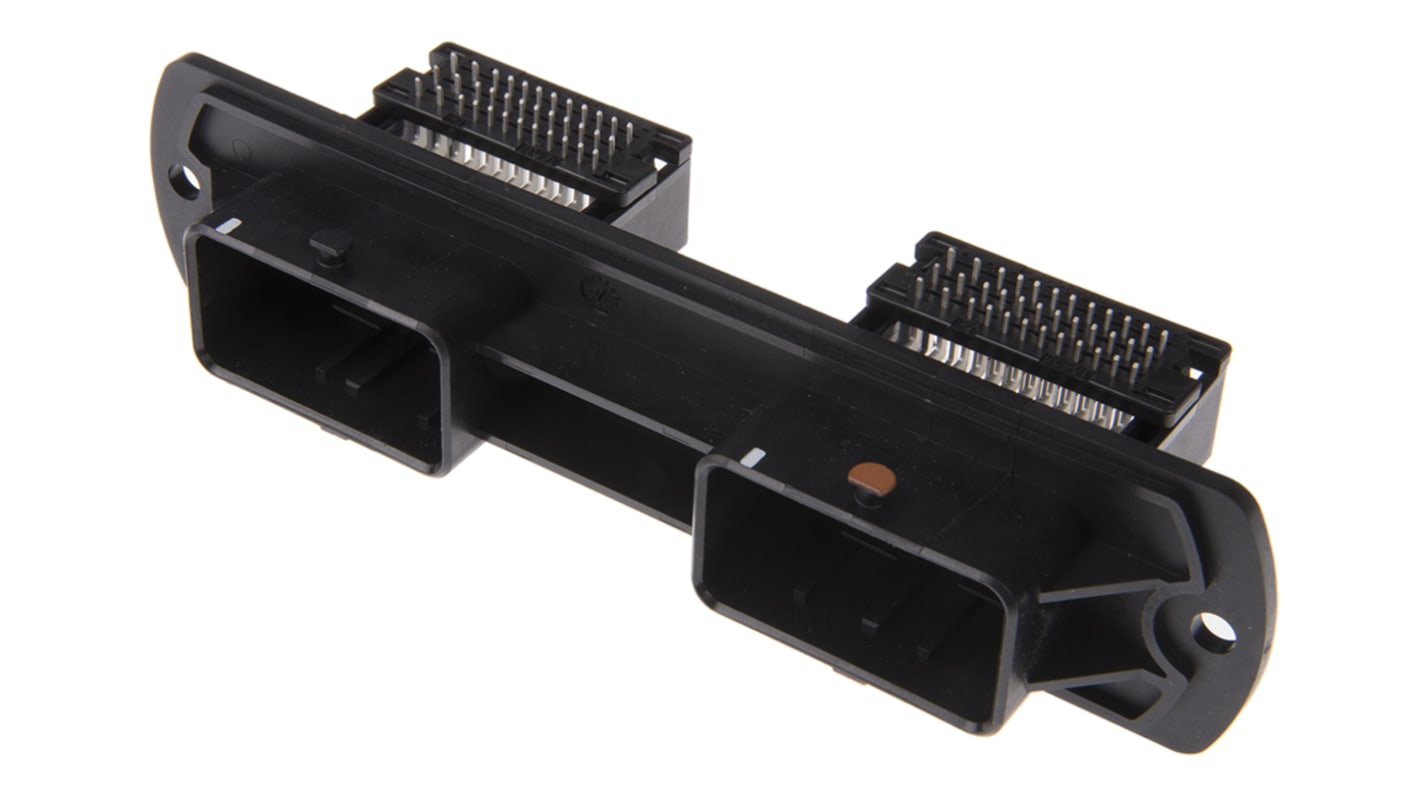

    Molex, CMC Automotive Connector Plug 96 Way, Solder Termination

    RS庫存編號:
    723-9331
    製造零件編號:
    36638-0014
    製造商:
    Molex
    Molex
    查看所有Automotive Connectors
    當前暫無庫存,可於21/03/2023發貨,6 工作日送達。
    Add to Basket
    單位

    已增加

    單價(不含稅) 個

    TWD618.00

    (不含稅)

    TWD648.90

    (含稅)

    單位Per unit
    1 - 4TWD618.00
    5 +TWD611.00
    包裝方式:
    RS庫存編號:
    723-9331
    製造零件編號:
    36638-0014
    製造商:
    Molex
    COO (Country of Origin):
    IN

    法例與合規

    COO (Country of Origin):
    IN

    產品詳細資訊

    CMC Hybrid Connector, PCB Headers


    These CMC hybrid PCB Wire-to-Board Headers are right angle mount and can hold up to three different terminal sizes; 0.63mm, 1.50mm and 2.80 mm. For mating connectors see stock numbers 723-9347 or 723-9359 or 774-8144 typically.



    Molex CMC Hybrid Connectors


    規格

    屬性
    Number of Contacts96
    TypeHeader
    GenderMale
    Number of Rows4
    Current Rating6A
    Mounting TypeThrough Hole
    SeriesCMC
    ColourBlack
    Termination MethodSolder
    Housing MaterialPET
    Contact MaterialBrass
    Contact PlatingTin
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+100°C
    Series Number36638
