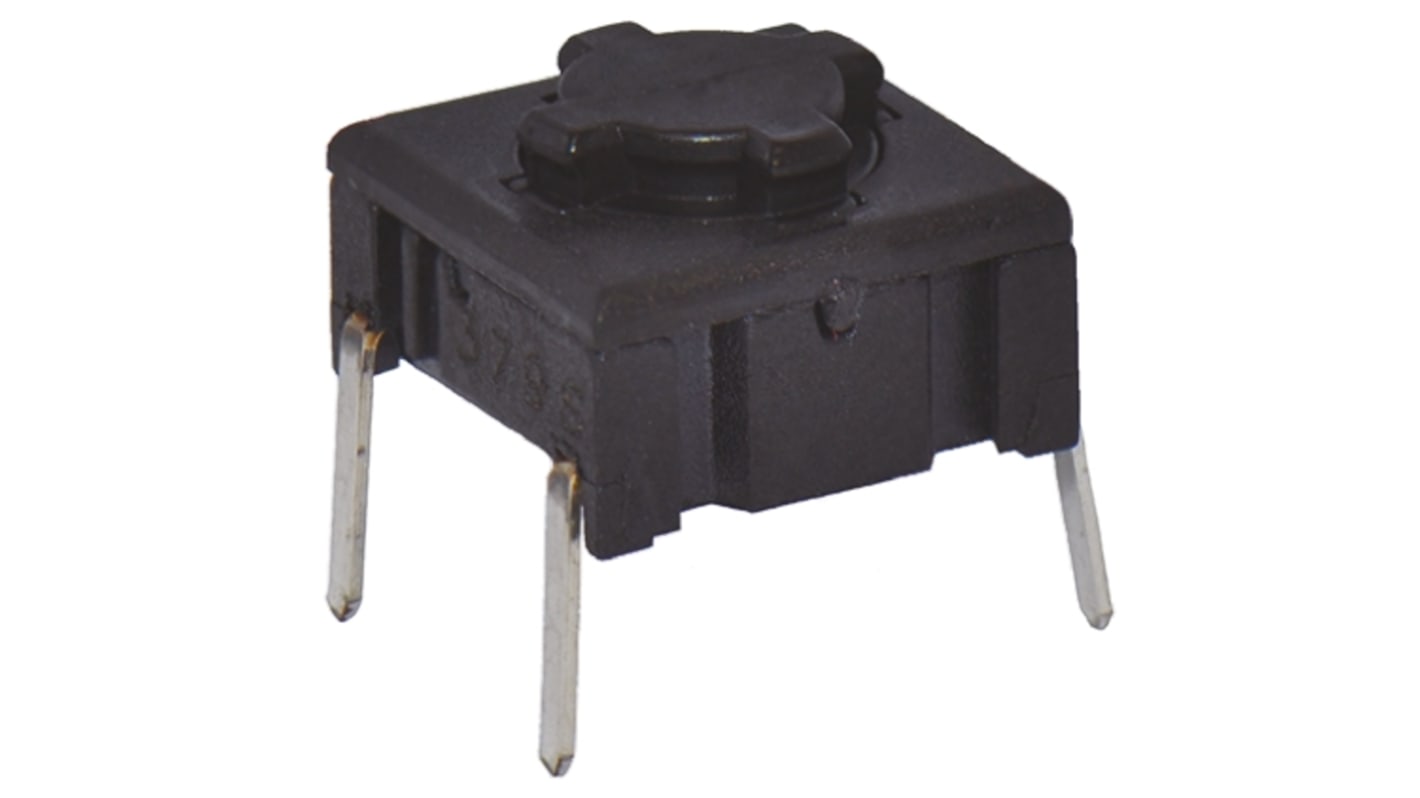

IP67 Cap Tactile Switch, SPST 50 mA @ 24 V dc
- RS庫存編號:
- 765-1510
- 製造零件編號:
- 5ETH935
- 製造商:
- MEC
172 現貨庫存，可於6工作日發貨。
已增加
單價（不含稅） 個 (每包:2個)
TWD74.00
(不含稅)
TWD77.70
(含稅)
| 單位 | Per unit | Per Pack* |
| 2 + | TWD74.00 | TWD148.00 |
| * 參考價格 | ||
- RS庫存編號:
- 765-1510
- 製造零件編號:
- 5ETH935
- 製造商:
- MEC
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DK
產品詳細資訊
MEC Multimec® 5E Series Switches
The MEC Multimec® 5E series of tactile switches feature improved cap retention system and actuator over previous Multimec® tactile switches. The MEC Multimec® 5E series is an ideal solution to a wide range of application requirements.
3.5N actuation force
Rated for 10 million lifecycles
IP67 sealed
Rated for 10 million lifecycles
IP67 sealed
規格
屬性 | 值 |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder, Tab |
| Switch Operation | Momentary |
| Actuator Type | Cap |
| Length | 10.10mm |
| Dimensions | 10.10 x 10.10 x 6mm |
| Contact Current Rating | 50 mA @ 24 V dc |
| IP Rating | IP67 |
| Operating Force | 3.5 N |
| Height | 6mm |
| Operating Temperature Range | -40 → +160°C |
| Contact Material | SnCu+2μNI+1μAu, SnCu+2μNI+3μAg |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 10000000Cycles |
| Maximum Operating Temperature | +160°C |
