    RS PRO Blue Insulated Female Spade Connector, Double Crimp, 6.35 x 0.8mm Tab Size, 1.5mm² to 2.5mm²

    RS PRO
    RS庫存編號:
    267-4170
    製造商:
    RS PRO
    查看所有Spade Connectors
    1800 "將在 2 工作日發貨 (本地庫存) "
    300 在6 工作日內發貨 (海外庫存)
    Add to Basket
    單位

    已增加

    單價(不含稅) /個 (每包:100個)

    TWD9.00

    (不含稅)

    TWD9.45

    (含稅)

    單位Per unitPer Pack*
    100 - 400TWD9.00TWD900.00
    500 - 2400TWD8.80TWD880.00
    2500 - 4900TWD8.60TWD860.00
    5000 - 24900TWD8.40TWD840.00
    25000 +TWD6.90TWD690.00
    * 參考價格
    RS庫存編號:
    267-4170
    製造商:
    RS PRO

    產品概覽和技術數據資料表


    法例與合規

    COO (Country of Origin):
    TW

    產品詳細資訊

    RS Pro Fully Insulated Double Crimp Receptacle Terminals

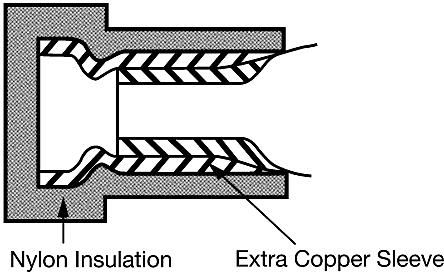

    From RS PRO a high-quality fully insulated crimp receptacle terminal sometimes known as a female quick disconnect. Female crimp receptacles are a type of electrical wiring connector which, when mated with a male tab connector (or male quick disconnect), provide a fast and reliable interconnect between two wires. The body of the connector is made from tin plated brass and features an additional internal copper sleeve. This copper sleeve strengthens the barrel and provides a robust and secure crimp. The sleeve also protects the wire against stress and high vibration. The main feature of this female receptacle is the insulation which covers the entire length of the connector body. This insulation provides protection against electric shock and acts as a ’mini’ enclosure to protect the connection from dirt, grease, liquids and other contaminants when mated.

    What is a Crimp Receptacle Terminal?


    A crimp receptacle terminal is a solder-less electrical connection and is used to terminate stranded wire by inserting the stripped end of the wire into part of the terminal. This terminal is then compressed around the wire.

    Crimp Terminals from RS Pro


    • Provides quick and easy connection and disconnection
    • Fully insulated for protection against electrical shock and shorting from exposed leads. Also provides protection to the electrical connection
    • Double crimp design with an internal copper sleeve for added strength and robust crimp joint
    • Tin plating for resistance to corrosion, added strength and excellent conductivity
    • Colour coded insulation for easy identification of terminal size
    • Funnelled insulation design allows easy wire insertion

    From RS Pro, a range of fully insulated double crimp female receptacle terminals made from brass with a copper sleeved barrel and flared vinyl or nylon insulation. These can be used as an electrical crimp connector or as cable crimps, crimp pins or any other types of crimping terminals. These shrouded female receptacle crimp connectors are colour coded for use with different wire sizes and accept various tab sizes.

    What are the different types of tab sizes?


    • Red 0.5 - 1.5 mm²
    • Blue 1 - 2.6 mm²
    • Yellow 2.5 - 6.5 mm²"

    Application information


    Crimp terminals allow the wires to be easily terminated to screw terminals, quick-disconnect/ spade-foot / fast-on type terminals, wire splices and various types of combinations. For suitable crimp tool, see stock number 267-3133

    How to Crimp a Receptacle Connector


    Strip the end of the wire and cut it to the same length as the terminal. Insert the stripped end into the barrel making sure no bare wire is visible. The connector is then ready to be crimped on to the end of the wire. Pliers or a ratchet tool can be used but, for a better quality crimp, it is better to use a ratchet crimping tool. A ratchet crimping tool is preferable as the handles will remain locked until a full crimp cycle is completed which will prevent partial crimps. Insert the barrel of the receptacle terminal into the appropriate crimping section (indicated by sizes marked on the tool). Squeeze the tool handles together until the ratchet releases. The crimped receptacle terminal is now ready for mating with a male tab terminal to form a secure electrical connection.

    Approvals

    UL Listed

    Crimp Tooliing


    For suitable crimp tool see stock number 125-1964


    RS Pro Range

    規格

    屬性
    TypeDouble Crimp
    Spade Connector TypeReceptacle
    GenderFemale
    Minimum Wire Size mm²1.5mm²
    Maximum Wire Size mm²2.5mm²
    Tab Size6.35 x 0.8mm
    InsulationInsulated
    Minimum Wire Size AWG16AWG
    Maximum Wire Size AWG14AWG
    Termination MethodCrimp
    ColourBlue
    Contact MaterialBrass
    Contact PlatingTin
    Insulation MaterialNylon
    Overall Length21.5mm
    Shrouded/UnshroudedShrouded
