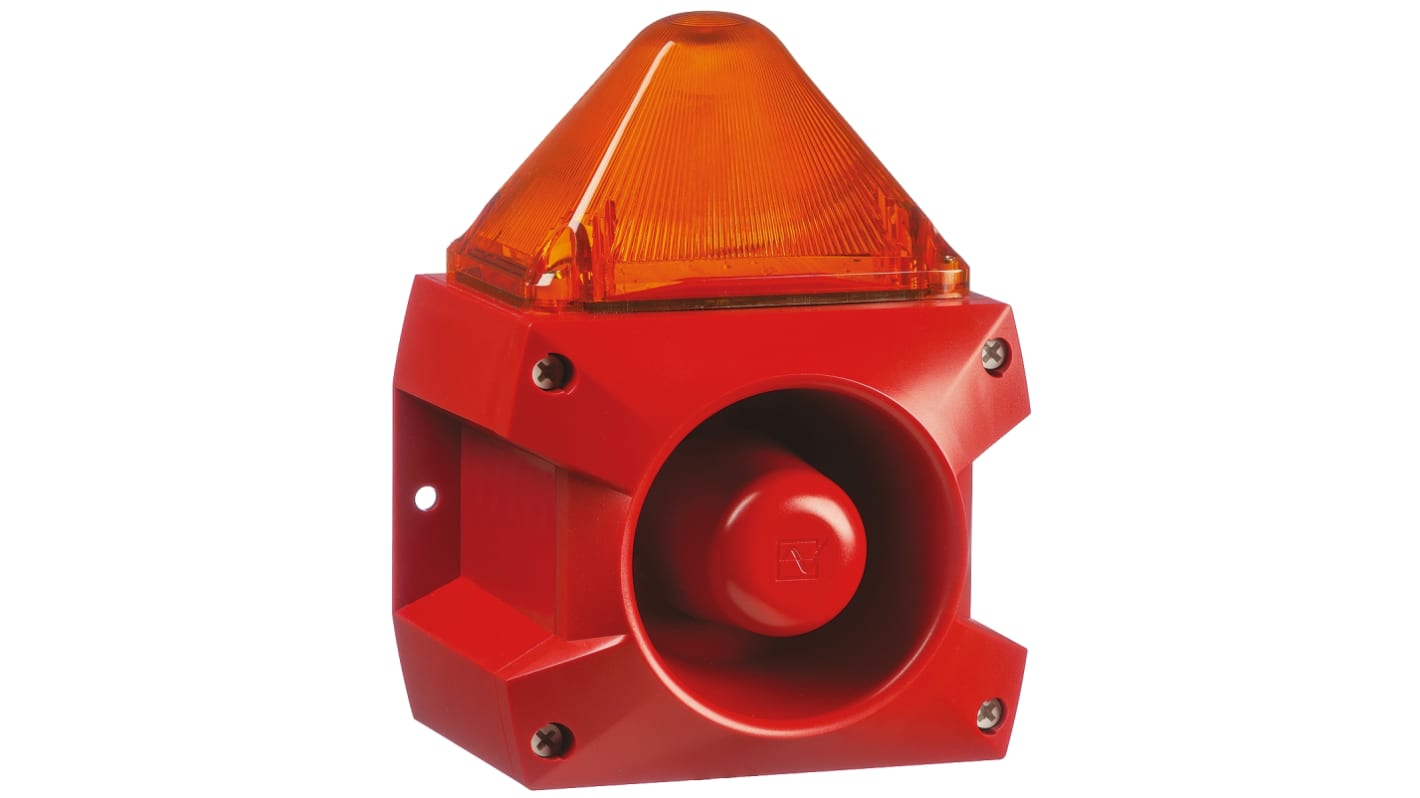

Pfannenberg PA X 5-05 Series Amber Sounder Beacon, 24 V dc, Base Mount, 100dB at 1 Metre
- RS庫存編號:
- 846-3709
- 製造零件編號:
- 23351804000
- 製造商:
- Pfannenberg
當前暫無庫存，可於23/07/2024發貨，6 工作日送達。
已增加
單價（不含稅） 個
TWD12,218.00
(不含稅)
TWD12,828.90
(含稅)
| 單位 | Per unit |
| 1 + | TWD12,218.00 |
替代產品
該產品我們目前不提供。 這些是我們推薦的替代產品。
- RS庫存編號:
- 846-3709
- 製造零件編號:
- 23351804000
- 製造商:
- Pfannenberg
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Pfannenberg Patrol Flashing Sounder Beacons, PA-X-5-05
The Patrol PA-X-5-05 is an electronic sounder beacon with a 105 dB output and a flashing xenon light effect. It has 80 alarm tones and a 5J flash. The PA X-5-05 has a large signalling range and is safe and easy to install.
Rectangular PC/ABS blend housing with pyramid style PC lens
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
Installation options with external lugs or internal holes
Pre-wired sounder and light ex works
Corresponding light intensity available for every sound pressure level
80 alarm tones, 105 dB
Visual covering distance of 32 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
5J flash
10 year warranty
Safe - an incorrect installation is virtually impossible
Easy - significantly shorter assembly and installation times
Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
Installation options with external lugs or internal holes
Pre-wired sounder and light ex works
Corresponding light intensity available for every sound pressure level
80 alarm tones, 105 dB
Visual covering distance of 32 m
IK08 Impact-proof housing
IP66 protection according to EN 60529
5J flash
10 year warranty
Approvals
UL, GL.
規格
屬性 | 值 |
|---|---|
| Supply Voltage | 24 V dc |
| Lens Colour | Amber |
| Mounting Style | Base Mount |
| Current Type | DC |
| Light Effect | Flashing |
| Sounder Type | Electronic |
| Decibels at 1 Metre | 100dB |
| Series | PA X 5-05 |
| Bulb Type | Xenon |
| Housing Colour | Red |
| Number Of Tones | 80 |
| Housing Material | Polycarbonate/ABS |
| Minimum Temperature | -40°C |
| Maximum Temperature | +55°C |
