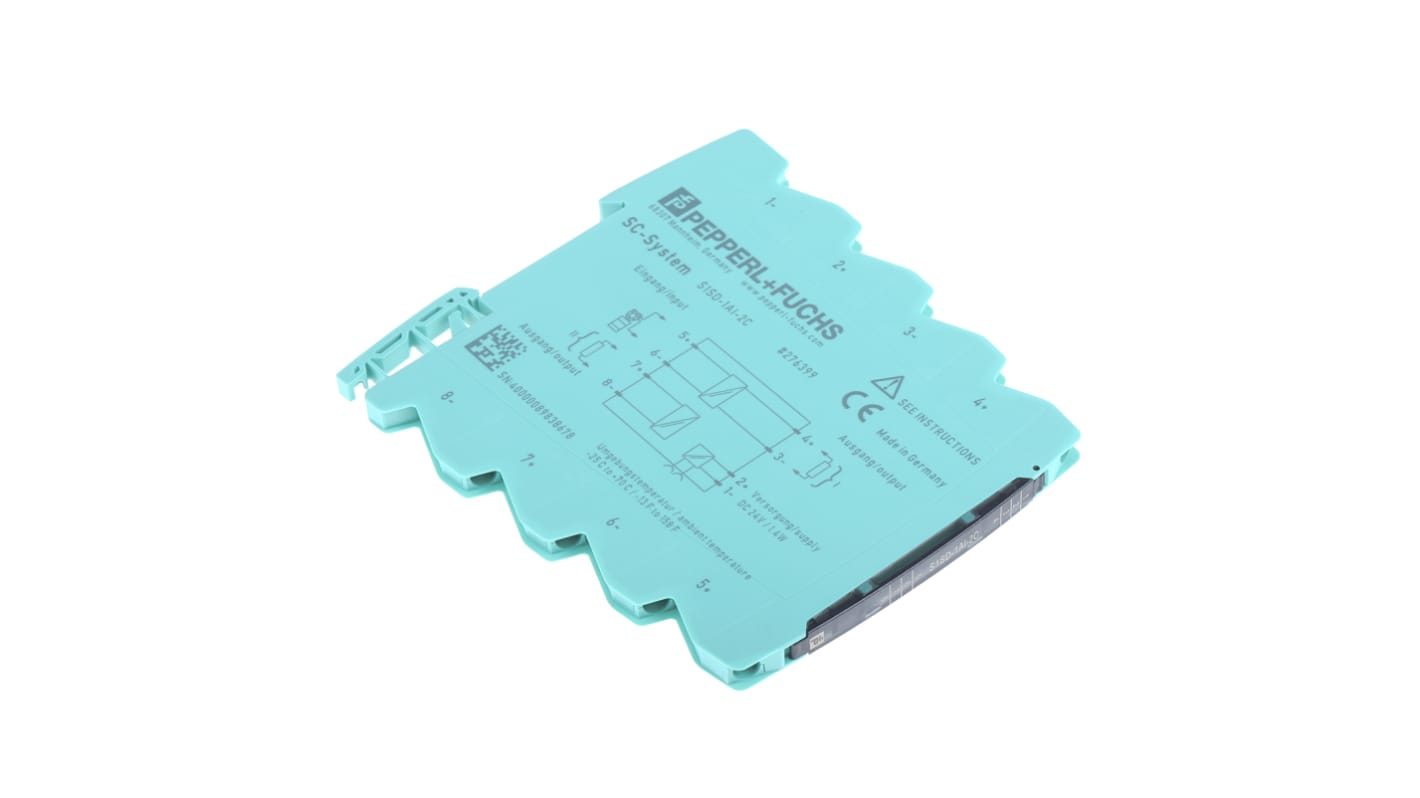

Pepperl + Fuchs S1SD Series Signal Conditioner, Current Input, Current Output, 16.8 → 31.2V dc Supply
- RS庫存編號:
- 134-8127
- 製造零件編號:
- S1SD-1Ai-2C
- 製造商:
- Pepperl + Fuchs
當前暫無庫存，可於03/06/2024發貨，6 工作日送達。
已增加
單價（不含稅） 個
TWD6,872.00
(不含稅)
TWD7,215.60
(含稅)
| 單位 | Per unit |
| 1 + | TWD6,872.00 |
- RS庫存編號:
- 134-8127
- 製造零件編號:
- S1SD-1Ai-2C
- 製造商:
- Pepperl + Fuchs
產品概覽和技術數據資料表
法例與合規
豁免
- COO (Country of Origin):
- DE
產品詳細資訊
Pepperl+Fuchs SC-System Signal Conditioners
Pepperl + Fuchs SC-System signal conditioners are especially designed for general purpose applications and ensure reliable process communication. High-quality isolation, an extended temperature range, and an extremely compact housing design characterise the signal conditioner range.
The SC-System offers powerful modules for analogue and digital measuring signals – from the isolating amplifier to the highly functional temperature converter to switch amplifier. Matching accessories enable easy and fast power supply, installation and, configuration of signal conditioners.
The SC-System combines the most powerful features of comparable devices in one product family.
Features and Benefits
Quick and easy mounting
Reduced wiring effort due to Power Bus
Minimal space requirements due to 6 mm module width and 97 mm height
Extended temperature range from -25°C to 70°C
High-quality galvanic isolation with 300 V operating- / 3 kV test voltage
Optimised housing design for easy handling
Pepperl+Fuchs Signal Conditioners
規格
屬性 | 值 |
|---|---|
| Module Type | Transmitter Power Supply |
| Input Signal Type | Current |
| Output Signal Type | Current |
| Input Range | 0 → 20 mA, 4 → 20mA |
| Output Range | 0 → 10 V, 0 → 20 mA, 2 → 10 V, 4 → 20mA |
| Supply Voltage | 16.8 → 31.2V dc |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -25 → +70°C |
| Series | S1SD |
| Termination | Screw |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +70°C |
