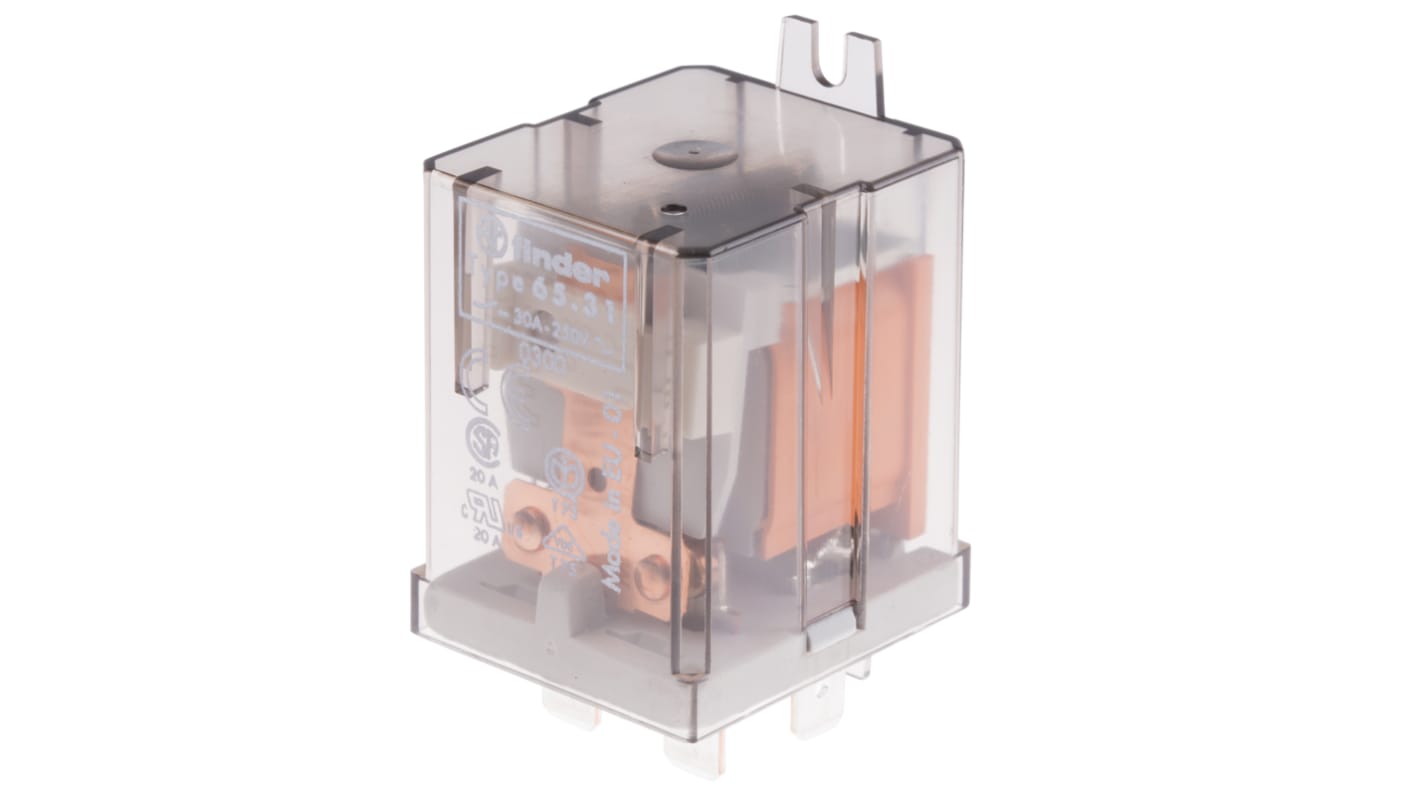

Finder Flange Mount Power Relay, 110V ac Coil, 30A Switching Current, SPST
- RS庫存編號:
- 245-2071
- 製造零件編號:
- 65.31.8.110.0300
- 製造商:
- Finder
查看所有Power Relays
52 現貨庫存，可於6工作日發貨。
單價（不含稅） 個
TWD765.00
(不含稅)
TWD803.25
(含稅)
| 單位 | Per unit |
| 1 - 14 | TWD765.00 |
| 15 - 49 | TWD717.00 |
| 50 + | TWD712.00 |
- RS庫存編號:
- 245-2071
- 製造零件編號:
- 65.31.8.110.0300
- 製造商:
- Finder
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- IT
產品詳細資訊
65 Series Industrial Relay
Cover incorporates mounting brackets
Faston 250 (6.3x0.8mm) terminals
Contact Material: AgCdO
Isolation Coil To Contact 4000V (1.2/50μs)
H 51.5,W 32.5,D 36.5
Operating Temperature: -40°C to +50°C
Faston 250 (6.3x0.8mm) terminals
Contact Material: AgCdO
Isolation Coil To Contact 4000V (1.2/50μs)
H 51.5,W 32.5,D 36.5
Operating Temperature: -40°C to +50°C
Approvals
UL recognised component for Canada and US, VDE
Approvals
UL; CSA; VDE
規格
| 屬性 | 值 |
| Coil Voltage | 110V ac |
| Contact Configuration | SPST |
| Mounting Type | Flange Mount |
| Switching Current | 30A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Quick Connect |
| Maximum Switching Voltage AC | 250V ac |
| Length | 62.2mm |
| Coil Resistance | 1.6 kΩ |
| Coil Power | 2.2W |
| Depth | 32.2mm |
| Isolation Coil To Contact | 4kV |
| Maximum Operating Temperature | +75°C |
| Series | 65 Series |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Height | 36.5mm |
| Maximum Switching Power AC | 7.5 kVA |
| Application | Power |
