- RS庫存編號:
- 746-6463
- 製造零件編號:
- 6AV2124-0MC01-0AX0
- 製造商:
- Siemens
查看所有HMI Displays
1 "將在 2 工作日發貨 (本地庫存) "
7 在6 工作日內發貨 (海外庫存)
59 在6 工作日內發貨 (海外庫存)
單價(不含稅) 個
TWD116,813.00
(不含稅)
TWD122,653.65
(含稅)
單位 | Per unit |
1 + | TWD116,813.00 |
- RS庫存編號:
- 746-6463
- 製造零件編號:
- 6AV2124-0MC01-0AX0
- 製造商:
- Siemens
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

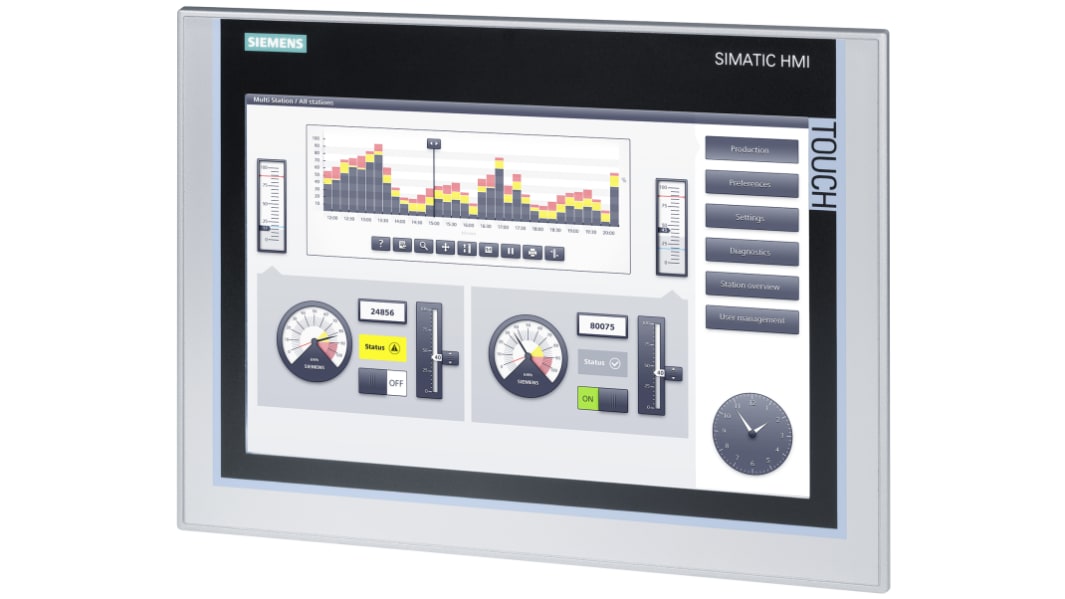

Siemens Touchscreen HMI, TFT Display Type, 12MB Onboard Memory - SIMATIC TP1200 Series - 6AV2124-0MC01-0AX0
Take control of your industrial machinery with this touchscreen HMI from Siemens. It lets you visualise and manage an automated process via an interactive TFT display to keep your system running efficiently. The high 1280 x 800 resolution means details are sharply defined for maximum readability. An onscreen alphanumeric keyboard makes it simple to adjust operations as needed. For flexibility, this device offers multiple interface options, including USB 2.0, USB Mini B and a combined RS 422/485 port. You'll find touchscreens like this in traffic control and food processing applications.
Features & Benefits
Mountable horizontally or vertically to suit your location
PROFIenergy feature means it shuts down automatically when idle to conserve energy
LED indicator makes it easy to check the Ethernet connection status
Wide operating temperature range between 0°C and +40°C so it withstands challenging conditions
32 language settings make it widely accessible in a diverse workplace
PROFIenergy feature means it shuts down automatically when idle to conserve energy
LED indicator makes it easy to check the Ethernet connection status
Wide operating temperature range between 0°C and +40°C so it withstands challenging conditions
32 language settings make it widely accessible in a diverse workplace
Is this product waterproof?
Yes – the screen carries an IP65 rating, meaning it's protected against high-pressure jets from all directions.
規格
屬性 | 值 |
Manufacturer Series | TP1200 |
Display Type | TFT |
Display Size | 12.1 in |
Display Resolution | 1280 x 800pixels |
Display Colour | Colour |
Number of Ports | 4 |
Interface | PROFINET |
Port Type | 3 x USB, RS485 |
Processor Type | X86 |
Onboard Memory | 12 MB |
Backlighting | Yes |
Supply Voltage | 24 V dc |
Hazardous Area Certification | ATEX, IECEx |
IP Rating | IP20, IP65 |
Minimum Operating Temperature | 0°C |
Length | 241mm |
Depth | 70.5mm |
Width | 330mm |
Dimensions | 241 x 330 x 70.5 mm |
Maximum Operating Temperature | +50°C |
