Huco Flexible Coupling Flector
- RS庫存編號:
- 692-8106
- 製造零件編號:
- 236.13
- 製造商:
- Huco
15 "將在 2 工作日發貨 （本地庫存） "
67 在6 工作日內發貨 (海外庫存)
單價（不含稅） 1 袋 10 套
TWD341.00
(不含稅)
TWD358.05
(含稅)
| Bag(s) | Per Bag | Per unit* |
| 1 - 5 | TWD341.00 | TWD34.10 |
| 6 - 11 | TWD328.00 | TWD32.80 |
| 12 + | TWD315.00 | TWD31.50 |
| * 參考價格 | ||
- RS庫存編號:
- 692-8106
- 製造零件編號:
- 236.13
- 製造商:
- Huco
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

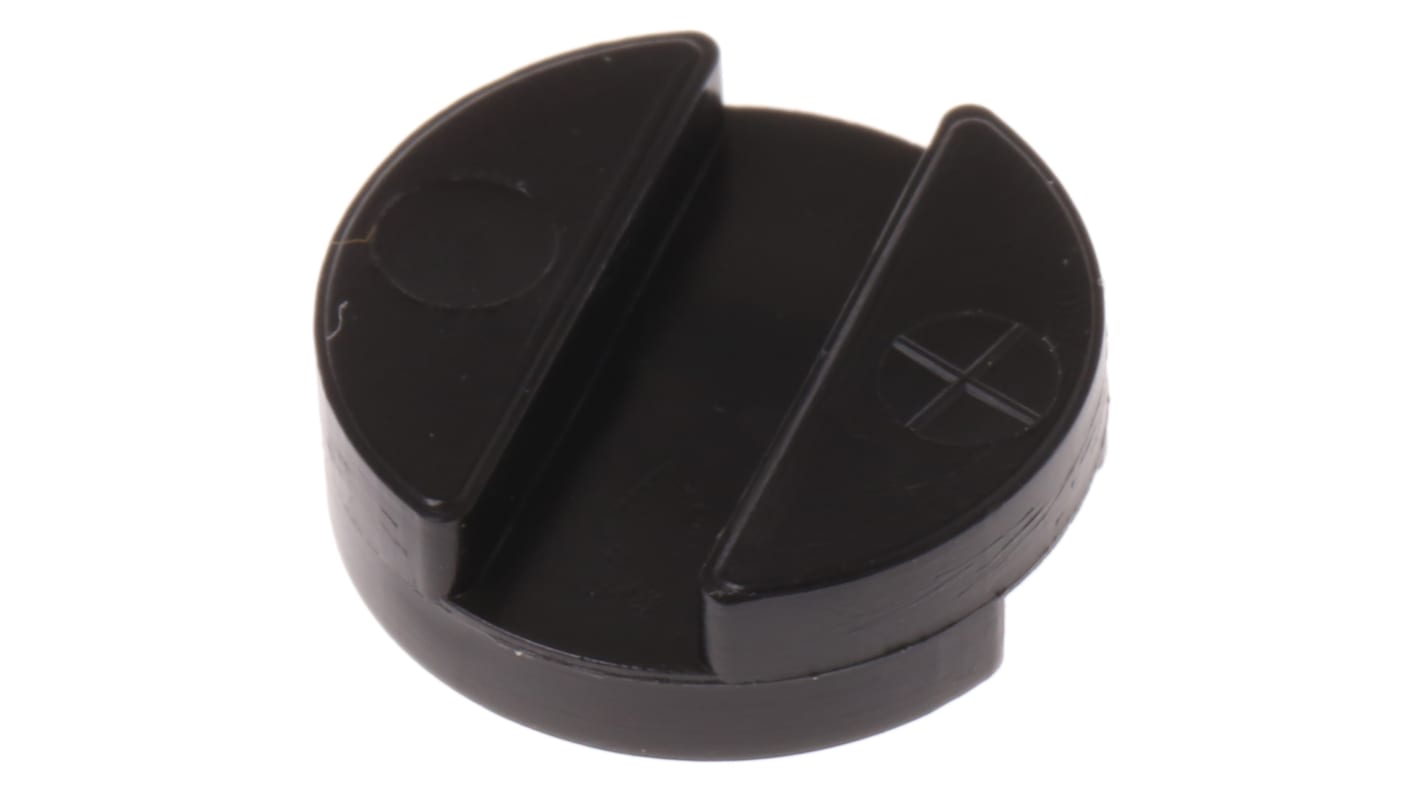

Torque Discs
Acetal discs offer high torsional stifness, good bearing properties, and a long backlash-free life
Nylon 11 discs offer resilience, isolation from noise and vibration, with performance approximately 25% that of acetal torque discs
Nylon 11 discs offer resilience, isolation from noise and vibration, with performance approximately 25% that of acetal torque discs
Huco Oldham Style Couplings
Backlash-free
Can handle large radial shaft misalignment
Constant low bearing side loads
Electrically isolating
Can handle large radial shaft misalignment
Constant low bearing side loads
Electrically isolating
Note
Not sold as an assembled unit. Customer needs to purchase 2x hubs and 1x torque disc.
規格
屬性 | 值 |
|---|---|
| Coupling Types | Oldham Coupling |
| Torque Rating | 0.5Nm |
| Misalignment - Angular | 0.5° |
| Misalignment - Axial | 0.05mm |
| Misalignment - Parallel | 0.1mm |
