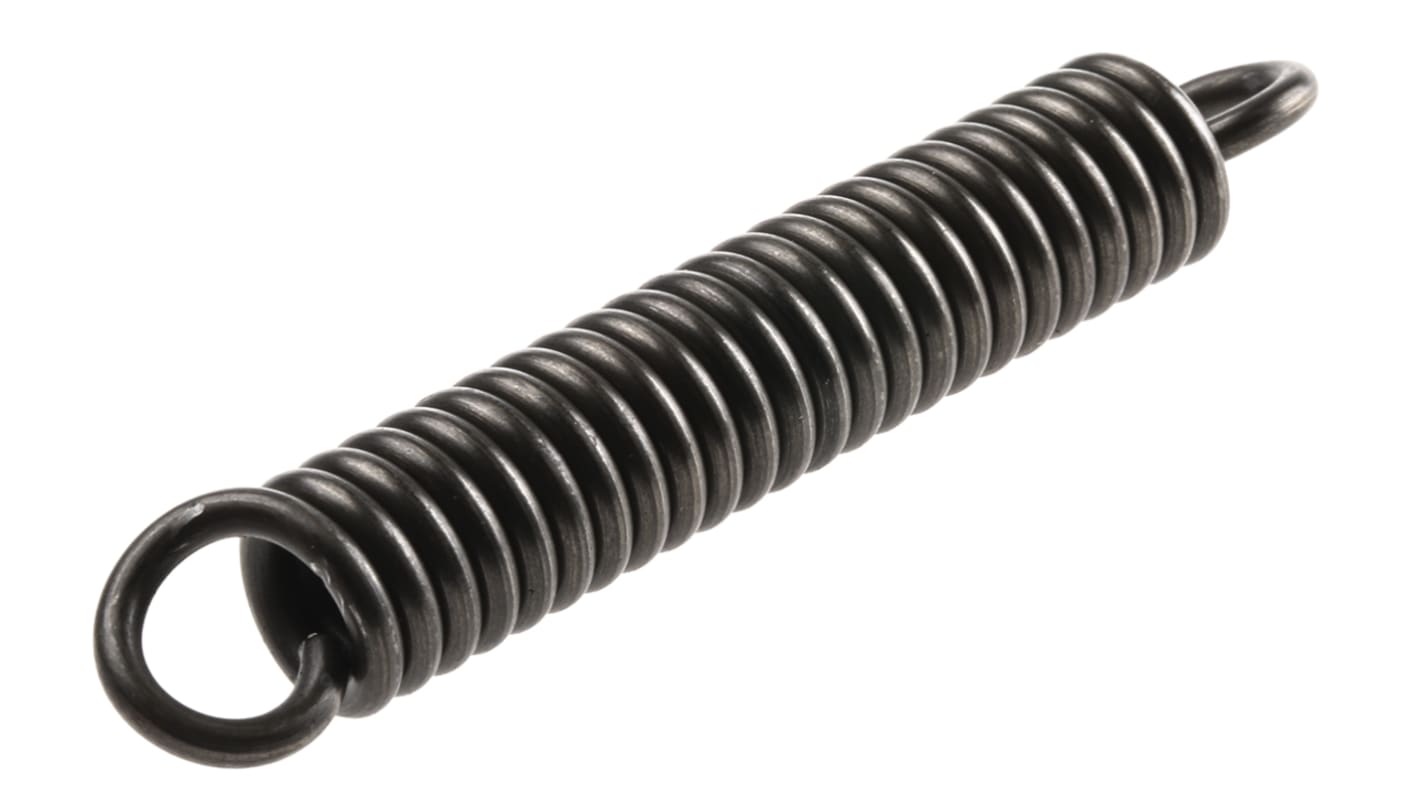

RS PRO Steel Extension Spring, 77.8mm x 13mm
- RS庫存編號:
- 121-359
- 製造商:
- RS PRO
435 現貨庫存，可於6工作日發貨。
已增加
單價（不含稅） 個 (每包:5個)
TWD96.00
(不含稅)
TWD100.80
(含稅)
| 單位 | Per unit | Per Pack* |
| 5 - 20 | TWD96.00 | TWD480.00 |
| 25 + | TWD79.00 | TWD395.00 |
| * 參考價格 | ||
- RS庫存編號:
- 121-359
- 製造商:
- RS PRO
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Music Wire Extension Springs
Manufactured from high tensile strength piano/music wire, with a right-hand (clockwise) helix and looped ends.
Features and Benefits
Attached at both ends
Springs absorb and store energy
Create resistance to pulling force
Initial tension manipulation can achieve individual requirements
Wound to oppose extension
Springs absorb and store energy
Create resistance to pulling force
Initial tension manipulation can achieve individual requirements
Wound to oppose extension
Applications:
Automotive interiors and exteriors
Garage door assemblies
Vise-grip pliers
Carburetors
Trampolines
Washing devices
Farm machinery
Garage door assemblies
Vise-grip pliers
Carburetors
Trampolines
Washing devices
Farm machinery
Standards
Materials to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN2097 Grade 2. Oiled finish.
Music Wire Extension Springs
Manufactured from high tensile strength piano/music wire, with a right-hand (clockwise) helix and looped ends.
Features and Benefits
Attached at both ends
Springs absorb and store energy
Create resistance to pulling force
Initial tension manipulation can achieve individual requirements
Wound to oppose extension
Applications:
Automotive interiors and exteriors
Garage door assemblies
Vise-grip pliers
Carburetors
Trampolines
Washing devices
Farm machinery
Manufactured from high tensile strength piano/music wire, with a right-hand (clockwise) helix and looped ends.
Features and Benefits
Attached at both ends
Springs absorb and store energy
Create resistance to pulling force
Initial tension manipulation can achieve individual requirements
Wound to oppose extension
Applications:
Automotive interiors and exteriors
Garage door assemblies
Vise-grip pliers
Carburetors
Trampolines
Washing devices
Farm machinery
Standards
Materials to DIN17223 Class C or BS1408 CR3. Dimensions conform to DIN2097 Grade 2. Oiled finish.
規格
屬性 | 值 |
|---|---|
| Material | Steel |
| Free Length | 77.8mm |
| Maximum Extended Length | 97.4mm |
| Outside Diameter | 13mm |
| Wire Diameter | 2.5mm |
| Initial Tension | 317N |
| Spring Rate | 13.7N/mm |
