RS PRO Socket RJ11 Connector, Panel Mount, Cat3 1 Port 6P4C -Way
- RS庫存編號:
- 235-4769
- 製造商:
- RS PRO
可享批量折扣
單價 個**
TWD192.00
(不含稅)
TWD201.60
(含稅)
30 現貨庫存,可於6工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 TWD2,857.00 (未稅) 即可享受 免費 送貨服務
單位 | 每單位 |
---|---|
1 - 4 | TWD192.00 |
5 - 9 | TWD187.00 |
10 - 24 | TWD182.00 |
25 + | TWD178.00 |
** 參考價格
- RS庫存編號:
- 235-4769
- 製造商:
- RS PRO

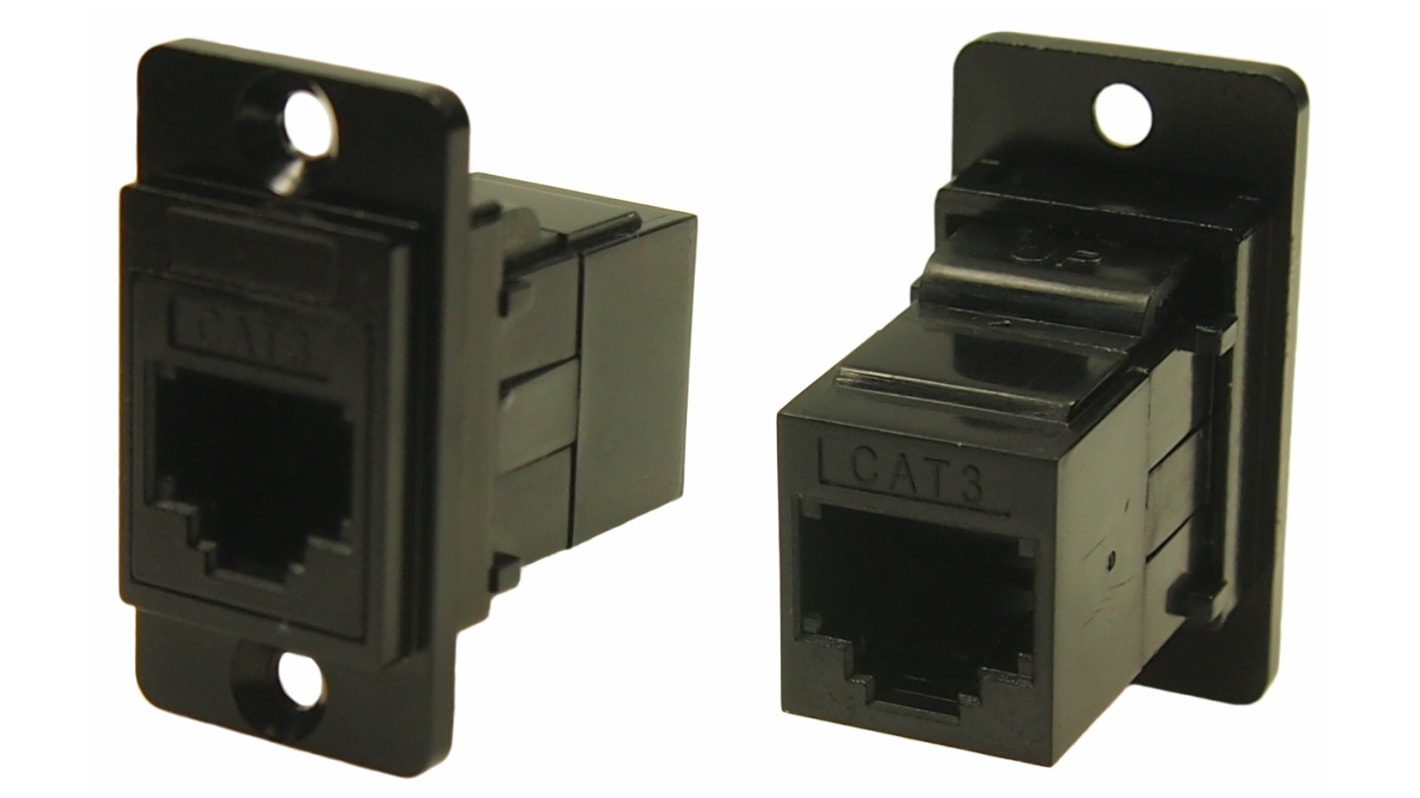

RS PRO Dual Slim RJ11 CAT3 Feedthrough Connector
From RS PRO a range of super high-quality RJ11 feedthrough connectors with female ports. These dual slim Cat3 connectors are commonly used in custom applications where ethernet-based connectivity is required. They have a slim profile so will only take up minimal space, can be front or rear mounted on popular enclosures or rack panel arrangements.
During installation, there is no need for solder or punch termination, simply push-fit through panel cut-out and secure with retaining screws. Dual slim RJ11 connectors are compatible with Cat3 ethernet cables and when combined produce reliable transmissions in telecommunications and networking.
Features and Benefits
- RJ11, Cat3
- Female receptacles
- Panel Mount - front or rear
- Standard rectangular cut-out
- Hole mounts
- Use Cat3 cables
- Low rear profile
- No soldering or punch termination
- Operating temperature: Min -10 °C, Max +60 °C
Material
- RJ11 In-Line Coupler: PC/ABS, UL 94V-0, Black colour
- RJ11 In-Line Coupler Contact: Phosphor Bronze, 3-50 micro inches gold plating over nickel plate
- PCB: FR4, UL 94V-0
- Frame: Diecast, Nickel or black plated
Variants
Consider RS PRO Cat3 Cables!
RS PRO offers a wide range of Cat3 cables, both terminated and unterminated. These cables are a version of ethernet cables, running from the internet source, like a router, to the intended target. The use of copper within the patch cord itself guarantees excellent network connection with reliable and smooth internet activity, suitable for both home and workplace environments. Browse our range for your ideal solution.
Applications
- Telecommunication
- Ethernet Network Interface
- Custom Sound boards
- Computers
Why would you choose RS PRO for RJ11 Connectors?
RS PRO offers a wide range of ethernet connector products to suit your applications. Our range of RJ11 connectors has been selected for their high quality and great value. We understand quality is of great importance to any business and have ensured that all RS PRO products are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when were confident of their exceptional quality.
屬性 | 值 |
---|---|
Ethernet Connector Type | RJ11 Connector |
Gender | Socket |
LAN Category | Cat3 |
Number of Ports | 1 |
Mounting Type | Panel Mount |
Number of Ways | 6P4C |
Connector Type | RJ11 |
Series | FT |
