XP Power JCD DC-DC Converter, ±9V dc/ ±278mA Output, 9 → 18 V dc Input, 5W, Through Hole, +100°C Max Temp -40°C

RS庫存編號:: 167-2920
製造零件編號:: JCD0512D09
製造商:: XP Power

XP Power JCD DC-DC Converter, ±9V dc/ ±278mA Output, 9 → 18 V dc Input, 5W, Through Hole, +100°C Max Temp -40°C

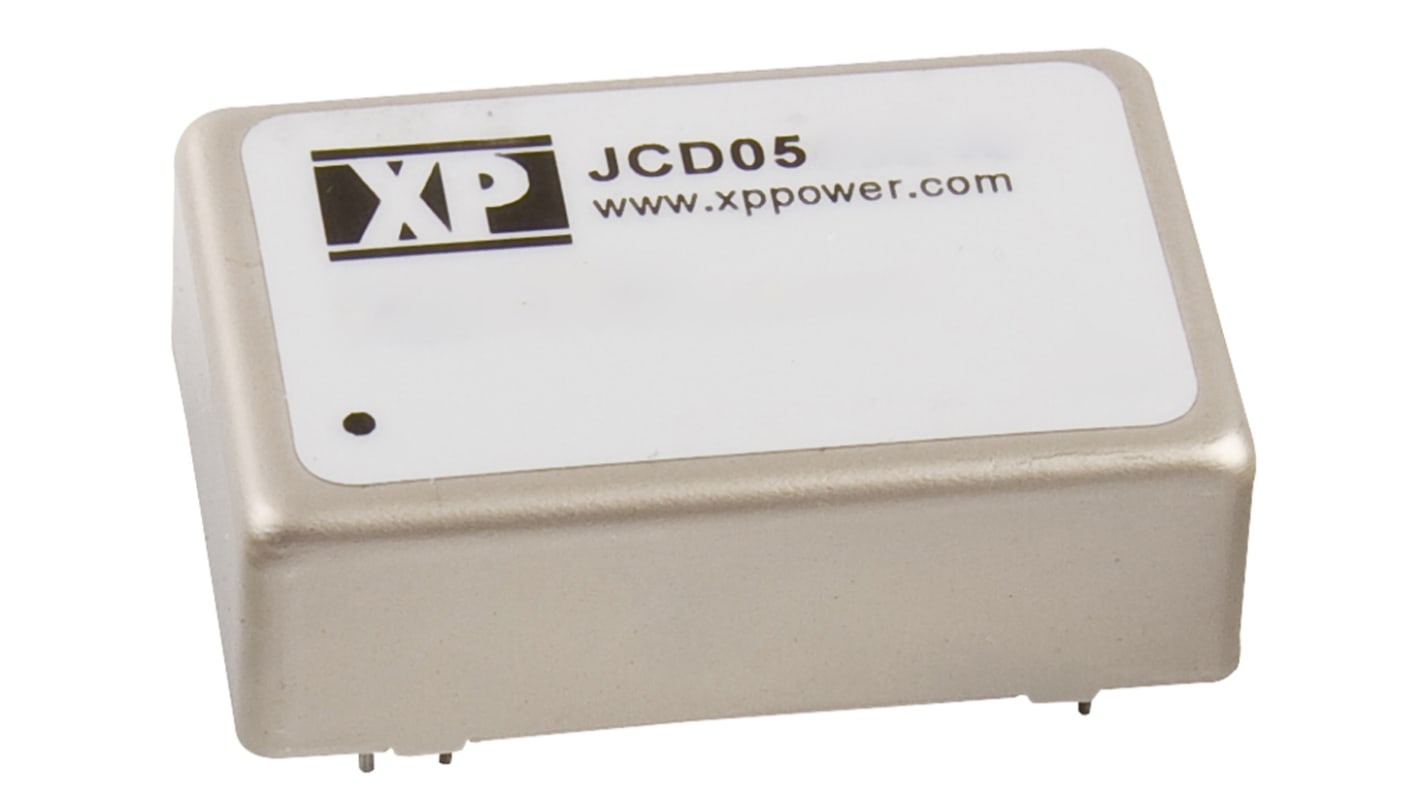

此圖片僅供參考，請參閲產品詳細資訊及規格

1 現貨庫存，可於6工作日發貨。

單價（不含稅）每個 (每對 10 個)

TWD6,964.00

(不含稅)

TWD7,312.20

Tube(s)	Per Tube	Per unit*
1 - 1	TWD6,964.00	TWD696.40
2 - 3	TWD6,811.00	TWD681.10
4 +	TWD6,665.00	TWD666.50
* 參考價格

RS庫存編號:: 167-2920
製造零件編號:: JCD0512D09
製造商:: XP Power

產品概覽和技術數據資料表

Datasheet

法例與合規

COO (Country of Origin):: TW

產品詳細資訊

XP Power - JCD Series of 4 W to 6 W Isolated DC-DC Converters

The JCD series from XP Power offers a highly reliable range of single and dual output, 4 W to 6 W, isolated DC-DC converters. The range attributes 1600 VDC in isolation, continuous short circuit protection and a high efficiency of up to 85%. The series also has a 2:1 input range and is available in a compact, industry standard package.

4 W to 6 W, isolated DC-DC converters
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 85%
Continuous short circuit protection
Board mount
-40 °C to +100 °C Operating temperature

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

XP Power - Isolated DC-DC Converters

規格

屬性	值
Output Voltage	±9V dc
Input Voltage Range	9 → 18 V dc
Power Rating	5W
Input Voltage Nominal	12 V dc
Output Current	±278mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±8.91 V dc, ±9.09V dc
Package	DIP 24
Isolation Voltage	1.6kV dc
Width	20.32mm
Depth	10.4mm
Length	31.75mm
Series	JCD
Load Regulation	±0.5%
Maximum Temperature	+100°C
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-STD-217F
