TE Connectivity Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Socket, 2.74mm Pitch, with 4-40 UNC

RS庫存編號:: 454-3523P
製造零件編號:: 8-1393480-1
製造商:: TE Connectivity

TE Connectivity Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Socket, 2.74mm Pitch, with 4-40 UNC

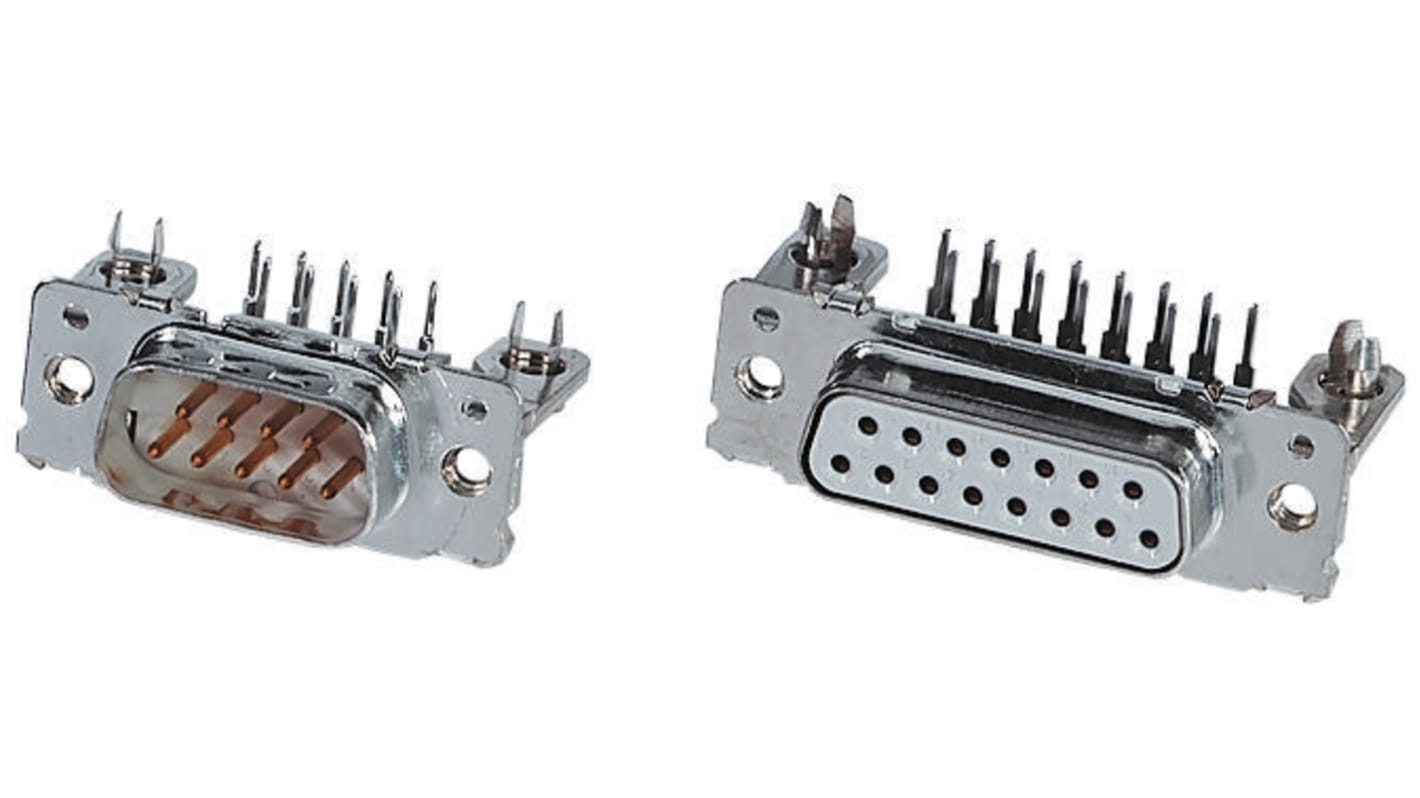

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

單價個 (以每袋裝提供)**

TWD143.00

(不含稅)

TWD150.15

24 現貨庫存，可於6工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 TWD1,300.00 (未稅) 即可享受免費送貨服務

即時庫存查詢

單位	每單位
50 - 99	TWD140.00
100 - 249	TWD139.00
250 - 399	TWD136.00
400 +	TWD133.00

** 參考價格

RS庫存編號:: 454-3523P
製造零件編號:: 8-1393480-1
製造商:: TE Connectivity

Dimensional Drawings
Datasheet

登入下載 CAD 模型

屬性	值
Number of Contacts	9
Gender	Female
Body Orientation	Right Angle
Mounting Type	Through Hole
Pitch	2.74mm
Termination Method	Solder
Mounting Hardware	4-40 UNC Threaded Inserts, Boardlocks
Current Rating	2.2A
Housing Material	Glass Fibre Reinforced PBT
Voltage Rating	1 kV ac
Length	31.19mm
Width	6.3mm
Depth	12.93mm
Dimensions	31.19 x 6.3 x 12.93mm
Contact Plating	Gold over Nickel
Series	Amplimite HD-20
Contact Material	Copper Alloy
Series Number	1393480
Minimum Operating Temperature	-55.0°C
Maximum Operating Temperature	+125°C

TE Connectivity Amplimite HD-20 9 Way Right Angle Through Hole D-sub Connector Socket, 2.74mm Pitch, with 4-40 UNC

訂單金額滿 TWD1,300.00 (未稅) 即可享受免費送貨服務

D-SUB Eurostyle Footprint HD-20 90° internal thread

Standards

Approvals
