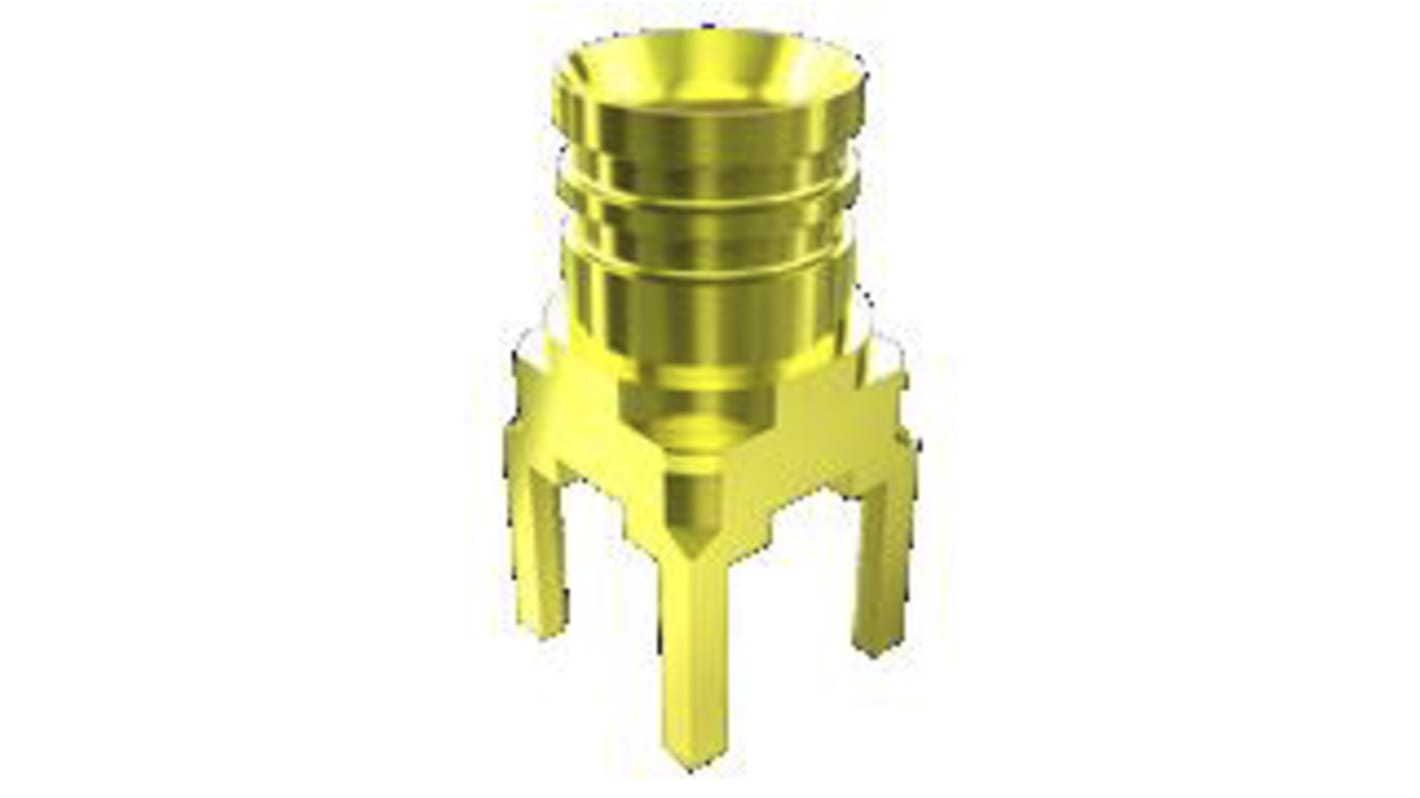

Samtec MMCX7 Series, jack Through Hole MCX Connector, 75Ω, Solder Termination, Straight Body
- RS庫存編號:
- 180-2420
- 製造零件編號:
- MMCX7-J-P-GF-ST-TH1
- 製造商:
- Samtec
當前暫無庫存，可於04/06/2024發貨，6 工作日送達。
已增加
單價（不含稅） 個
TWD175.00
(不含稅)
TWD183.75
(含稅)
| 單位 | Per unit | Per Tray* |
| 200 - 800 | TWD175.00 | TWD35,000.00 |
| 1000 + | TWD157.50 | TWD31,500.00 |
| * 參考價格 | ||
- RS庫存編號:
- 180-2420
- 製造零件編號:
- MMCX7-J-P-GF-ST-TH1
- 製造商:
- Samtec
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Performance up to 6 GHz
75 ohm impedance
Vertical orientation
75 ohm impedance
Vertical orientation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
屬性 | 值 |
|---|---|
| Gender | Female |
| Coaxial Connector Type | MCX Connector |
| Mounting Type | Through Hole |
| Impedance | 75Ω |
| Termination Method | Solder |
| Body Orientation | Straight |
| Cable Type | Coaxial |
| Size | Micro Miniature |
| Operating Frequency | 6GHz |
| Minimum Operating Temperature | -65°C |
| Body Plating | Gold |
| Maximum Operating Temperature | +125°C |
| Series | MMCX7 |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
