    Sanyo Denki San Ace 9GA Series Axial Fan, 12 V dc, DC Operation, 14m³/h, 360mW

    RS庫存編號:
    885-5085
    製造零件編號:
    9GA0612L9001
    製造商:
    Sanyo Denki
    Sanyo Denki
    查看所有Axial Fans
    53 現貨庫存,可於6工作日發貨。
    Add to Basket
    單位

    已增加

    單價(不含稅) 個

    TWD705.00

    (不含稅)

    TWD740.25

    (含稅)

    單位Per unit
    1 - 4TWD705.00
    5 - 11TWD687.00
    12 - 24TWD664.00
    25 - 49TWD649.00
    50 +TWD635.00
    RS庫存編號:
    885-5085
    製造零件編號:
    9GA0612L9001
    製造商:
    Sanyo Denki
    COO (Country of Origin):
    CH

    法例與合規

    COO (Country of Origin):
    CH

    產品詳細資訊

    San Ace Low Power DC Fans - GA Series


    San Ace GA series low power DC fans are a highly power efficient solution to a range of fan requirements. Featuring high air flow, high static pressure and low noise.


    Low power high performance fans offering 15% to 38% energy saving over conventional fans
    Improved impeller, guided vanes, reduced mass, reduced noise by between 2dB and 6dB
    PWM control to further optimise power consumption and noise level (except 60 x 60 x10 mm frame size which have tachometer output only)
    High static pressure and high airflow
    Static pressure optimised at inflection point where fan operated for high impedance applications
    30,000 to 60,000 hour life fans @ 60 Degree C
    Permanently lubricated dual ball bearing system

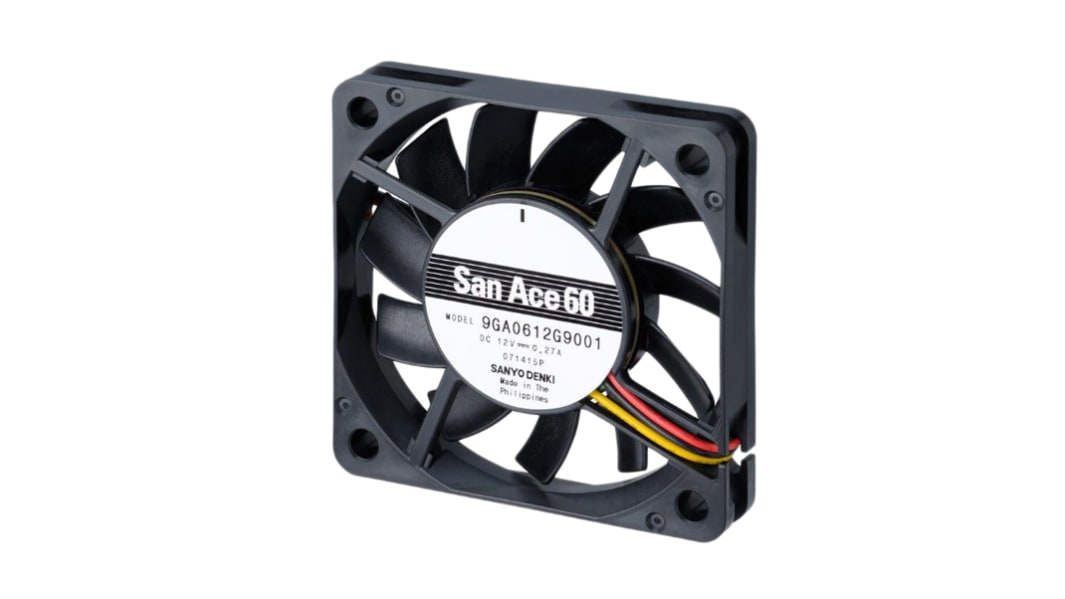

    Sanyo Denki Axial Fan, 12V DC, 13.8m³/h Air Flow - San Ace 9GA Series - 9GA0612L9001


    Use this axial fan from Sanyo Denki to keep your industrial system cool and prevent your equipment from overheating. An integrated tachometer sensor monitors the fan speed to optimise its power consumption and noise generation. Thanks to its current rating of 0.03A, it's suitable for use in low-power applications. The unit's internal ball bearing system is permanently lubricated to protect the fan from mechanical wear. This fan has a long mechanical service life of 40,000 hours at +60°C and 70,000 hours at +40°C for long-lasting operation.


    Features & Benefits


    • Low noise level of 17dB for quiet rotation
    • Compact dimensions of 60 (height) x 60 (width) x 10mm (depth) to fit in small spaces
    • Current blocking function and reverse polarity protection to prevent electrical malfunction
    • Broad operating temperature range between -10°C and +70°C for use in harsh environments


    Applications


    • Automotive industry
    • Electrical cabinets
    • Data centres
    • HVAC equipment


    How fast does this axial fan rotate?


    This fan has a high rotation speed of 2300rpm, which means it can move air rapidly to keep your equipment cool.



    規格

    屬性
    Supply Voltage12 V dc
    Dimensions60 x 60 x 10mm
    Height60mm
    AC or DC OperationDC
    Power Consumption360mW
    Width60mm
    Maximum Current30mA
    Depth10mm
    Termination TypeLead Wire
    Air Flow14m³/h
    Noise Level17dB
    Fan Speed2300rpm
    Sensor TypeTachometer
    Bearing TypeBall
