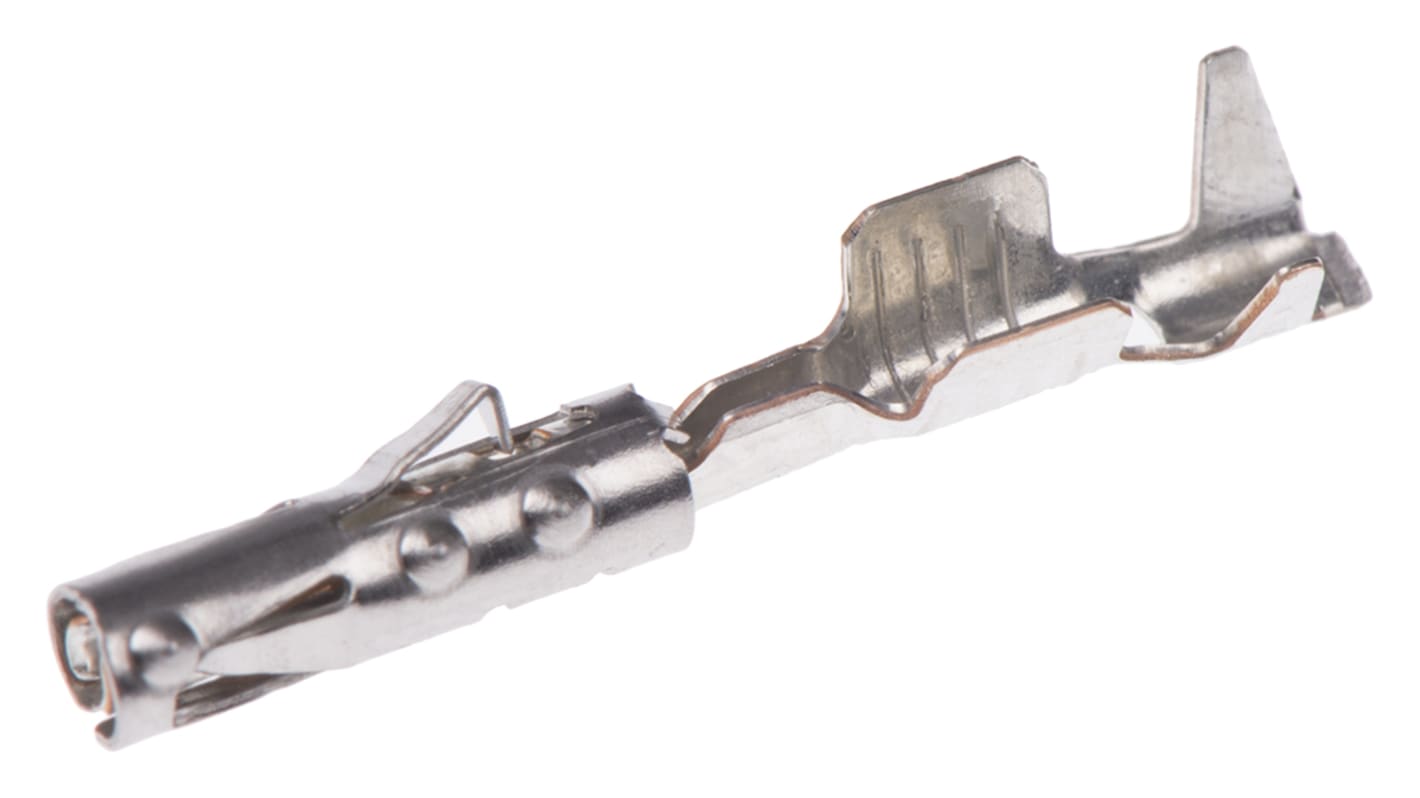

    Molex, CP, 64322 Female Crimp Terminal

    RS庫存編號:
    723-9362
    製造零件編號:
    64322-1039
    製造商:
    Molex
    Molex
    查看所有Automotive Connector Terminals
    當前暫無庫存,可於12/10/2022發貨,6 工作日送達。
    Add to Basket
    單位

    已增加

    單價(不含稅) /個 (每包:100個)

    TWD7.00

    (不含稅)

    TWD7.35

    (含稅)

    單位Per unitPer Pack*
    100 - 2900TWD7.00TWD700.00
    3000 - 5900TWD6.90TWD690.00
    6000 +TWD6.80TWD680.00
    * 參考價格
    包裝方式:
    RS庫存編號:
    723-9362
    製造零件編號:
    64322-1039
    製造商:
    Molex

    法例與合規


    產品詳細資訊

    CMC Hybrid Connector, CP0.635 mm Terminals - 64322 Series


    CP terminals for use in the CMC hyrbid connector system. These terminals are available in 1.50 mm and 0.635 mm widths and are designed to support low, medium and high current data requirements. The terminals have a 2 part design with a high conductivity copper alloy body and a stainless steel terminal box. This robust design enables the terminals to perform in high conductivity applications in harsh environments. These CP terminals are available with different platings and to suit a range of wire sizes


    Molex Female Hybrid Connector, 0.5mm² Wire Size, For Square 0.6 x 0.6mm Pins - 64332 Series - 64322-1039


    This high-quality modular connector from Molex serves as a connection socket for heavy-duty applications with high-current data requirements. The terminals are made of phosphor bronze with tin plating to ensure reliable conductivity and resistance to corrosion. That means it delivers reliable signal transfer even in harsh environments. The unit allows for a crimp termination style and a secure connection that's simple to achieve. You'll commonly find this type of connector used in the automotive industry.


    • Compatible with wire sizes of 24 to 22AWG (American Wire Gauge) for use in a range of applications
    • Light weight of 0.15g to minimise bulk and strain on equipment
    • Contains low levels of halogen to reduce the risk of toxic fumes in the event of a fire


    Applications


    • Power train control units
    • Gearboxes
    • Suspension controllers


    What safety precautions should I take when using this connector?


    To ensure safety, you should never use this connector to terminate a wire that's already connected to a power source as this can cause electric shock. You should also ensure that any wires attached to this connector have no indentations, as this could cause wire leaks and decrease overall performance.



    Molex CMC Hybrid Connectors


    規格

    屬性
    TypeCrimp Terminal
    SeriesCP
    GenderFemale
    Contact PlatingTin
    Contact MaterialTin
    Depth15.6mm
    Diameter0.635mm
    Current Rating6A
    Termination MethodCrimp
    Series Number64322
