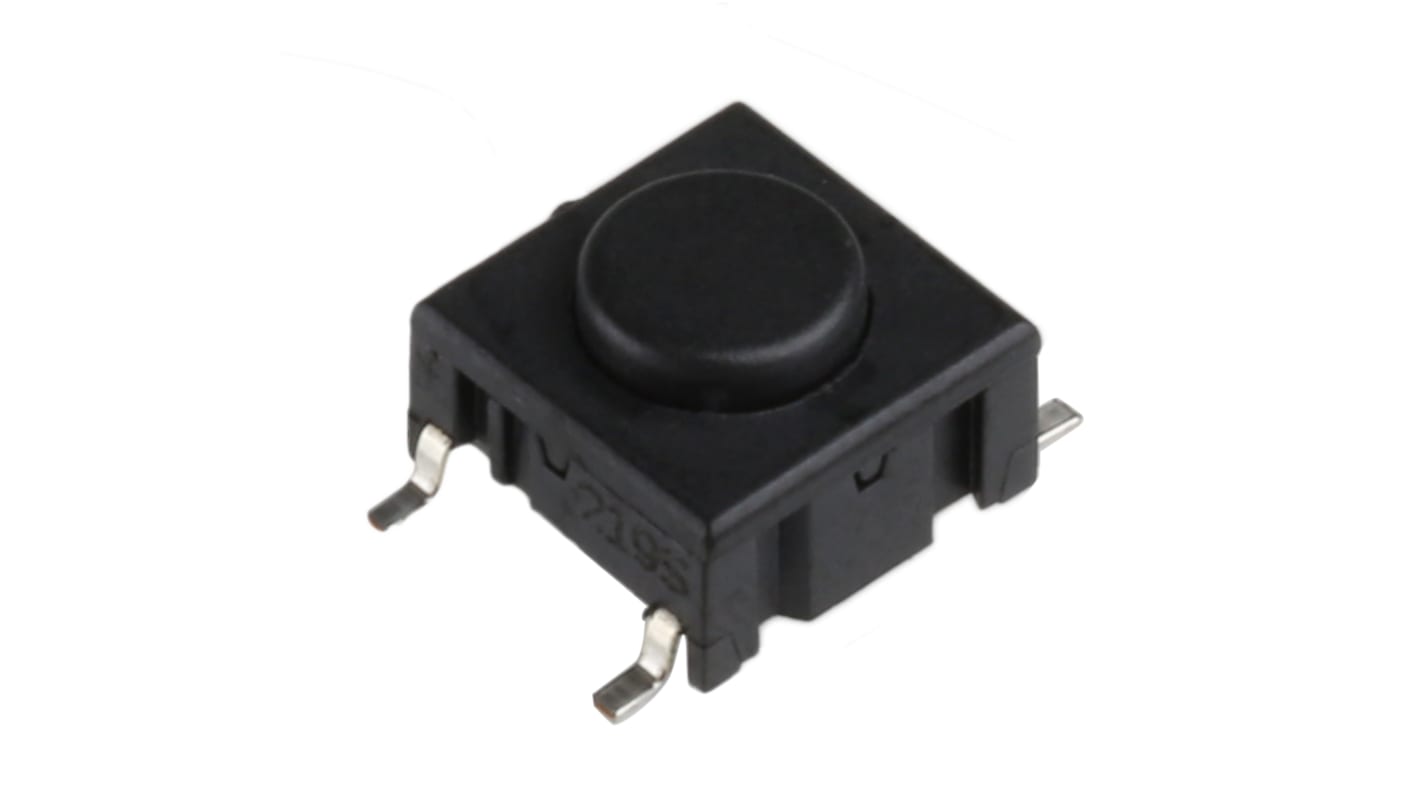

IP67 Button Tactile Switch, SPST 50 mA @ 24 V dc 1.3mm
- RS庫存編號:
- 495-4608
- 製造零件編號:
- 3CSH9
- 製造商:
- MEC
- RS庫存編號:
- 495-4608
- 製造零件編號:
- 3CSH9
- 製造商:
- MEC
法例與合規
- COO (Country of Origin):
- DK
產品詳細資訊
Multimec® 3C/3E Switches
SPNO momentary action
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
Sealed to IP67
Base 10.1x10.1mm with 6.5mm Ø black actuator, available in various heights
規格
屬性 | 值 |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Length | 1.3mm |
| Actuator Type | Button |
| Length | 10.1mm |
| Width | 10.1mm |
| Dimensions | 10.1 x 10.1mm |
| Illuminated | No |
| Contact Current Rating | 50 mA @ 24 V dc |
| IP Rating | IP67 |
| Voltage Rating | 24V dc |
| Height | 6.4mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +160°C |
| Operating Temperature Range | -40 → +160°C |
| Mechanical Life | 10000000Operations |
