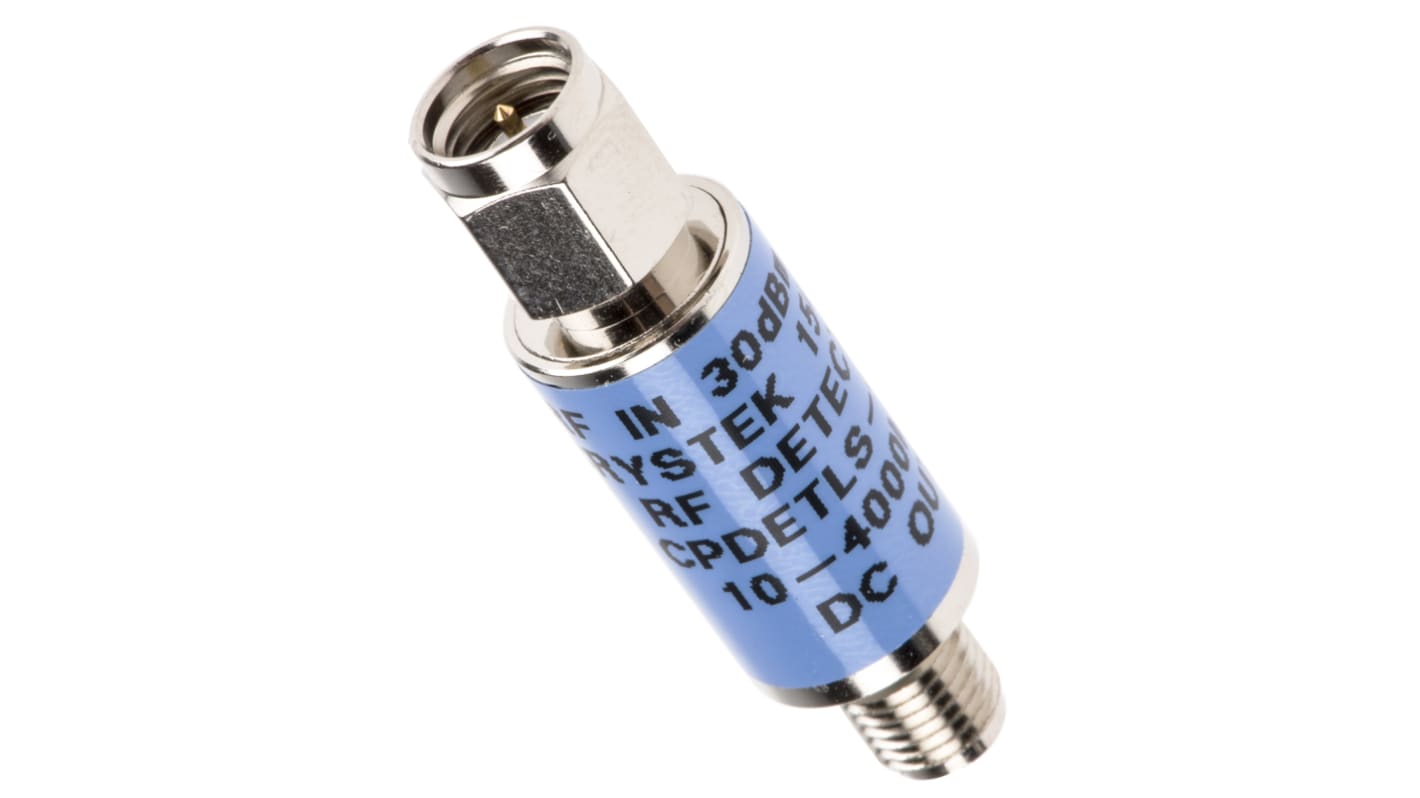

Crystek CPDETLS-4000 RF Power Meter 4GHz DC Voltage
- RS庫存編號:
- 792-4158
- 製造零件編號:
- CPDETLS-4000
- 製造商:
- Crystek
1 現貨庫存，可於3工作日發貨。
已增加
單價（不含稅） 個
TWD1,346.00
(不含稅)
TWD1,413.30
(含稅)
| 單位 | Per unit |
| 1 - 4 | TWD1,346.00 |
| 5 + | TWD1,319.00 |
- RS庫存編號:
- 792-4158
- 製造零件編號:
- CPDETLS-4000
- 製造商:
- Crystek
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊
SMA connector Pocket RF power detector
The CPDETLS-4000 RF power detector has a 10 MHz to 4 GHz frequency range and features a large signal power detector, greater than -10 dBm. With +30 dBm max input signal, these RF power detectors also feature 100 pF video capacitance.
Features & Benefits
10 MHz to 4 GHz Frequency Range
Zero Bias Schottky
Large Signal Power Detector, greater than -10 dBm
+30 dBm Max Input Signal
100 pF Video Capacitance
Operating Temperature: -20°C to 70°C
Zero Bias Schottky
Large Signal Power Detector, greater than -10 dBm
+30 dBm Max Input Signal
100 pF Video Capacitance
Operating Temperature: -20°C to 70°C
Large power signal detector
SMA housing
SMA housing
Product Application Information
Suitable applications for these RF power detectors include general laboratory use and low-cost RF power monitoring.
Handheld Crytal Oscillators
規格
屬性 | 值 |
|---|---|
| Maximum Power Measurement | 10dBm |
| Maximum Frequency | 4GHz |
| Minimum Frequency | 10 MHz |
| Connectivity | DC Voltage |
| Connector Type | SMA |
| Dimensions | 11.05 (Dia.) x 38.2mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Diameter | 11.05mm |
| Length | 38.2mm |
