ABB, OVR Surge Protection Device 275 V Maximum Voltage Rating 80kA Maximum Surge Current Surge Protection Device
- RS庫存編號:
- 175-2601
- 製造零件編號:
- 2CTB815708R2600
- 製造商:
- ABB
當前暫無庫存，可於31/05/2024發貨，6 工作日送達。
已增加
單價（不含稅） 個
TWD9,797.00
(不含稅)
TWD10,286.85
(含稅)
| 單位 | Per unit |
| 1 - 1 | TWD9,797.00 |
| 2 - 4 | TWD9,552.00 |
| 5 + | TWD9,313.00 |
- RS庫存編號:
- 175-2601
- 製造零件編號:
- 2CTB815708R2600
- 製造商:
- ABB
法例與合規
產品詳細資訊

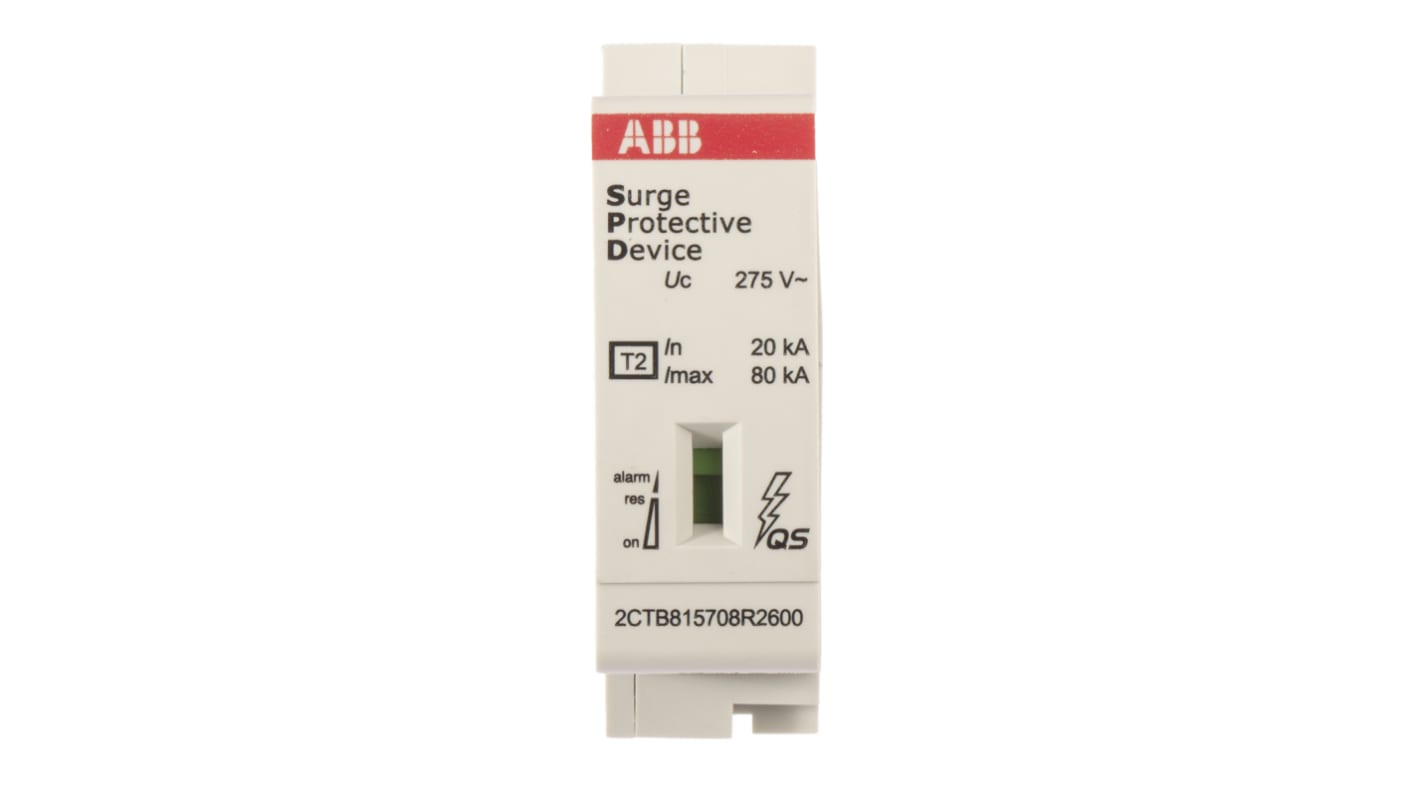

ABB Surge Suppressor Unit
The ABB OVR series surge suppressor unit is a protective device to ensure that electrical equipment is not damaged by a sudden voltage spike. It has an electrical rating of 275V and 80kA. Type 2 surge protective devices are designed to protect electric installations and sensitive equipment against indirect surges and ensure a low protection level (Up). They are characterized by their capacity to safely discharge current with 8/20μs waveform.
Features and Benefits
• Back up protection up to 160A fuse or 125A Mcb
• DIN rail mount
• Has 1 protected line
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode L-N/L-PE
• Safety reserve system
• Voltage protection level at L-Nis 1.4kV/ L-PE is 1.4kV
• DIN rail mount
• Has 1 protected line
• Improved safety
• Operating temperature ranges between -40°C and 80°C
• Patented QuickSafe technology
• Pluggable
• Protection mode L-N/L-PE
• Safety reserve system
• Voltage protection level at L-Nis 1.4kV/ L-PE is 1.4kV
Applications
• To protect the systems against transient overvoltage (lightning)
Certifications
• IEC 61643-11/EN 61643-11
規格
屬性 | 值 |
|---|---|
| Suppressor Type | Surge Protection Device |
| Maximum Voltage Rating | 275 V |
| Mounting Type | DIN Rail |
| Maximum Surge Current | 80kA |
| Series | OVR |
| Length | 17.6mm |
| Depth | 67mm |
| Height | 57mm |
| Dimensions | 17.6 x 67 x 57mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
