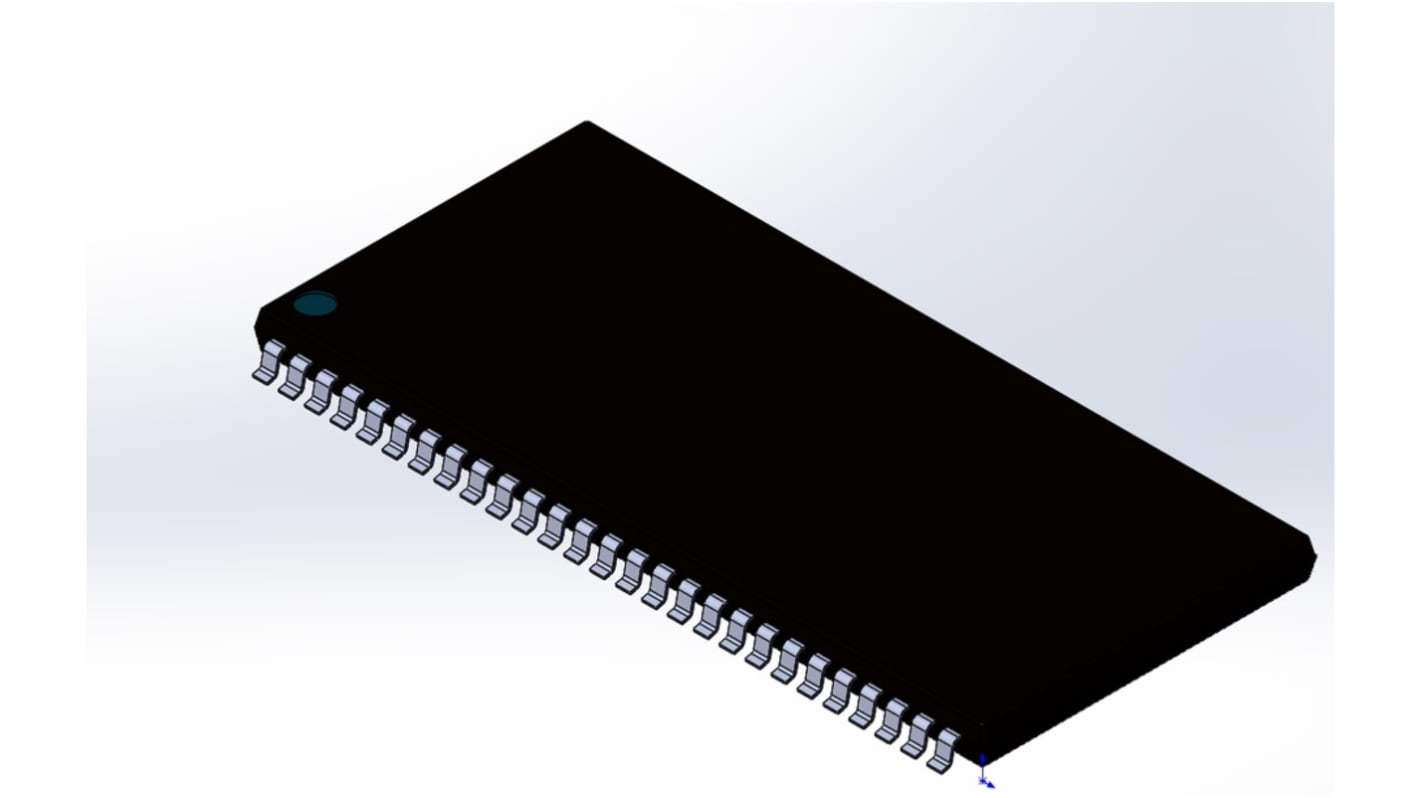

Alliance Memory AS4C4M16SA-6TIN, SDRAM 64Mbit Surface Mount, 200MHz, 3 V to 3.6 V, 54-Pin TSOP

RS庫存編號:: 230-8429
製造零件編號:: AS4C4M16SA-6TIN
製造商:: Alliance Memory

Alliance Memory AS4C4M16SA-6TIN, SDRAM 64Mbit Surface Mount, 200MHz, 3 V to 3.6 V, 54-Pin TSOP

當前暫無庫存，可於19/06/2024發貨，6 工作日送達。

單價（不含稅）個

TWD76.30

(不含稅)

TWD80.12

單位	Per unit	Per Tray*
108 - 216	TWD76.30	TWD8,240.40
324 - 432	TWD74.40	TWD8,035.20
540 - 972	TWD72.50	TWD7,830.00
1080 +	TWD70.70	TWD7,635.60
* 參考價格

RS庫存編號:: 230-8429
製造零件編號:: AS4C4M16SA-6TIN
製造商:: Alliance Memory

產品概覽和技術數據資料表

Datasheet - AS4C4M16SA-6TIN

法例與合規

產品詳細資訊

The Alliance Memory 64Mb SDRAM is a high-speed CMOS synchronous DRAM containing 64 Mbits. It is internally configured as 4 Banks of 1M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Read and write accesses to the SDRAM are burst oriented

accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a Bank Activate command which is then followed by a Read or Write command.

Fast access time from clock: 4.5/5.4/5.4 ns
Fast clock rate: 200/166/143 MHz
Fully synchronous operation
Internal pipelined architecture
1M word x 16-bit x 4-bank

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

規格

屬性	值
Memory Size	64Mbit
Organisation	4M x 16
SDRAM Class	DDR
Data Rate	200MHz
Data Bus Width	16bit
Address Bus Width	13bit
Number of Bits per Word	16bit
Maximum Random Access Time	5.4ns
Number of Words	4M
Mounting Type	Surface Mount
Package Type	TSOP
Pin Count	54
Dimensions	22.35 x 10.29 x 1.2mm
Height	1.2mm
Length	22.35mm
Maximum Operating Temperature	+85 °C
Maximum Operating Supply Voltage	3.6 V
Minimum Operating Temperature	-40 °C
Minimum Operating Supply Voltage	3 V
Width	10.29mm
