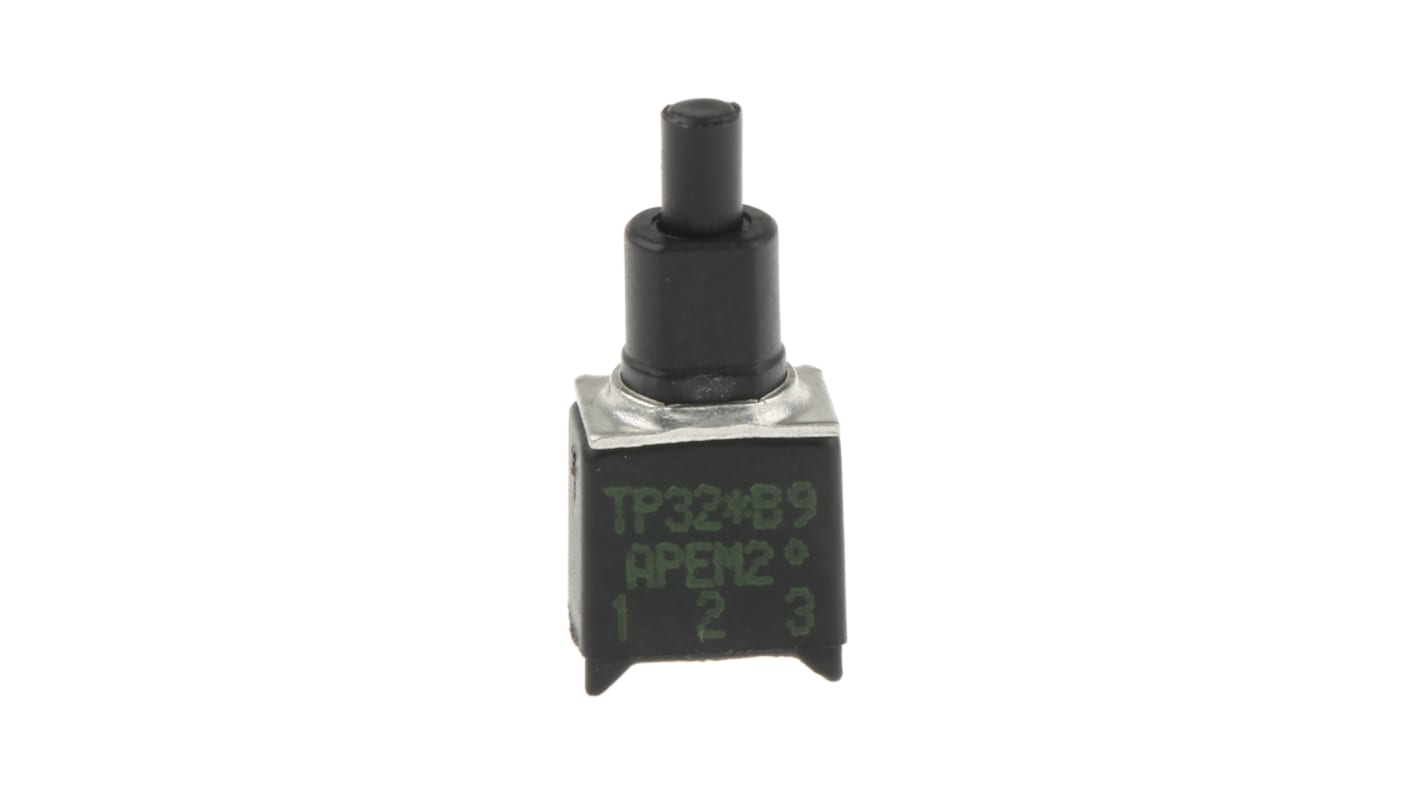

APEM TP Series Push Button Switch, Momentary, PCB, SPST, 20V
- RS庫存編號:
- 664-367
- 製造零件編號:
- TP32W0080
- 製造商:
- APEM
當前暫無庫存，可於07/05/2024發貨，6 工作日送達。
已增加
單價（不含稅） 個
TWD206.00
(不含稅)
TWD216.30
(含稅)
| 單位 | Per unit |
| 1 - 24 | TWD206.00 |
| 25 - 99 | TWD198.00 |
| 100 - 249 | TWD197.00 |
| 250 - 499 | TWD195.00 |
| 500 + | TWD188.00 |
- RS庫存編號:
- 664-367
- 製造零件編號:
- TP32W0080
- 製造商:
- APEM
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
Momentary Action
Gold-plated contacts
Three types of terminals are available; vertical, horizontal right angled, and vertical right angled, enabling the user to select space saving configurations
Push-on coloured button caps are available separately
Electrical and mounting specifications are as the washable ultra-miniature toggle switches, see this section
Totally sealed, suitable for immersion cleaning
Suitable for wave soldering, will withstand 260°C for 5 seconds
Ideal for low level switching
Three types of terminals are available; vertical, horizontal right angled, and vertical right angled, enabling the user to select space saving configurations
Push-on coloured button caps are available separately
Electrical and mounting specifications are as the washable ultra-miniature toggle switches, see this section
Totally sealed, suitable for immersion cleaning
Suitable for wave soldering, will withstand 260°C for 5 seconds
Ideal for low level switching
規格
屬性 | 值 |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Mounting Type | PCB |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Voltage Rating | 20V |
| Series | TP |
| Contact Current Rating | 400 mA @ 20 V |
| Contact Material | Gold Plated Brass |
| Manufacturer Part No. | TP32W0080 |
| Terminal Type | Through Hole |
