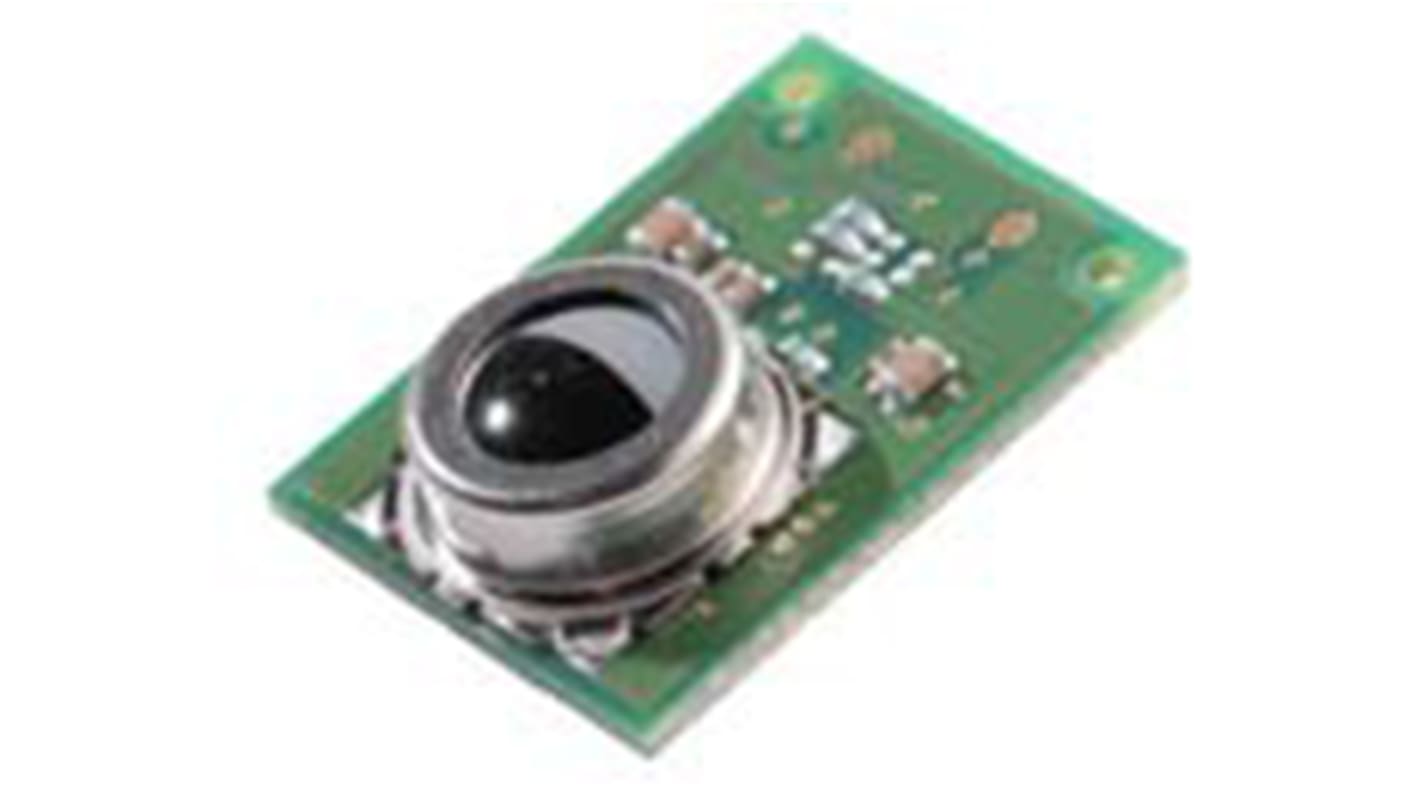

D6T-1A-02 Omron, D6T Thermal Sensor 4.5 V to 5.5 V 4-Pin
- RS庫存編號:
- 176-0825
- 製造零件編號:
- D6T-1A-02
- 製造商:
- Omron
1 現貨庫存，可於6工作日發貨。
已增加
單價（不含稅） 個
TWD516.00
(不含稅)
TWD541.80
(含稅)
| 單位 | Per unit |
| 1 - 19 | TWD516.00 |
| 20 - 39 | TWD503.00 |
| 40 + | TWD496.00 |
- RS庫存編號:
- 176-0825
- 製造零件編號:
- D6T-1A-02
- 製造商:
- Omron
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TH
產品詳細資訊
High Sensitivity Enables Detection of Stationary Human Presence
OMRON's unique MEMS and ASIC technology achieve a high SNR.
Superior noise immunity with a digital output.
High-precision area temperature detection with low cross-talk field of view characteristics.
Superior noise immunity with a digital output.
High-precision area temperature detection with low cross-talk field of view characteristics.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
屬性 | 值 |
|---|---|
| Sensor Type | Thermal Sensor |
| Maximum Output Current | 3.5mA |
| Maximum Output Voltage | 5.5 V |
| Switching Mode | Digital |
| Output Type | Digital |
| Mounting Type | PCB Mount |
| Pin Count | 4 |
| Maximum Supply Current | 5 mA |
| Dimensions | 12 x 11.6 x 4.79mm |
| Height | 4.79mm |
| Length | 12mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Series | D6T |
| Width | 11.6mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +80 °C |
