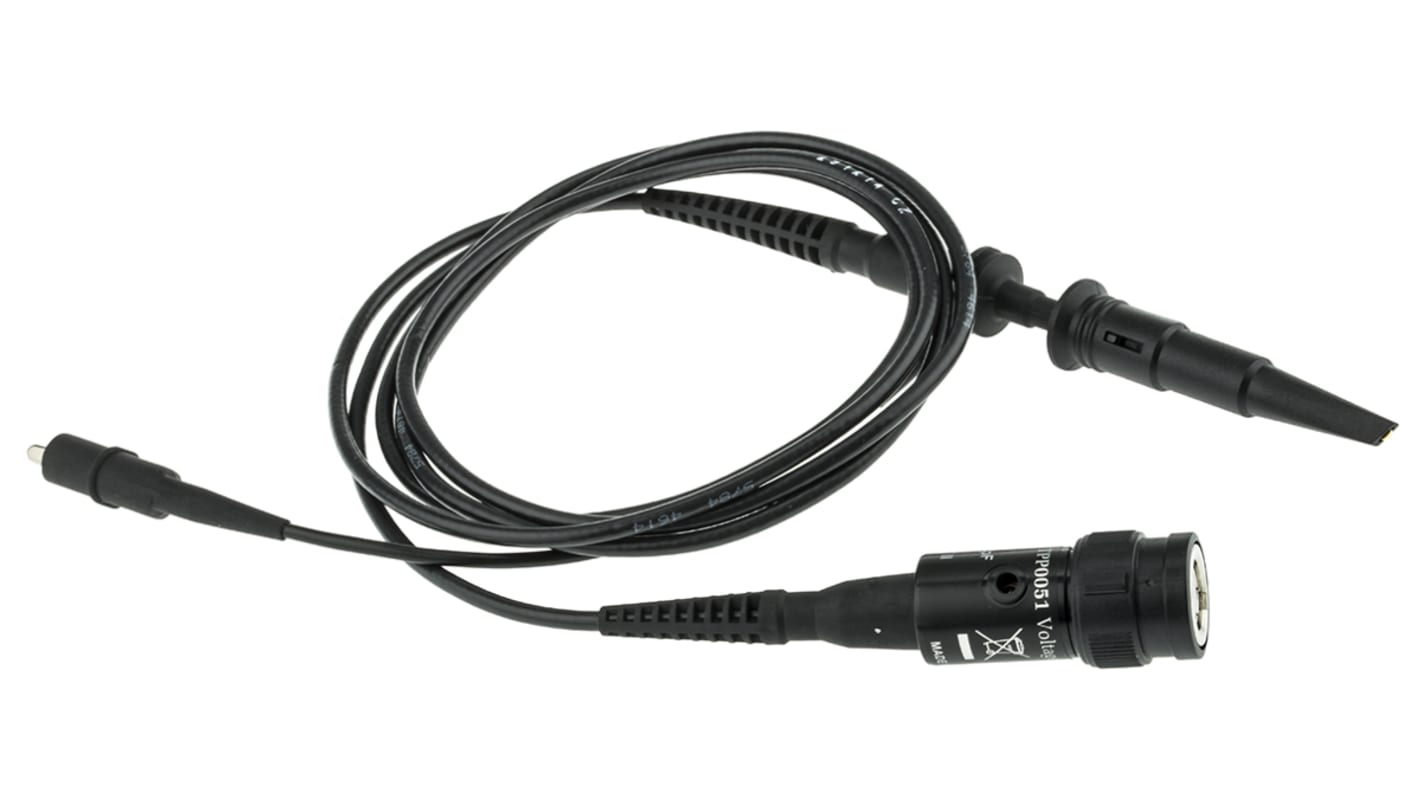

Tektronix TPP0 Series TPP0051 Oscilloscope Probe, Passive Type, 50MHz, 1:10, BNC Connector
- RS庫存編號:
- 800-3004
- 製造零件編號:
- TPP0051
- 製造商:
- Tektronix
88 在6 工作日內發貨 (海外庫存)
53 在6 工作日內發貨 (海外庫存)
已增加
單價（不含稅） 個
原價 TWD1,887.00
您付款
TWD1,720.00
(不含稅)
TWD1,806.00
(含稅)
| 單位 | Per unit |
| 1 + | TWD1,720.00 |
- RS庫存編號:
- 800-3004
- 製造零件編號:
- TPP0051
- 製造商:
- Tektronix
法例與合規
不適用
- COO (Country of Origin):
- CN
產品詳細資訊
Tektronix Oscilloscope Probes
The Tektronix passive voltage oscilloscope probe is for use on BNC oscilloscopes with 1Mohm/20pF input. It has an attenuation of 10X with 10Mohm input resistance.
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.
Features and Benefits
Bandwidth is DC to 50MHz
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Cable length is 1.3m
Maximum common-mode input voltage is 300KV
Maximum Input voltage is 300VRMS CAT II
Wide compensation ranges between 15pF and 25pF)
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Cable length is 1.3m
Maximum common-mode input voltage is 300KV
Maximum Input voltage is 300VRMS CAT II
Wide compensation ranges between 15pF and 25pF)
Applications
Relative low frequency measurements
Low frequency computer and telecom measurements
Power supplies
Low frequency amplifiers
Low frequency computer and telecom measurements
Power supplies
Low frequency amplifiers
Certifications
UL61010-031 approved
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT II 300V
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT II 300V
規格
屬性 | 值 |
|---|---|
| Probe Type | Passive |
| Attenuation | 1:10 |
| Bandwidth | 50MHz |
| Connector Type | BNC |
| Model Number p | TPP0051 |
| Number of Probes | 1 |
| Series | TPP0 |
| Safety Category | CAT II 300V |
| Rise Time | 7ns |
