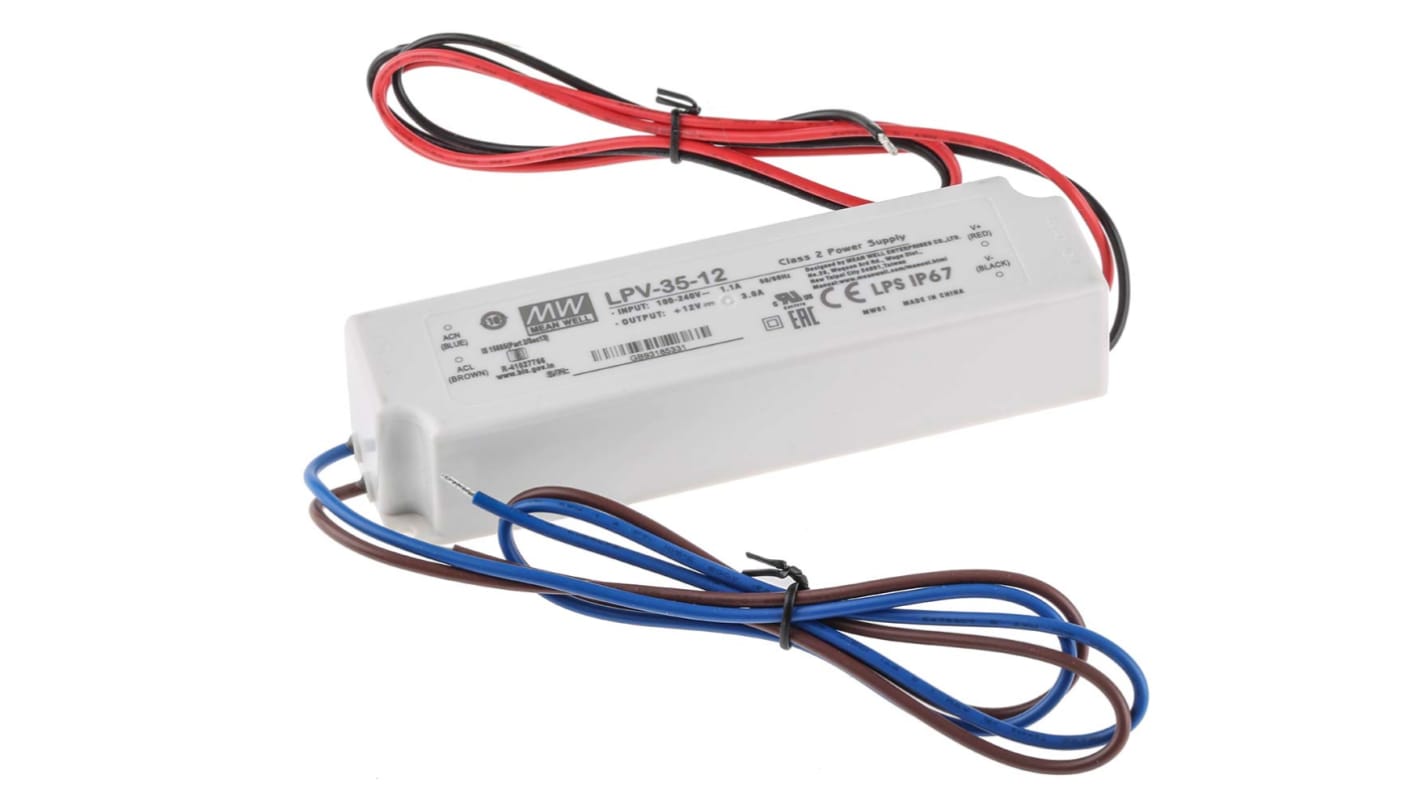

Mean Well LPV-35-12, Constant Voltage LED Driver 36W 12V 3A

  • RS庫存編號 660-0277
  • 製造零件編號 LPV-35-12
  • 製造商 Mean Well
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): CN
產品詳細資訊

RS - 35W Waterproof (IP67) SMPSU

External switch mode epoxy encapsulated IP67 rated power supplies
High efficiency, long life and high reliability
Designed for indoor or outdoor installations
Suitable for LED lighting and moving sign applications
Withstands 300Vac surge input for 5 seconds
100% full load burn-in test
Fully regulated output
Short circuit, over-current, over-voltage protection
600mm un-terminated, 2-core 18AWG input lead
600mm un-terminated, 2-core 16AWG output lead
UL1310 Class 2 power unit, pass LPS
EMC compliance to EN 55022 Class B
Harmonic current compliance to EN 61000-3-2,-3
Stk nos 660-0274, 660-0277, 660-0271, 660-0280, 660-0283 are constant voltage power supplies
Stk nos 660-0287, 660-0296 and 660-0299 are constant current power supplies

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Power derates above 65°C (5Vdc version derates above 55°C).
MTBF to MIL-HDBK-217F.

Standards

TUV EN 60950-1, EN 61347-2-13, UL 1310 Class 2, CAN/CSA C22.2 No. 223-M91

規格
屬性
Input Voltage 90 264 V ac
Output Voltage 12V
Operation Constant Voltage
Output Current 3A
Maximum Output Power 36W
AC or DC Input Voltage Ac
IP Rating IP67
Number of Outputs 1
Voltage Rating 90 264V ac
