SKF 5.8 (Insertion Tube)mm probe Endoscope, 1m Probe Length, 320 x 240 (Video) pixels, 640 x 480 (Image) pixels

  • RS庫存編號 124-8484
  • 製造零件編號 TKES10A
  • 製造商 SKF
COO (Country of Origin): TW

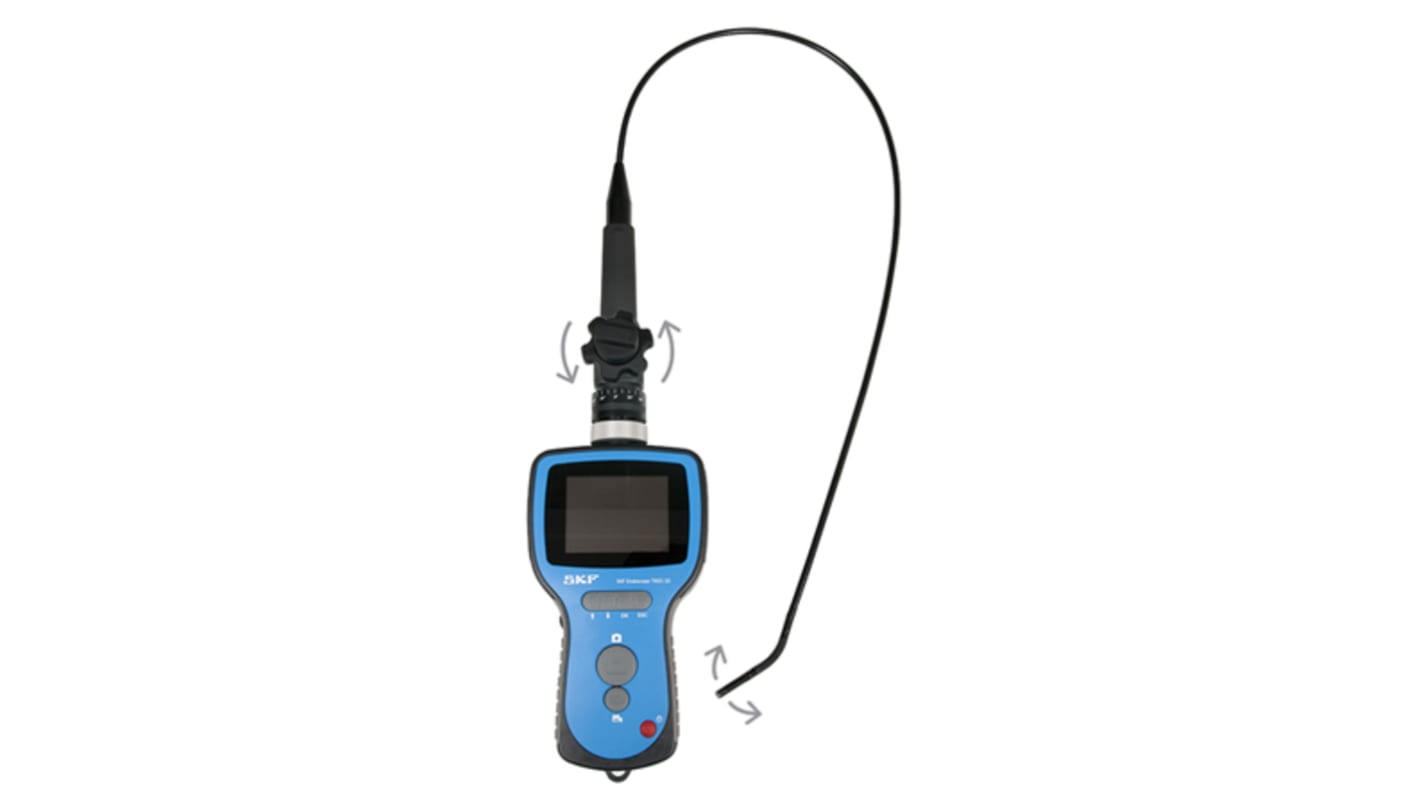

SKF Endoscopes TKES 10 Series

The TKES 10 series endoscopes from SKF are inspection tools that can be used for the internal inspection of machinery helping to save time and money. They minimise the need to disassemble machinery as their variable LED lighting allows for inspection in dark locations. The 3.5” display unit has a backlit screen, plus images and videos can be saved, recalled and downloaded for future use.

Features and Benefits

• High-resolution miniature camera
• Small tip diameter of 5.8 mm
• Side view adapter
• Hands-free capability due to powerful magnets and a tripod mount
• Up to 50000 photos or 120 min of video can be stored on SD memory card
• Supplied in a sturdy carry case complete with cables, mains charger and cleaning kit

Available with a 1 m insertion tube in three different variants:

• TKES 10F – Flexible insertion tube
• TKES 10S – Semi-rigid insertion tube
• TKES 10A – Insertion tube with an articulation tip

Bearing Mounting, Dismounting and Inspection Tools

Bearing tools help maintain maximum bearing service life and help to optimise machine performance. In addition, bearing tools contribute to the overall safety and performance of a system. A range of bearing tools are available from SKF that include bearing pullers, bearing mounting and dismounting tools, bearing heaters, manual and automatic bearing lubricators, inspection equipment including bearing electrical discharge detectors, stroboscopes, alignment tools, protection blankets, infrared thermometers, and shim kits. Certain bearing tools are available in kit form.

Probe Length 1m
Probe Diameter 5.8 (Insertion Tube)mm
Resolution 320 x 240 (Video) pixels, 640 x 480 (Image) pixels
Field of View 55°
Illumination Type LED
Minimum Focus Distance 20mm
Maximum Bending Radius Minimum of 50mm
Battery Type Rechargeable Li-Polymer
2 現貨庫存,可於6工作日發貨。
單價(不含稅) 個
TWD 51,910.00
TWD 54,506.00
Per unit
1 +
