- RS庫存編號:
- 197-4998
- 製造零件編號:
- NE8FDV-TOP
- 製造商:
- Neutrik
13 現貨庫存,可於6工作日發貨。
已增加
單價(不含稅) 個
TWD298.00
(不含稅)
TWD312.90
(含稅)
單位 | Per unit |
1 - 9 | TWD298.00 |
10 - 19 | TWD292.00 |
20 + | TWD285.00 |
- RS庫存編號:
- 197-4998
- 製造零件編號:
- NE8FDV-TOP
- 製造商:
- Neutrik
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

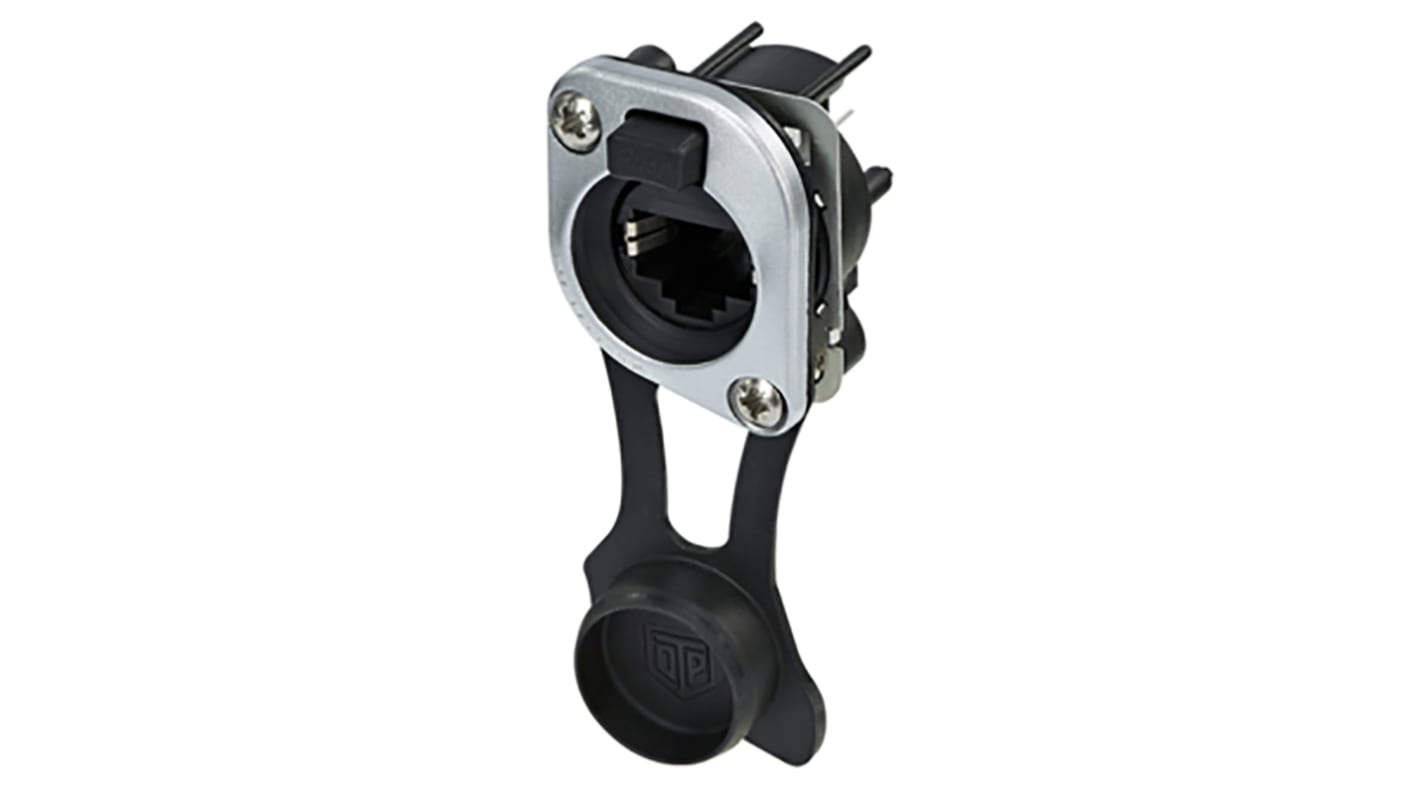

The Neutrik NE8FDV-TOP is a vertical PCB panel mount RJ45 receptacle. It is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
IP65 rating and certified outdoor protection to UL 50E enclosure type 4
Accommodates NE8MCX or any standard RJ45 plug
Class D or CAT5e according to ISO/IEC 11801 and
TIA/EIA
Uses high impact UV-resistant and gasket materials
Accommodates NE8MCX or any standard RJ45 plug
Class D or CAT5e according to ISO/IEC 11801 and
TIA/EIA
Uses high impact UV-resistant and gasket materials
規格
屬性 | 值 |
---|---|
Ethernet Connector Type | RJ45 Connector |
Gender | Female |
Mounting Type | PCB Mount |
Shield Type | Shielded |
Orientation | Straight |
IP Rating | IP65 |
Series | etherCON |
Contact Material | Bronze |
Contact Plating | Gold over Nickel |
