產品詳細資訊

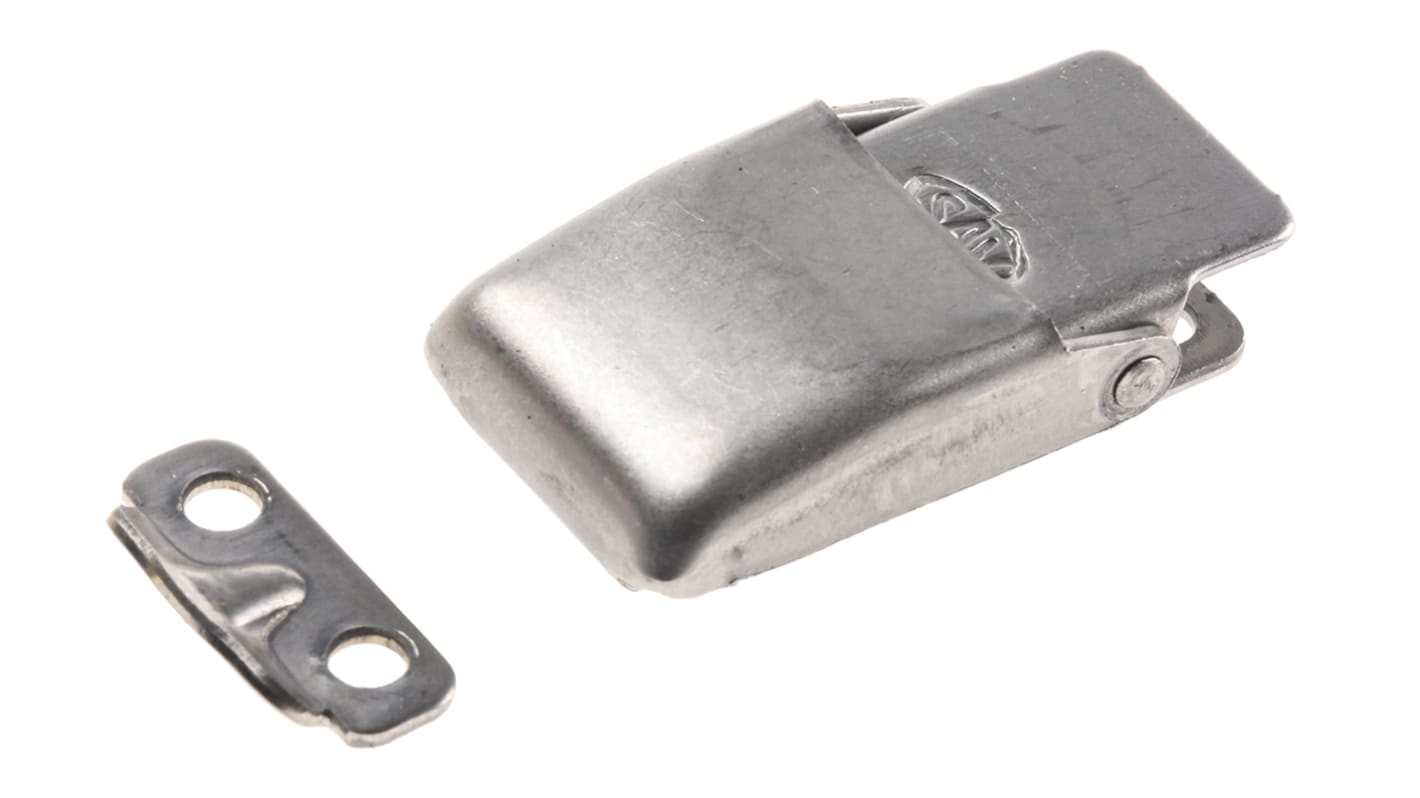

Spring Loaded Mini Toggle Latch
Miniature, fully enclosed latch with a spring mechanism which gives a wide positioning tolerance.
Concealed catch plate with assembly rivets
Compression springs made in stainless steel 18//8
Weld or M3 screw fixing
15kgf operating tension
Latch to catch distance 25.5mm
Compression springs made in stainless steel 18//8
Weld or M3 screw fixing
15kgf operating tension
Latch to catch distance 25.5mm
Supplied with
dimensions template for marking out.
規格
屬性 | 值 |
|---|---|
| Material | Stainless Steel |
| Spring Loaded | Yes |
| Latch Type | Toggle Latch |
| Operating Tension | 147N |
| Dimensions | 33.5 x 18 x 8mm |
| Depth | 8 mm |
| Length | 33.5mm |
| Width | 18mm |
