18012115411H Wurth Elektronik, 2-Channel Digital Isolator 150 Mbps, 3.75 kV, 2.375 to 5.5 V, 8-Pin SOIC-8 NB
- RS庫存編號:
- 288-0546P
- 製造零件編號:
- 18012115411H
- 製造商:
- Wurth Elektronik

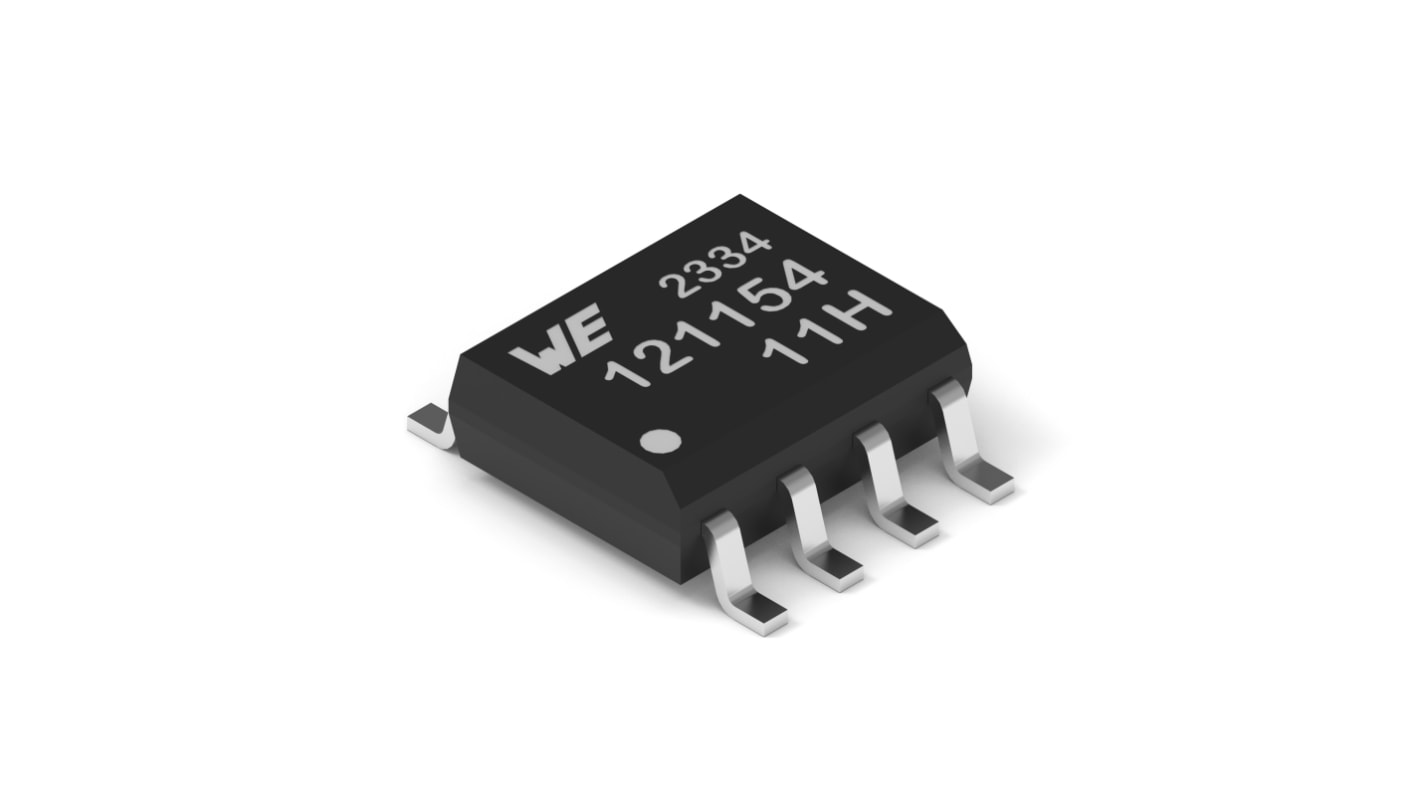

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計 50 件 (按連續帶提供)*
TWD2,640.00
(不含稅)
TWD2,772.00
(含稅)
訂單超過 $1,300.00 免費送貨
有庫存
- 加上 2,395 件從 2026年3月16日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 50 - 95 | TWD52.80 |
| 100 - 495 | TWD50.00 |
| 500 - 995 | TWD47.80 |
| 1000 + | TWD46.80 |
* 參考價格
- RS庫存編號:
- 288-0546P
- 製造零件編號:
- 18012115411H
- 製造商:
- Wurth Elektronik
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wurth Elektronik | |
| Number of Channels | 2 | |
| Product Type | Digital Isolator | |
| Maximum Data Rate | 150Mbps | |
| Package Type | SOIC-8 NB | |
| Maximum Forward Voltage | 5.5V | |
| Data Rate | 150Mbps | |
| Maximum Input Current | 20μA | |
| Propagation Delay Time | 15ns | |
| Isolation Voltage | 3.75kV | |
| Rise Time | 4ns | |
| Number of Pins | 8 | |
| Mount Type | Surface | |
| Supply Voltage | 2.375 to 5.5 V | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Depth | 1.5mm | |
| Width | 3.9 mm | |
| Length | 4.9mm | |
| Standards/Approvals | UL1577, RoHS, REACH, IEC 60747-17 pending | |
| Series | WPME-CDIS | |
| Package Style | SOIC | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Wurth Elektronik | ||
Number of Channels 2 | ||
Product Type Digital Isolator | ||
Maximum Data Rate 150Mbps | ||
Package Type SOIC-8 NB | ||
Maximum Forward Voltage 5.5V | ||
Data Rate 150Mbps | ||
Maximum Input Current 20μA | ||
Propagation Delay Time 15ns | ||
Isolation Voltage 3.75kV | ||
Rise Time 4ns | ||
Number of Pins 8 | ||
Mount Type Surface | ||
Supply Voltage 2.375 to 5.5 V | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Depth 1.5mm | ||
Width 3.9 mm | ||
Length 4.9mm | ||
Standards/Approvals UL1577, RoHS, REACH, IEC 60747-17 pending | ||
Series WPME-CDIS | ||
Package Style SOIC | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik 2 Channel Capacitive Digital Isolator provides capacitive isolation between the primary and secondary sides of the device. The digital isolator requires two supplies, one for the primary side and one for the secondary side. This digital isolator ensures fast time to market and low development costs.
UL1577 certified
RoHS and REACH compliant
Data rate up to 150 Mbps
Low propagation delay 12 ns typical
High default channel output status
