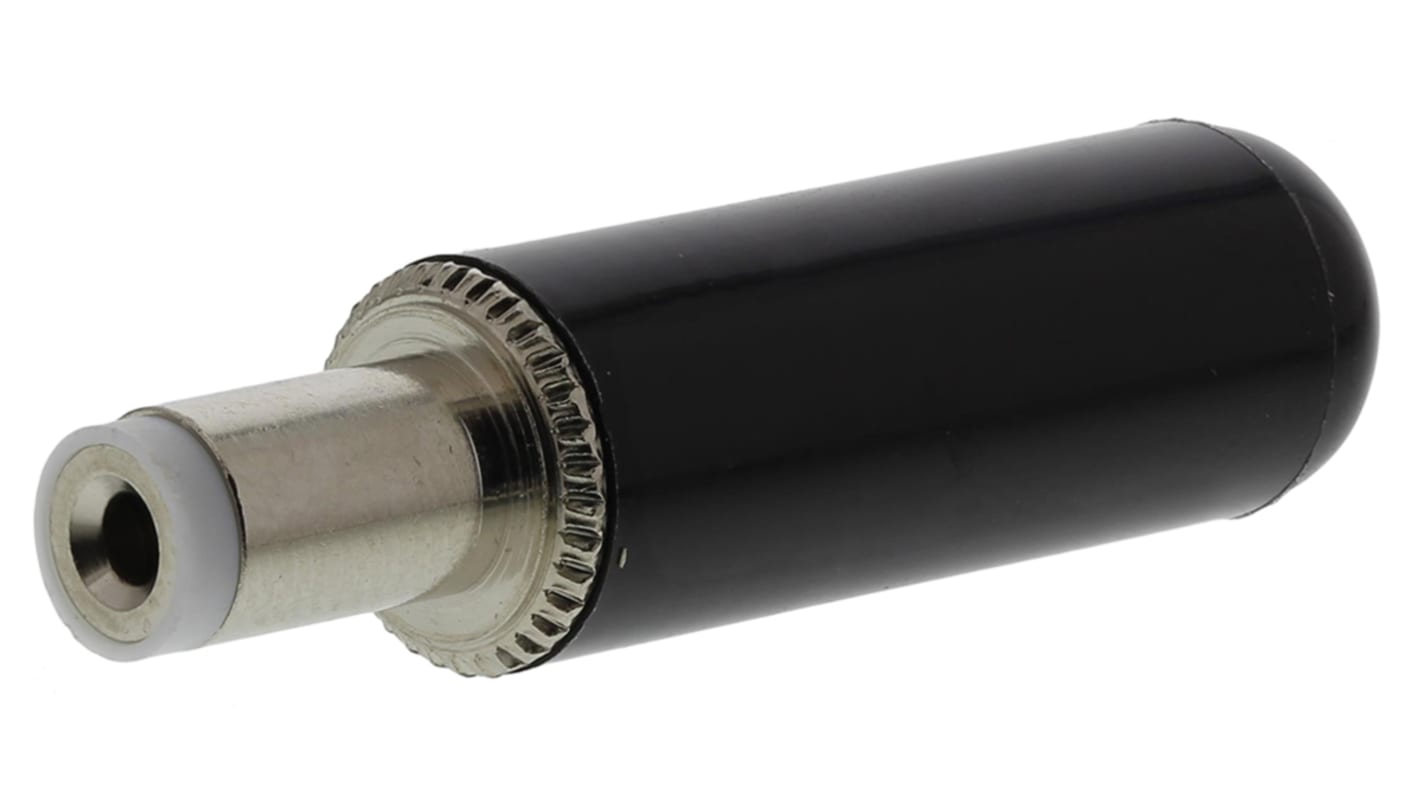

Switchcraft DC Power Plug Rated At 5A, Cable Mount, length 36.1mm, Tin

  • RS庫存編號 768-4406
  • 製造零件編號 S760-RS
  • 製造商 Switchcraft
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): US
產品詳細資訊

Switchcraft DC Power Plugs, 2.1mm and 2.5mm

Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket.

Features and Benefits

• Current rating 5A at 12VDC
• Over 10,000 mating cycles

Plugs & Sockets

Miniature plugs suitable for powering portable radios, calculators plus test and measurement instruments from a fixed, low-voltage d.c. source. Chassis mounting sockets for the 2.1mm plugs and adaptor leads terminated with 2.1mm and 2.5mm plugs and sockets are also available. Contacts are nickel/silver plated brass.Connector bodies are moulded in ABS plastic

規格
屬性
DC Power Connector Type DC Plug
Current Rating 5.0A
Inner Diameter 2.1mm
Body Orientation Straight
Length 36.1mm
Mounting Type Cable Mount
Contact Plating Tin
Contact Material Brass
本地庫存暫不足,貨期請向RS查詢
單價(不含稅) 個
TWD 81.00
(不含稅)
TWD 85.00
(含稅)
單位
Per unit
1 - 9
TWD81.00
10 +
TWD78.00
