MH Connectors SDB 9 Way Through Hole D-sub Connector Socket
- RS庫存編號:
- 720-3136
- 製造零件編號:
- SDB-09PFFP-SL8001
- 製造商:
- MH Connectors
7 現貨庫存，可於6工作日發貨。
已增加
單價（不含稅） 個
TWD267.00
(不含稅)
TWD280.35
(含稅)
| 單位 | Per unit |
| 1 - 24 | TWD267.00 |
| 25 - 74 | TWD259.00 |
| 75 - 199 | TWD250.00 |
| 200 - 399 | TWD244.00 |
| 400 + | TWD241.00 |
- RS庫存編號:
- 720-3136
- 製造零件編號:
- SDB-09PFFP-SL8001
- 製造商:
- MH Connectors
法例與合規
- COO (Country of Origin):
- CN
產品詳細資訊

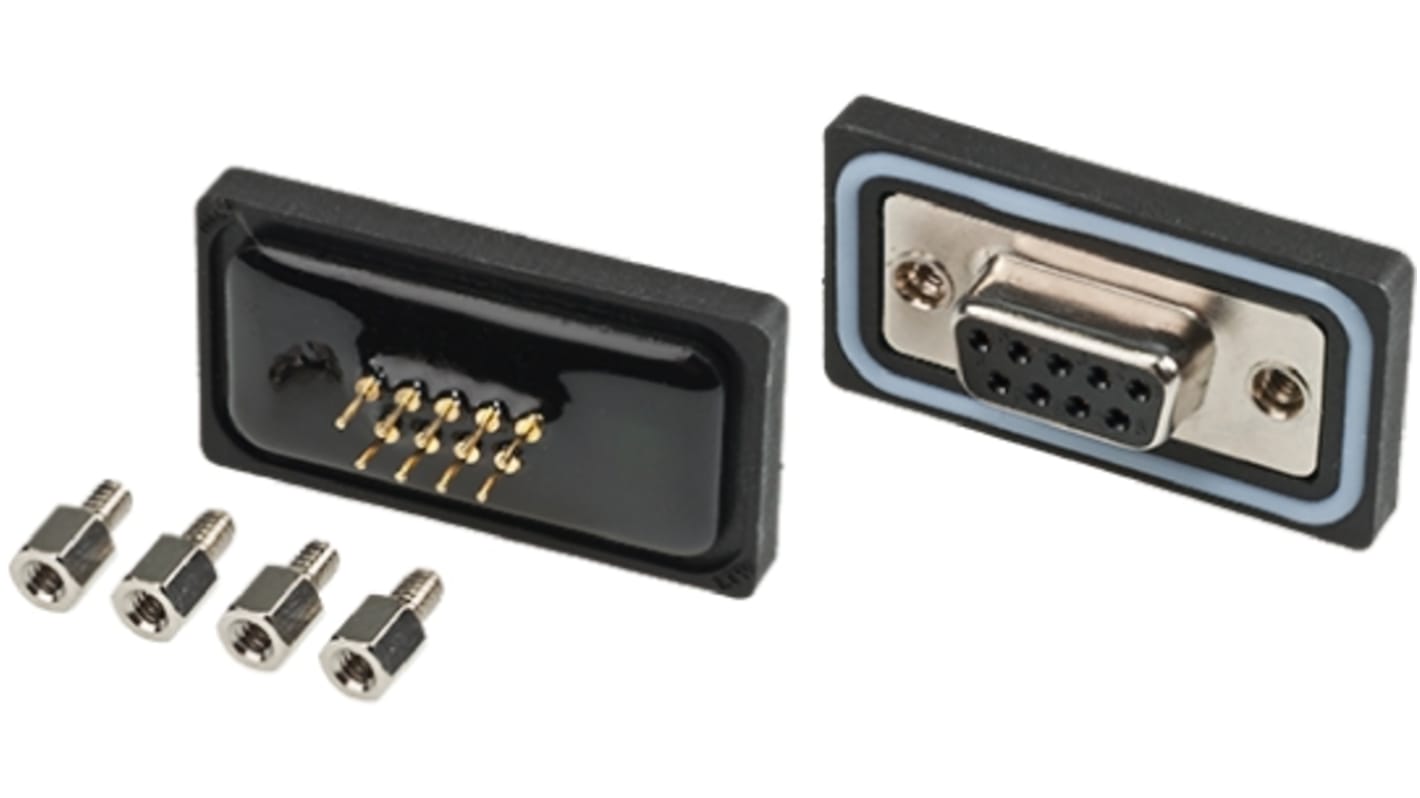

IP67 Sub-D Panel connectors, PCB solder
IP67 waterproof Sub-D connectors, with straight PCB terminations, for panel mount
Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness
Connectors are supplied with screwlocks, 5 and 6 mm lengths to accomodate different panel thickness
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Waterproof (IP67) 'D'
Suitable for military, industrial or commercial applications and computer interfacing etc.
規格
屬性 | 值 |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | PBT |
| Length | 39.4mm |
| Width | 8.25mm |
| Depth | 21.0mm |
| Series | SDB |
| Dimensions | 39.4 x 8.25 x 21mm |
| Contact Plating | Gold |
| Contact Material | Brass |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | +105°C |
