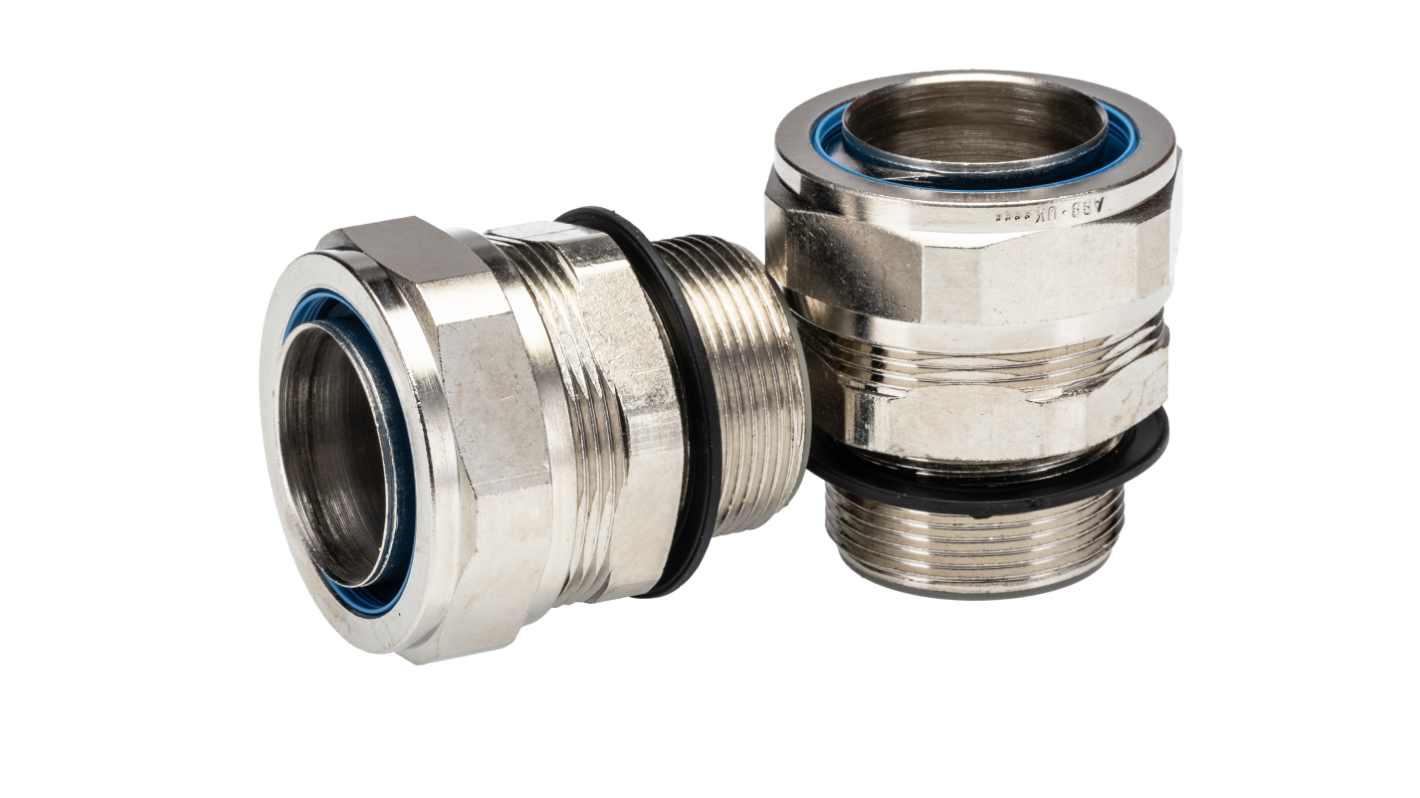

Adaptaflex Swivel, Conduit Fitting, 32mm Nominal Size, M32, Brass, Silver
- RS庫存編號:
- 400-8193
- 製造零件編號:
- 7TCA296020R0253 SP32/M32/M
- 製造商:
- Adaptaflex
44 現貨庫存，可於6工作日發貨。
已增加
單價（不含稅） 個 (每包:2個)
TWD732.00
(不含稅)
TWD768.60
(含稅)
| 單位 | Per unit | Per Pack* |
| 2 - 98 | TWD732.00 | TWD1,464.00 |
| 100 + | TWD695.50 | TWD1,391.00 |
| * 參考價格 | ||
- RS庫存編號:
- 400-8193
- 製造零件編號:
- 7TCA296020R0253 SP32/M32/M
- 製造商:
- Adaptaflex
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
IP54 & IP65 Straight Fittings
Type A - IP54 Straight fitting – Fixed External Thread
Has a fixed external thread and is for insertion into knockouts using a locknut (not included).
Type B - IP54 Straight Fitting – Swivel External Thread
Has a two part construction without seals. When it is inserted into an enclosure or knockout and fully tightened, the fittings will still swivel 360°. Please note however, that this design is still not intended to be used on applications that are constantly moving. It is still intended as a ’swivel to fit’ product only.
Type C - IP54 Smooth Entry Bush
For locking conduit into plain holes in enclosures.
Type M - IP65 Straight Swivel Fitting – External Thread
Has a three part construction with additional face seals that allow it to achieve an IP65 fitting. When it is inserted into an enclosure or knockout and fully tightened the fittings do not swivel at all, meaning it is a true ’swivel to fit’ product only.
Note
Only PG7 fittings are supplied with locknuts.
規格
屬性 | 值 |
|---|---|
| Nominal Size | 32mm |
| Fitting Type | Swivel |
| Thread Size | M32 |
| Material | Brass |
| Colour | Silver |
| IP Rating | IP65 |
| Finish | Nickel Plated |
| Standards Met | CE |
| Series | SP |
